| Usage: | Universal Testing Machine |
|---|---|
| Power: | Electronic |
| Brand Name: | OTS JUNYUAN |
| Warranty: | 12 Months |
| weight: | 150KG-170KG |
| Model Number: | JY-OTS-1043 |
| Place of Origin: | China (Mainland) |
| Sensor: | PT-100 Sensor |
| Chamber/ Oven: | SUS304 # stainless steel |
Quick Details
Specifications
Application

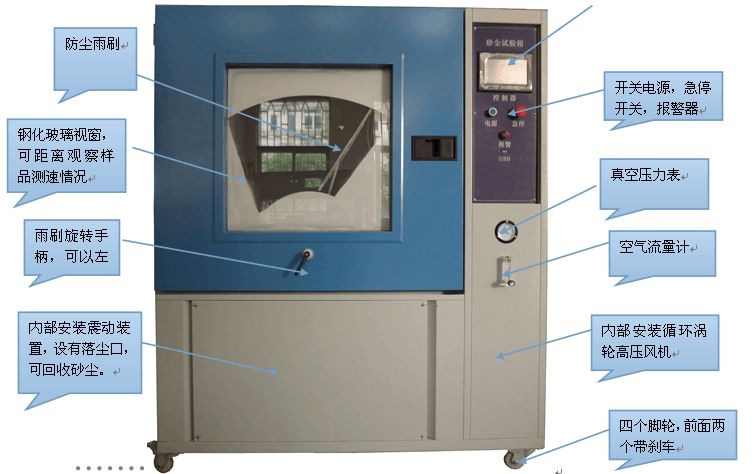

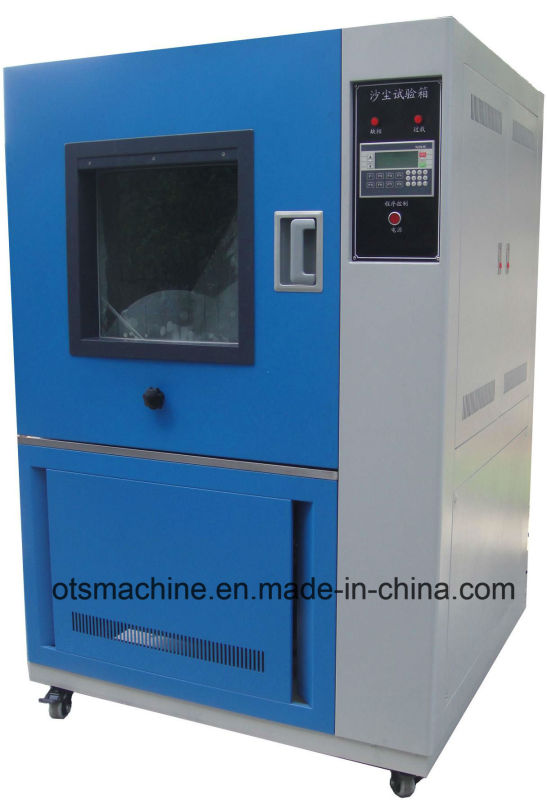

Dust and sand test chamber for dustproof testing is mainly and widely Used to test products sealing and dust resistance in labs of many Fields, like Electrical, electronic, automobile, motorcycle and sealing Products and parts manufacturing industries.
Dust proof chamber Is applicable to electronic electrician, home appliance, automotive, Instruments and meters, chemicals and spare parts in dustproof, sand & dust resistanct ability. It can be used for IP1X to IP8X test.
Parameter
1) mesh
Size: standard 200 rows with 75um diameter, if customer special
Requirement, we can equip the max diameter is 200um for 75 rows
2) wind speed: ≥7.5m/s
3) blowing dust concentration:1kg/m3
4) Standard machine will use talcum powder for test dust, if customer need To use other kind of dust, our company do not equip the dust test for The first time, customer need to equip the dust by himself.
Design StandardsGB2423.37-2006
GB4208-2008/IEC60529:2001 shell entrench level
GJB150.12-2009 dust test method(dustproof test)
GB7000-1-2007 chapter 9 requirement for shell entrench test
GB10485 dustproof test method and equivalent JIS,DIN,MIL test standard
Specification parameter
| Chamber capacity (L) | 500 | 800 | 1000 | 1500 | 2600 | |
Technique
|
Metal screen spacing | 50um | ||||
Metal wire Diameter |
75um | |||||
Talcum powder Dosage |
2Kg/m 2 ~4Kg/m 2 | |||||
| Dust fall form | 1 Decline the dust type freely: the adoption leaves the heart breeze Machine to blow the sand dust to the box to take over 1/5 make it Sink freely. | |||||
2. Blow the sand dust: the barometric type of bottom sprays the ash, Three file pressures are adjustable | ||||||
Chamber Size(cm) |
D | 80 | 90 | 100 | 100 | 120 |
| W | 80 | 90 | 100 | 100 | 120 | |
| H | 80 | 100 | 100 | 150 | 180 | |
| Material | Chamber/ Oven | SUS304 # stainless steel | ||||
| Machine shell | Cold rolled sheet antirust coating processing or #SUS304 Stainless steel (optional) | |||||
Control System |
Operator interface | the liquid crystal display color touch screen controller or touch-tone LCD contrller(optional) | ||||
| Operation mode | Program operation/ constant type operation | |||||
| Sensor | PT-100 Sensor | |||||
| Power supply | AC380V or 220V ±10%, 50HZ | |||||
| Standard | Two pieces of test material shelf, one instruction, and one dust screen | |||||
If you have new requirements, please contact theTechnical Section,Senior engineer to provide you with the most authoritative product testing scheme
Q1:Is your company a trading one or a factory?
A1:Our Factory produces goods directly. We have focused on the development and manufacturing of physical and environmental testing equipments for 18 years,besides,we have export experience of six years.
Q2:What about the quality of services and products?
A2:Berore shipping and delivering the goods,each product must be tested and tested for 100%.
Products using training: we would provide a training video of each product in order to show you how to install and operate.
All products meet the standsrds of ISO, ASTM, AATCC, BS, EN, DIN, JIS, GB and other requirements. Q3:how long is the delivery time? A3:Usually about 15 to 25 days.If we have stock, we can arrange the shipment within 3 days.
Kindly note that our producing and delivery time depend on specific item and the number of it.
Except for the special customization.
Q4:Distance transportation, the packaging is strong enough?
A4:Packing: the first layer uses bubble film,and the second layer uses vacuum Film.We take away the air so as to make a vacuum environment after Packing,which can avoid the problem of rust on the rough sea,and the Outer packing using standard wooden cases.
Q5: What is the mode of payment?
A5:Generally we use telegraphic transfer,inculding 50% deposit and 50% before shipment.Other payment methods can be negotiated.
Q6:how warranties and after-sales services?
A6:Our products have 18-month warranty.
Life-long Free technical support, be video through email.Besides, we can help you to repair your problem controller, even it's not from our factory Produce.
What you need to do is to send us the controller.
Outside the warranty period, professional after-sales service team will provide the perfect technical support, and help customers to solve problems When using our products, deal with guest problems and complaints, and in A professional and timely.
