| Type: | Filling Machine |
|---|---|
| Brand Name: | EBA |
| Packaging Material: | Plastic |
| Packaging Type: | Barrel |
| Application: | Beverage,Food |
| Condition: | New |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | ISO9001 CE |
| Weight: | Customized |
| Dimension(L*W*H): | Customized |
| Place of Origin: | China (Mainland) |
| Power: | Customized |
| Voltage: | 220V/380V |
| Driven Type: | Mechanical |
| Automatic Grade: | Automatic |
Quick Details
Specifications

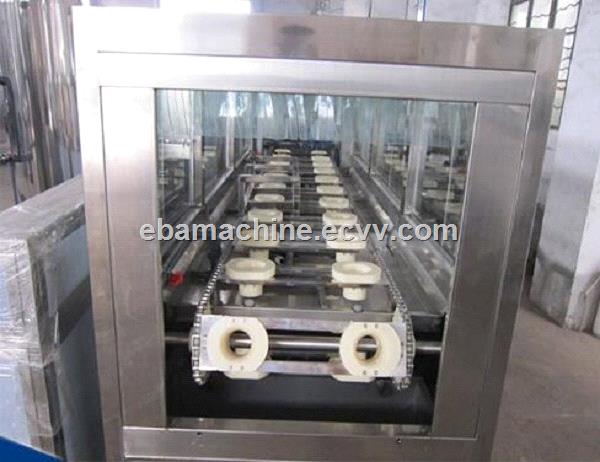

3-5Gallon Barrel Mineral Water Filling Machine
1.Brief Introduction:

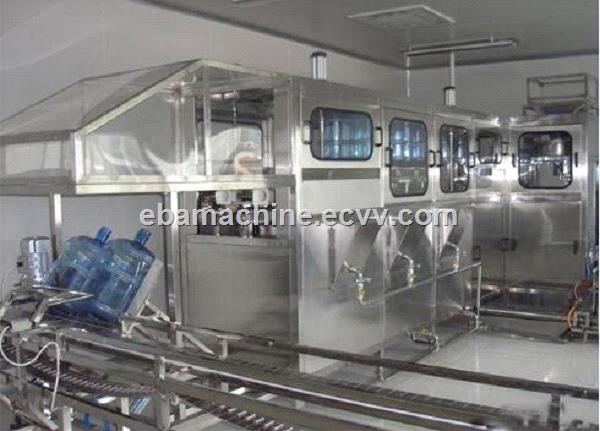

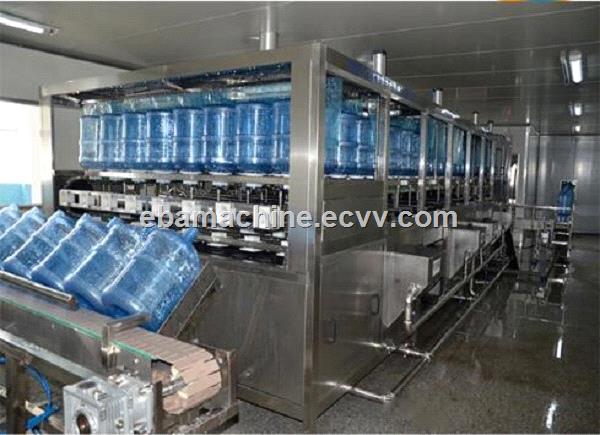

the unit includes the washer, dryer, filler and capper for the production of 3-5 gallon barrel water. the washing process include dirty remover inside and outside washing, disinfecting water can be used circularly. the whole washing, filling and sealing processes are controlled by PLC, the machine has safe device for interlock, signal and self-detection.
the whole unit is made of the stainless steel, meets the demands of food industry standard, with the feature of reasonable structure, easy operation, exact action, it's the ideal equipment for the barrel water.
2.Techincal parameters: Model Capacity production Power Overall dimensions QGF-120 120B/H 2.8kw 2500×900×1445 QGF-300 300B/H 3.3kw 3000×1350×1560 QGF-450 450B/H 4.5kw 3500×1400×1560 QGF-600 600B/H 5.7kw 4500×3000×1560
3.Performance features:
