Product Main

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Voltage: 220V-440V
Brand Name: NANYA
Condition: New
Power(W): 200KW
Model Number: ER5000A
Place of Origin: China (Mainland)
Processing Type: Pulp Molding Machine
Product Type: Egg Tray Machine

Specifications

NANYA ER5000A egg tray machine

Product Description

this type of automatic molding machine consists of a hydra-pulping system, a rotary type forming machine, a single layers drying line, a stacking and packing system and corollary equipment.


the raw material is recycled paper such as newspaper white paper, waste carton.

the applications are various, like egg tray, egg box, fruit tray, cup holders and so on.

It's totally green, high-efficiency, energy-saving, durable, and easy to operate

SPECIFICATIONS for 25 TON CRAWLER EXCAVATOR
                                               basic data
Model Type
ER5000-A
Capacity
4500~5000 pcs/hour
Workshop Requirement
800 m2

                                                            Consumption
Material consumption
300~350 kg/h
Water consumption
1.2~1.5ton/h
Electricity consumption
~200 kw
Worker required
5~6 persons

                                                         major equipment
Pulping system
3.4 m3 pulper
Forming system (rotary type)
Rotary type with 8 plates. Each for 5 pcs/time
Drying system
Single layers drying system
Stacking & packing system
Automatic counting
Remarks:

1. the Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 65g~70g).
2. Workshop size is for reference only and could be adjusted according to actual size of client's plant.
                                                                     Fuel Consumption(One Item Selectable)
Natural gas
80-115 m3/h
LPG
32~40M3/h
Diesel
65~95kg/h
Regard: You can choose one kind of fuel to dry the wet products.

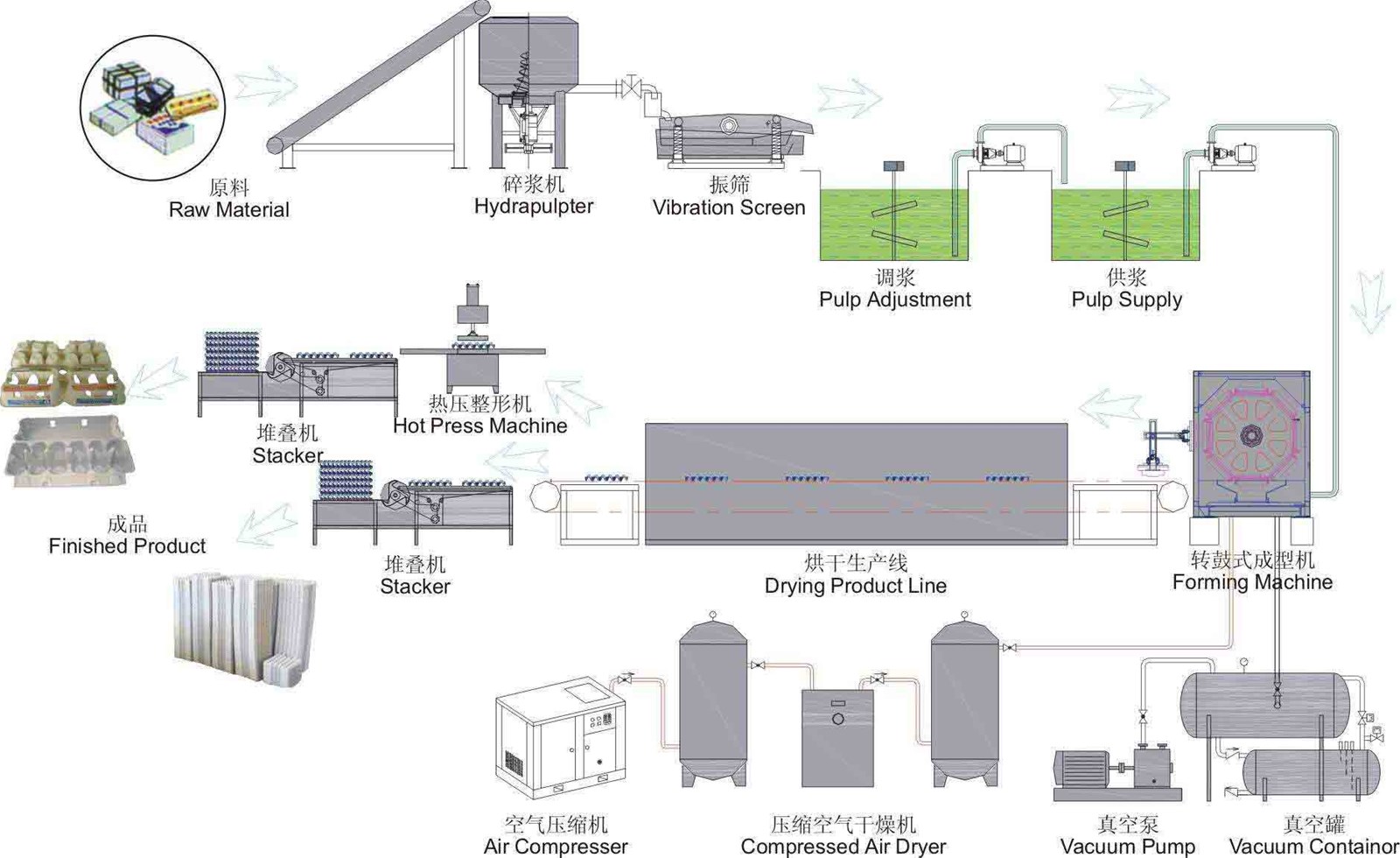

Process Chart

NANYA ER5000A egg tray machine


Detail for the machine

NANYA ER5000A egg tray machine

More detail, please mail me.

NANYA ER5000A egg tray machine
