| Type: | Multi-Function Packaging Machine |
|---|---|
| Brand Name: | EBA |
| Packaging Material: | Paper |
| Packaging Type: | Cartons |
| Application: | Beverage,Food |
| Function: | Gluing,Sealing,Wrapping |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE ISO9001 |
| Dimension(L*W*H): | L36258*W2582*H2115MM |
| Model Number: | EBA25 |
| Place of Origin: | China (Mainland) |
| Power: | 15kw |
| Voltage: | 220V/380V |
| Driven Type: | Pneumatic |
| Automatic Grade: | Automatic |
| Condition: | New |
| Weight: | 4000KG |
Quick Details
Specifications

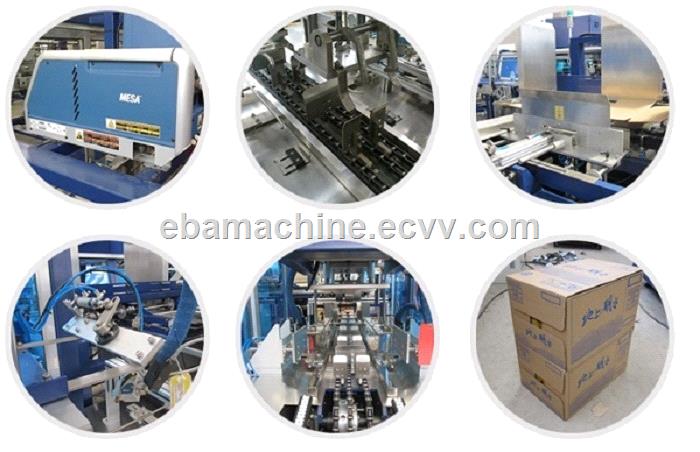

Hot Glue Carton Packing Machine
Advantages:
the equipment adopts PW positioning, PLC, automatic operation, the main rotation driven by imported motor, at all levels through the chain, sprocket rotation speed. Its high degree of automation, reliable control, easy adjustment, intelligent operation and other characteristics, can be widely used in the beer, beverage, chemical, food, pharmaceutical and other industries, can carry on various kinds of bottle jar two packaging, and supporting the use of automatic filling production line.
Technical Parameter
Product capacity |
20-25case/min |
Rating power |
15KW |
Used power supply |
380V,50Hz |
Controlling power supply |
24V DV |
Compressor air |
1500L/min,0.6-0.8MPA |
Hot melting glue solidify |
1.5-2S |
Machine weight |
4000KG |
Overall size |
3L6258*W2582*H2115MM |
Bottle entry conveyor size |
L3000*W620*1200MM |
Dimension |
Length 350-450 |
