| Dimensions: | 146*65*82mm |
|---|---|
| Accuracy Class: | 1.0 |
| Phase: | Single Phase |
| Display Type: | Digital Only |
| Brand Name: | Okaylight |
| Output Voltage: | 230V |
| Measuring Energy Range: | 0.23-3680W |
| Model Number: | PM80 |
| Place of Origin: | China (Mainland) |
| Material: | ABS |
| Currency: | USD,Pound,Euro,Paper money |
| Frequency: | 45-65Hz |
| Voltage display: | 190-276V |
| RESET button: | Clear data |
| Meter Type: | Plug in socket |
| LCD: | With green backlight |
Quick Details
Specifications

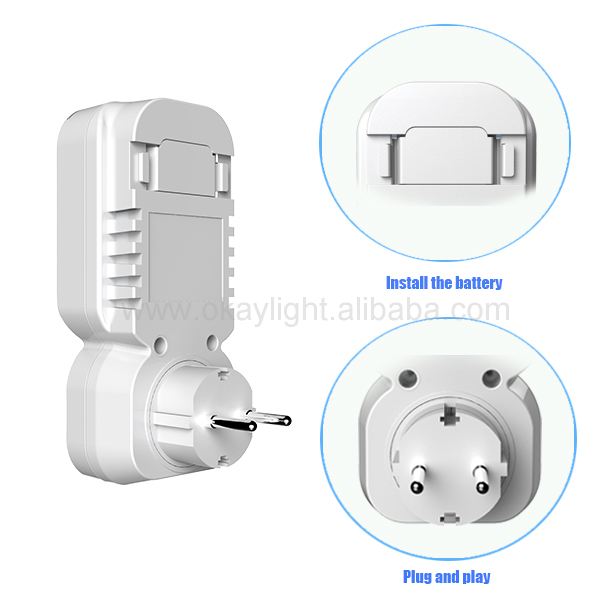

Energy Meter Power Meter Socket Watt Volt Voltage Home Electricity Monito
Features:
1. Large LCD display with green backlight
2. Energy measurement display3. Voltage (V) Current (A) Wattage (W)
4. Max. Loading record
5. Energy consumption display
6. Total energy consumption (kWh)
7. Accumulated operation time
8. Energy cost calculation with 4 kinds currency switchable
9. Instant Standby power check
10. Two tariffs setting and Clock display
11. Battery backup for user settings
12. Electric device consumption measurement
13. Work mode calculation
14. Standby mode calculation
15. Display of Voltage, Amperage, Power,Frequency, Energy, Cost, Work time,Currency
16. Overload alert, excessive usage alert
Energy Power Meter PM80 | |
Material |
ABS |
Current |
Max 16A |
Voltage |
190-240VAC, 50-60Hz |
Power |
Max 3680W resistive load |
Work Temperature |
-10-65deg |
IP Level |
/ |
Plug |
Universal |
Cell |
2*LR44(1.5V) or AG 13 (1.5V) |
Operation Life |
10 years |
Display |
Digital |
Usage |
Indoor |
Phase |
Single |
Certificate |
CE,RoHS,ISO9001:2008,ISO14001:2004 |
Theory |
Resistive |
Voltage Display&Accuracy |
190-276V, ±5V(1%) |
CurrentDisplay&Accuracy |
0.00-19.99A, ±0.002A (1%) |
Power Display&Accuracy |
1-3680W, ±1W (1%) |
Energy Display&Accuracy |
0.00-9999.99KWh, ±0.1KWh (1%) |
Frequency |
45-65Hz |
Power Factor |
0.70-1.00 |
Power Consumption |
0.5W |
Body Weight |
180.0g |
Measurement |
146*65*82mm |
Package:
All the LOGO label &Rating label can be free customizable
