Use: | Bathroom |
---|---|
Function: | Adjustable Thermostat,Overheat Protection |
Certification: | CE |
Installation: | Wall Mounted |
Heating Element: | Heating Wire |
Model Number: | 605 |
Brand Name: | Wyheater |
Place of Origin: | China (Mainland) |
Electric Heater Type: | Infrared Heater |
Type: | Electric Heater Parts |
Voltage: | 110/120/220/230/240V |
Material: | Nickel chrome resistance wire |
Weight: | g |
Insulation material: | Mgo Powder |
Shape: | customized |
Watts: | 100-800W |
Size: | 246x60,122x60,122x122,60x60 |
Quick Details
Specifications

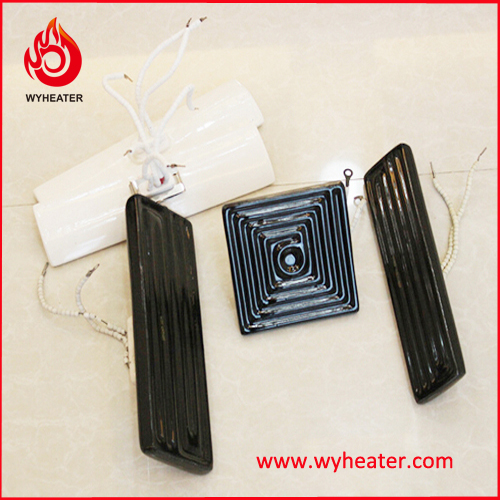

Ceramic Infrared Heaters are efficient, robust heaters which provide long wave infrared radiation. They are used in a diverse range of industrial processes such as heaters for thermoforming, and as heaters for paint curing, printing and drying. most plastics and many other materials absorb infrared wave best in this range. Ceramic infrared heating elements are also used very effectively in infrared outdoor heaters and infrared saunas, which makes the ceramic heater to be the most efficient infrared radiant emitter on the market.
Features:
1). Nickel chrome resistance wire(NiCr20/80)
2). K-type thermocouple mounted internally in center heater, J-type is also available.
3). Voltage: 110V 120V 220V 230V 240V standard
4). Useful wavelength range: 2-10 microns
5). Operating temperature is 300C to 800C (572F - 1472F)
6). Average Operating Life-up to 20,000 hrs depending on conditions.
7). Recommended radiation distance from heater is 100 mm to 250 mm.
8). Heating alone or together.
9). It is heated up to 800C, put in cold water repeatly for ten times and no cracking.
Application: Drying, Sauna, Vacuum forming, Solidify, Medical treatment sanitation, BGA rework station, Eelectron, Textile, Light industry, Chemical, Medicine, Food industry.
Features:
1). Nickel chrome resistance wire(NiCr20/80)
2). K-type thermocouple mounted internally in center heater, J-type is also available.
3). Voltage: 110V 120V 220V 230V 240V standard
4). Useful wavelength range: 2-10 microns
5). Operating temperature is 300C to 800C (572F - 1472F)
6). Average Operating Life-up to 20,000 hrs depending on conditions.
7). Recommended radiation distance from heater is 100 mm to 250 mm.
8). Heating alone or together.
9). It is heated up to 800C, put in cold water repeatly for ten times and no cracking.
Application: Drying, Sauna, Vacuum forming, Solidify, Medical treatment sanitation, BGA rework station, Eelectron, Textile, Light industry, Chemical, Medicine, Food industry.
