| Type: | Ball |
|---|---|
| Structure: | Thrust |
| Outside Diameter: | 0-170 mm |
| Bore Size: | 0-130 mm |
| Brand Name: | SKF NSK FBF |
| Structure: | thrust ball bearing |
| Type: | ball bearing |
| Place of Origin: | China (Mainland) |
| Number of Row: | Single Row |
| Seals Type: | Seal or Open |
| Precision Rating: | P5 P4 P2 |
| Model Number: | 51126 |
| Precision Rating: | P5 P4 P2 |
| Seals Type: | Open |
| Number of Row: | Single row |
| Precision bearing: | P0,P6,P5,P4,P2 |
| Material: | chrome steel-stainless steel-carbon steel-plastic-ceramic |
Quick Details
Specifications
High precision long life thrust roller bearing 51126 for machinery equipment
the roller of this type of bearing is Spherical shape, and the spherical raceway of the housing washer has self-aligned function. this type of bearing can support very big axial loads, meanwhile it can support certain radial loads. Oil lubrication is commonly used during work.Furthermore, this bearing has the self-aligning capability which is as good as spherical roller bearings.
this type of bearing is mainly used in hydroelectric generators, vertical motors, propeller axle of vessels, tower cranes, squeezing presses, etc.

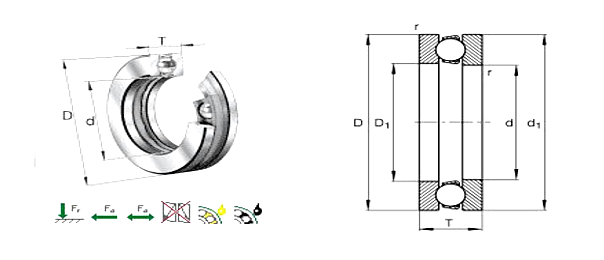

| Designation | Dimensions | ||
| D (mm) | D (mm) | B (mm) | |
| 53222 | 110 | 160 | 40.2 |
| 51322 M | 110 | 190 | 63.5 |
| 53322 M | 110 | 190 | 67.2 |
| 51422 M | 110 | 230 | 95 |
| 51124 | 120 | 155 | 25 |
| 51224 | 120 | 170 | 39 |
| 53224 | 120 | 170 | 40.8 |
| 51324 M | 120 | 210 | 70 |
| 53324 M | 120 | 210 | 74.1 |
| 51424 M | 120 | 250 | 102 |
| 51126 | 130 | 170 | 30 |
| 51226 | 130 | 190 | 45 |
| 53226 | 130 | 190 | 47.9 |
| 51326 M | 130 | 225 | 75 |
| 51426 M | 130 | 270 | 110 |
| 51128 | 140 | 180 | 31 |
| 51228 | 140 | 200 | 46 |
| 53228 | 140 | 200 | 48.6 |
| 51328 M | 140 | 240 | 80 |
| 51428 M | 140 | 280 | 112 |
| 51130 M | 150 | 190 | 31 |
| 51230 M | 150 | 215 | 50 |
| 51330 M | 150 | 250 | 80 |
| 51430 M | 150 | 300 | 120 |
| 51132 M | 160 | 200 | 31 |
| 51232 M | 160 | 225 | 51 |
| 51332 M | 160 | 270 | 87 |
| 51134 M | 170 | 215 | 34 |
| 51234 M | 170 | 240 | 55 |
| 51334 M | 170 | 280 | 87 |
| 51136 M | 180 | 225 | 34 |
| 51236 M | 180 | 250 | 56 |
| 51336 M | 180 | 300 | 95 |
| 51138 M | 190 | 240 | 37 |
| 51238 M | 190 | 270 | 62 |
| 51338 M | 190 | 320 | 105 |
| 51140 M | 200 | 250 | 37 |
| 51240 M | 200 | 280 | 62 |
| 51340 M | 200 | 340 | 110 |
| 51144 M | 220 | 270 | 37 |
| 51244 M | 220 | 300 | 63 |
| 51148 M | 240 | 300 | 45 |
| 51248 M | 240 | 340 | 78 |
| 51152 M | 260 | 320 | 45 |
| 51252 M | 260 | 360 | 79 |
| 51156 M | 280 | 350 | 53 |
| 51256 M | 280 | 380 | 80 |
| 51160 M | 300 | 380 | 62 |
| 51260 M | 300 | 420 | 95 |
| 51164 M | 320 | 400 | 63 |
| 51264 F | 320 | 440 | 95 |
| 51168 M | 340 | 420 | 64 |
| 51268 F | 340 | 460 | 96 |
| 51368 F | 340 | 540 | 160 |
| 59172 F | 360 | 440 | 48 |
| 51172 F | 360 | 440 | 65 |
| 51272 F | 360 | 500 | 110 |
| BD1B 634132 | 366 | 440 | 65 |
| 351793 | 380 | 460 | 36 |
| 59176 F | 380 | 460 | 48 |
