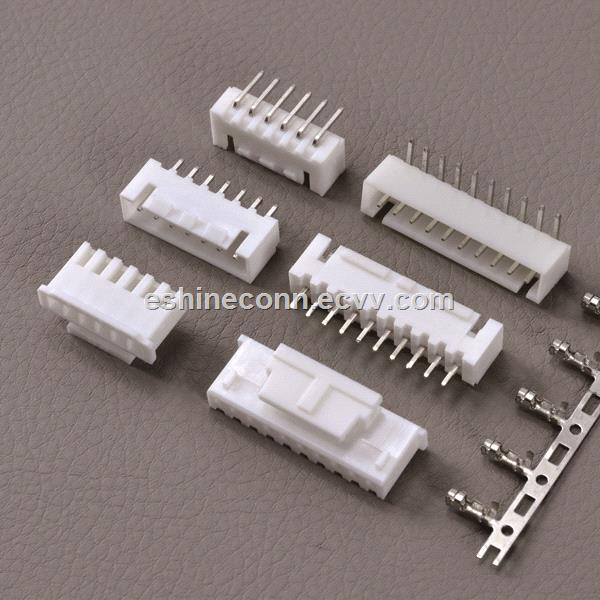

Box Shaped Shrouded Connectors with Lock Replace JST XH To Notebook PCHF UL Rohs



Name	JST XH 2.5mm connector	Application	Printed Circuit boards, wire to boards
Connector	XH disconnectable connector	Circuits/poles/pins	2~20
Pitch	2.5mm	Certificate	ROHS, UL,HF





High reliability , small, with mount height of 9.8mm;
with Secure locking device prevents accidental disconnection.

Original Folded beam contact;

Box shaped Shrouded header;

Header with a Boss and interchangeability;

Top,side and bottom entry allows the wire to be perpendicular or parallel to the PCB in any direction.

They can alternate JST, JWT,HR,TE Tyco AMP,Molex, Digikey, CVILUX, JAE ect famous parts.



Housing	Equivalent of JST XHP-(1~20)
Contact:	SXH-002T-P0.5 Tin plated, Reel package
Shrouded Header/wafer	Top entry: B(2~20)B-XH-A; S(2~16)B-XH-Aside Entry: S(2~20)B-XH-A-1,S(3,4,6)B-XH-SM4-TB
Number of Rows	Single
Current rating	3A AC,DC
Voltage rating	250V,AC,DC
Wire range	AWG22
Temperature range	-25℃to +85℃



Application:

Computers, Notebook PC,LCD, Digital camera, PAD, LED lamp, Robotics, PCB assemblies, Signal-jumpers; High-power solutions, Scanner, BT alarm button, taximeter, Fingerprint machine, flat colorful TV, Power source for electronic communication, Business machine, Telecommunications, Home appliances, Medical equipment, Cell phone, Security systems, Car, ATM Machines, Inkjet, MFP/LBP, Projector, RAILWAYPRODS, etc. Industrial.

If you can't find the part number Here, please contact us or send your drawing or part number.
