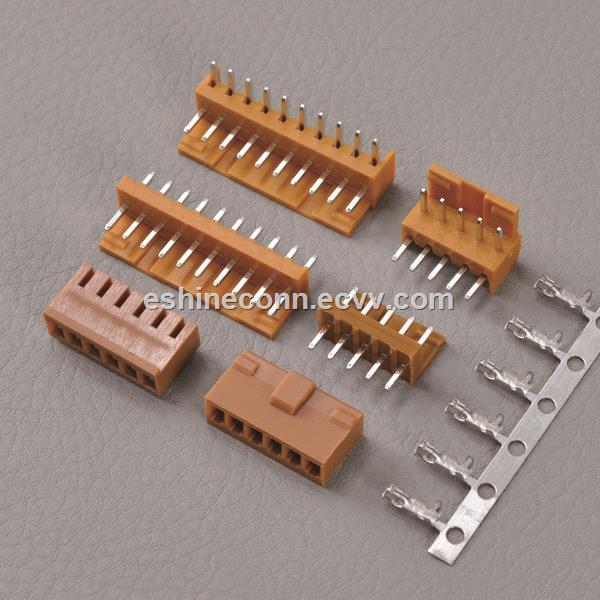

IL-G-14S-S3C2 socket housing header board to wire connector replace JAE



Name	JAE IL-S PCB-to-cable crimp type  connectors	Application	Signal,Power  Wire–to-Board
Connector	Socket, contact, pin header	Circuits/poles/pins	2~15
Contact Spacing	0.098", 2.5mm	Certificate	ROHS, UL,HF

1)     Low profile:10mm(0.394" ) total mate height for straight connection

2)     Friction locking mechanism

3)     Mismating-prevention structure

4)     Prevents solder-flux contamination

They can be replacing JAE(Japan Aviation Electronics), HRS, Molex, Digi-Key, TE AMP, TYCO JST, Yeonho, Civilux, Samtech ect famous parts.







Socket Housing	IL-G-(2-15)S-S3C2 socket Housing
Socket contact	IL-G-C2-SC-10000 socket Contact Tin-lead plated
Pin Header/wafer	S/A:IL-G-(2~15)P-S3T2-EF;R/A: IL-G-(2~15)P-S3L2-EF
Pitch Centerline	2.5mm(.098" )
Circuits/poles/pins	2-15
Number of Rows	Single
Current rating	3A AC,DC
Voltage rating	300V,AC,DC
Wire range	AWG22~24



Application:

Ideal for VTR, television, audio and other consumer electronic products. Additional applications include OA Equipment, computer, measuring equipment, telecommunications and vending Machine.

If you can't find the part number Here, please contact us or send your drawing or part number.





Eshine can also refer you to a Number of excellent harness assembly suppliers for your more specialized needs. Just advise info below or send your diagram.

Type connector:

Wire Specs:   AWG

UL Style:

Other end:

Assembly connector

Completer strip/Tin plate:

Semi Strip/Tin plate:



OEM orders are welcomed!
