| Rated Voltage: | 400VDC-630VDC |
|---|---|
| Capacitance: | 0.01-2.2uf |
| Application: | Power |

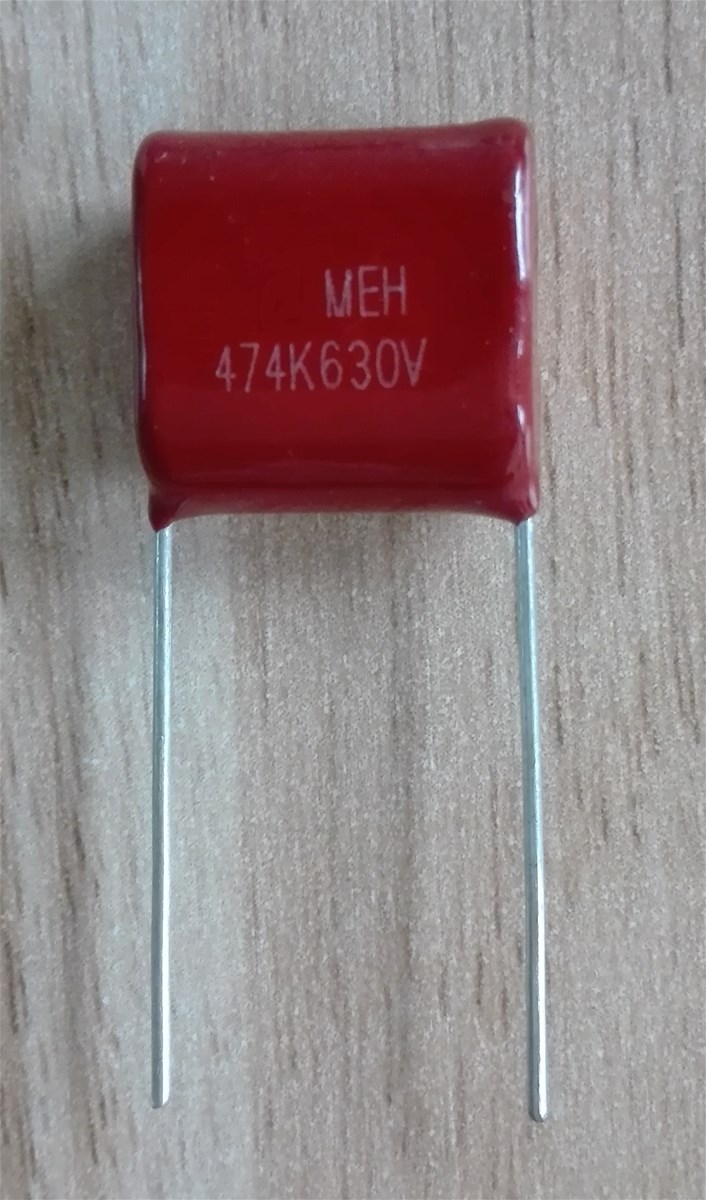

| Type: | Polyester Film Capacitor |
| Brand Name: | gjs |
| Operating Temperature: | -40-105 |
| Package Type: | Through Hole |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
| Typical application: | ||||
| as intermediate circuit capacitor for SMPS, Electronic Ballast, Inverter(i.E DC-link, DC filer and P.F.C) Note:MEH series Is only recommended to use in DC filter or DC-blocking circuit. It means the Voltage applied to the capacitors must be unidirectional ripple voltage. this Type is not suitable for used in AC circuit. | ||||
| Reference Standard | GB/T 7332(IEC60384-2) | ||||
| Climatic category | 40/105/21 | ||||
| Rated temperature | 85℃ | ||||
| Operating temperature range | -40℃-105℃85-105℃:derating factor 1.5% per℃for R.V(D.C) | ||||
| Rated voltage | 400VDC, 450VDC, 500VDC, 550VDC, 630VDC | ||||
| Capacitance range | 0.01-2.2uf | ||||
| Capacitance tolerance | ±5%(J),±10%(K) | ||||
| Voltage proof | 1.6*R.V(DC),2S(between terminals) | ||||
| Dissapation factor | ≤1%(1KHZ at 20-25℃) | ||||
| Insulation resistance | ≥9000MΩ,Cr≤0.33uf | ||||
| ≥3000s,Cr﹥0.33uf at 100±10VDC, 60S, 20-25℃ | |||||
