| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 12 months |
| Certification: | CE,ISO,SGS |
| Brand Name: | SCT |
| Condition: | New |
| Weight: | 1000kgs |
| Dimension(L*W*H): | 3200X1950X1950mm |
| Power(W): | 5.5kw |
| Voltage: | 380v 3PH |
| Model Number: | SCT-S1325 |
| Place of Origin: | China (Mainland) |
| Product name: | SCT Rotary Axis Precision Stone Marble Engraving CNC Router |
| Production Capacity: | 100sets/month |
| Use: | Marble |
| Type: | Stone Engraving Machine |
| Rotary Device: | Dia. 50mm-400mm |
| Application:: | Stone marble caring cnc router |
| Spindle power: | 5.5kw water cooling spindle |
| Working area: | 1300x2500x200mm |
| Control system: | DSP |
| Transimission: | Ball screw and square guide rail |
Quick Details
Specifications

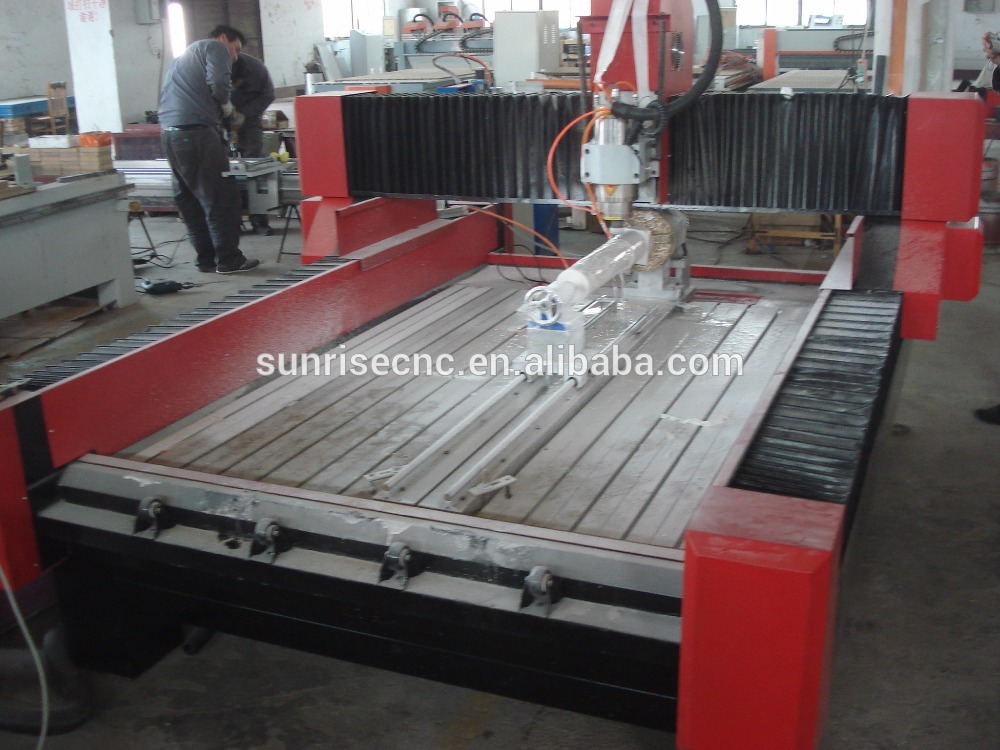

SCT Rotary Axis Precision Stone Marble Engraving CNC Router
Product Features of SCT 4 Axis CNC Router Stone Marble Carving Machine:
Product Features of SCT 4 Axis CNC Router Stone Marble Carving Machine:
SCT 4 Axis Stone CNC Router,enjoying a high reputation in the market, is popular with many customers from different countries.
SCT Stone CNC router machine is used for heavy weight of thetile,bluestone,granite and tombstones,also can process wood,
MDF or cooper,have the strong structures.
SCT 4 Axis Stone CNC Router have the features of
1. Three axises adopt imported linear orbit, two line sliding track, heavy loading, stable working, high precision, longlife time.
2. Whole seamless weld steel structure, wheels on CNC router table, not easy to distort, the table back lining is armor plate,
Good rigidity, the machine can bear 1 MT at least.
3. Constant power spindle and motor, strong cutting capacity, high efficiency,Well compatibility, compatible software CAD/CAM,
Such as Type3, Artcam, Castmate, Wentai, CorelDraw.
4. Double direction cutters cooling stem can prolong the life time of using.
5. Rotary Device
A rotary device includes a fixed body and a shaft. as 4th axis of CNC router, it could work instead of X or Y axis for column
Processing, such as chair jamb, stair jamb, roman column, pillar etc.
the column diameter it fixes could be from 10mm to 400mm, material could be wood, marble, foam etc.
SCT Stone CNC router machine is used for heavy weight of thetile,bluestone,granite and tombstones,also can process wood,
MDF or cooper,have the strong structures.
SCT 4 Axis Stone CNC Router have the features of
1. Three axises adopt imported linear orbit, two line sliding track, heavy loading, stable working, high precision, longlife time.
2. Whole seamless weld steel structure, wheels on CNC router table, not easy to distort, the table back lining is armor plate,
Good rigidity, the machine can bear 1 MT at least.
3. Constant power spindle and motor, strong cutting capacity, high efficiency,Well compatibility, compatible software CAD/CAM,
Such as Type3, Artcam, Castmate, Wentai, CorelDraw.
4. Double direction cutters cooling stem can prolong the life time of using.
5. Rotary Device
A rotary device includes a fixed body and a shaft. as 4th axis of CNC router, it could work instead of X or Y axis for column
Processing, such as chair jamb, stair jamb, roman column, pillar etc.
the column diameter it fixes could be from 10mm to 400mm, material could be wood, marble, foam etc.
Specifications of SCT 1325 CNC Router Stone Marble Carving Machine with Rotary Axis:
NO. |
Description |
Parameter |
1 |
X, Y, Z Working Area |
1300x2500x190mm |
2 |
X, Y, Z Traveling Positioning Accuracy |
±0.03/300mm |
3 |
X, Y, Z Repositioning Positioning Accuracy |
±0.05mm |
4 |
Lathe Structure |
Welded Structure |
5 |
X, Y Structure |
Gear Wheel Transmission, Shaft Linear Bearings |
6 |
Z Structure |
Ball Screw, Shaft Linear Bearings |
7 |
Max. Consume power |
6.5Kw |
8 |
Max. Speed |
0-32000mm/min |
9 |
Max. Working Speed |
0-20000mm/min |
10 |
Spindle Power Motor |
5.5kw water coolant Spindle |
11 |
Spindle Speed |
0-24000RPM |
12 |
Drive Mode |
Stepper Motor |
13 |
Working Voltage |
AC220V/380V, 50/60Hz |
14 |
Command |
G Code, *uoo, *mmg, *plt |
15 |
Operating System |
DSP Control System |
16 |
Interface |
USB |
17 |
Flash Memory |
128M |
18 |
Collet |
ER25 |
19 |
Software |
Type3, Ucancam, Artcam |
20 |
Running Circumstance |
Temperature: 0°C~45°C Relative humidity: 30%~75% |
21 |
Packing Size |
Separated: 3200X1950X1404mm Integrated: 3200X1950X1950mm |
22 |
Net Weight |
1100KG |
23 |
Gross Weight |
1350KG |
More pictures of 4 Axis Stone CNC Router:
Samples of SCT Heavy Duty CNC Router Stone Marble Carving Machine:
Samples of SCT Heavy Duty CNC Router Stone Marble Carving Machine:
Packaging and shipping:
Guarantee & after Sales Service
Guarantee & after Sales Service
1) the machine guarantee is 18 months.
2) 24 hours technical support by email or calling.
3) Friendly English verson manual and operation video CD disc.
Any colors, any logo acceptable, free sample service, leave an inquiry to know more about Price,
Packing, Shipping and Discount.
