| Brand Name: | Younio |
|---|---|
| Voltage: | no electric |
| Measuring Range: | 1 MPa |
| Accuracy Class: | R160 |
| Display Type: | Digital |
| Model Number: | LXSG-15E1/S |
| Place of Origin: | China (Mainland) |
| Material: | Brass Body |
| Type: | Multi Jet Dry Type |
| Size: | DN15~40 |
Quick Details
Specifications

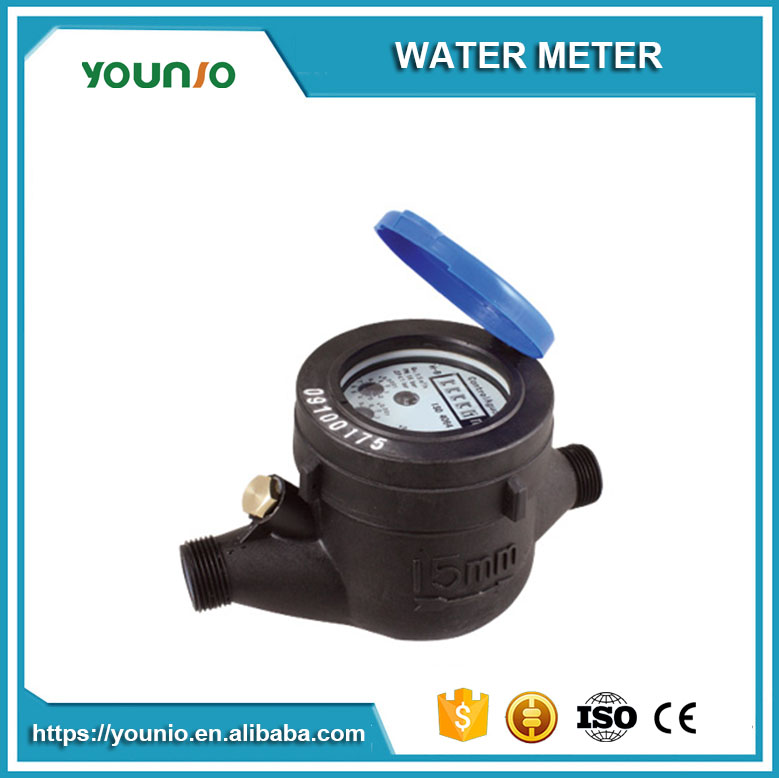

Younio Plastic Multi Jet Water Meter,Dry Type Baylan Water Meter
Feature:
- Dry-dial,magnetic drive,protected against external magnetic tampering;
- Vacuum sealed register,frost resistant,keeps clear reading for long time;
- Brass body,cast iron body or plastic body,optional;
- Internal or external adjusting device,optional;
- the meters conform to ISO4064 Standard Class B
Working condition:
Available for cold water 0~30℃ and hot water30℃~90℃
Water pressure≤1MPa
(PN:1.6MPa/16bar)
Accuracy:
from minimum flow-rate(qmin/q1)inclusive, to transitional flow-rate(qt/q2),exclusive:±5%
from transitional flow-rate (qt/q2)inclusive,to overload flow-rate(qs/q4),exclusive::±2%
