| Application: | Laser Cutting |
|---|---|
| Certification: | . |
| Brand Name: | Surmount |
| Graphic Format Supported: | . |
| Applicable Material: | . |
| Laser Type: | . |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

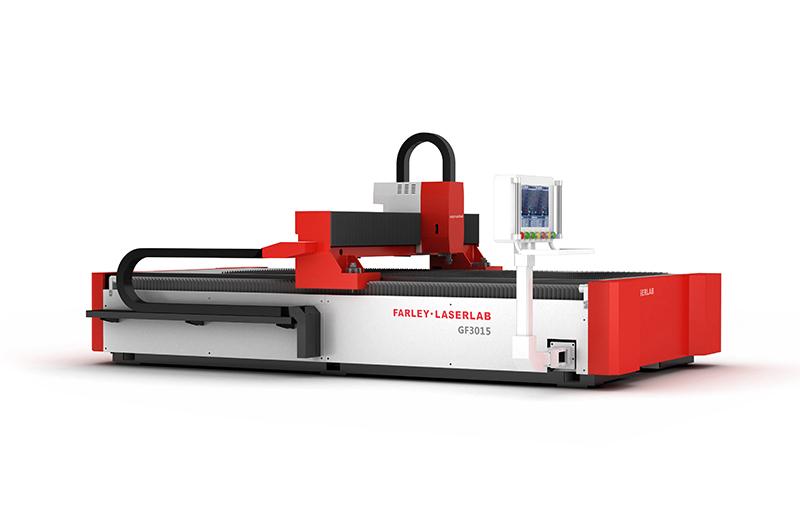

Fiber Laser Cutting Machine adopts gantry-motion structure, linear guide, screw drive, AC servo motor and drives, and vacuum system (both sides), etc. Suitable for cutting SS / CS / AL plate, copper alloy and other materials.
Model |
GF 3015 |
GF 3015 Plus |
GF4020 | |
Cutting Area (L × W mm) |
3000 × 1500 |
3000 × 1500 |
4000 × 2000 | |
X-axis |
Moving Speed (m/min) |
50 |
100 |
100 |
|
Stroke (mm) |
1500 |
1500 |
2000 |
|
Position Accuracy (mm) |
0.05 |
0.05 |
0.05 |
|
Repeatability Accuracy (mm) |
0.03 |
0.03 |
0.025 |
Y-axis |
Moving Speed (m/min) |
50 |
50 |
100 |
|
Stroke (mm) |
3000 |
3000 |
4000 |
|
Position Accuracy (mm) |
0.05 |
0.05 |
0.05 |
|
Repeatability Accuracy (mm) |
0.03 |
0.03 |
0.025 |
Z-axis |
Stroke (mm) |
100 |
100 |
100 |
CNC System |
Cypcut professional laser cutting system | |||
LCD |
19" LCD |
19" LCD |
24" LCD | |
Laser Model (W) |
Fiber laser IPG500 - 1000 |
Fiber laser IPG 500 - 2000 |
Fiber laser IPG 1000 - 3000 | |
Power Supply |
380V / 50HZ |
380V / 50HZ |
380V / 50HZ | |
Machine Weight (T) |
5 |
8 |
8 | |
Dimension (L × W × H mm) |
4400 × 2500 × 1800 |
8200× 3000 × 2000 |
8200× 3000 × 2000 | |
