| Gender: | Female |
|---|---|
| Application: | Automotive |
| Type: | Adapter |
| Brand Name: | Eshine,JST,AMP,Civilux,HR |
| Color: | White |
| Model Number: | ES3960 |
| Place of Origin: | China (Mainland) |
| Pitch: | 3.96mm |
| Poles: | 2~24 |
| Gender: | male and female |
| Pin finish: | Tin plated |
Quick Details
Specifications

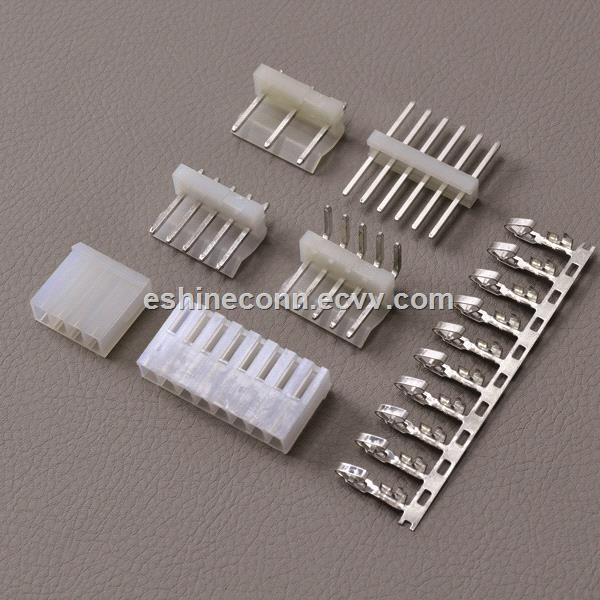

09-50-3201 KK 3.96MM Crimp Terminal Housing Friction Ramp 9 Circuitsfor Telecommunications Networking
Name |
MolexKK2139 2478 2578 Interconnect System |
Application |
Signal,Power Wire–to-Board |
Connector |
Housing, contact, pin header |
Circuits/poles/pins |
2~24 |
Pitch |
3.96mm |
Certificate |
ROHS, UL,HF |
Available in industry-standard 2.54 and 3.96mm Pitch sizes, this single-row, wire-to-board and board-to-board product family Is cost effective and versatile. KK RPC (Reflow Process Compatible) headers are Available in both signal and power families and can handle solder temperatures up to 260oC. Additionally, customizable KK headers allow for more polarization Options and design configurations, which makes the KK connector system ideal for a variety of industries.
1)Optional Trifurcon, three point contact, Dual cantilever terminal
Ideal for high-vibration environments with superior Electrical reliability
2)Friction locking Headers and receptacles
Ensure secure mating and prevent accidental disengagement
3)PCB retention pegs On headers
Ensure headers maintain position during solder processing and proper alignment to PCB
They can be replacing Molex, Digi-Key, TE AMP, TYCO JST, JAE, Hirose, Yeonho, Civilux, Samtech ect famous parts.
Crimp Housings |
Equal KK254 Crimp Housing 09-50-3(02~23)1 |
Crimp terminals |
2578,2478 Crimp, Reel |
PCB Header/wafer |
26-60-4(02~18)0 Vertical Friction Lock |
Pitch Centerline |
3.96mm |
Circuits/poles/pins |
2~24 |
Number of Rows |
Single |
Current rating |
4.0A AC,DC |
Voltage rating |
250V,AC,DC |
Wire range |
AWG22~24 |
Applications:
Control modules
Interior lighting
Stereos
Window defrosters
Automation equipment
Robotics
Blood warming bags
Heart monitors
Patient Monitor
Respirators
Mainframes
Printers
Scanners/multi-function machines
Workstations
Mainframes
Printers
Scanners/multi-function machines
Workstations
Switches
If you can't find the Part number here, please contact us or send your drawing or part number.
Eshine can also refer you to a Number of excellent harness assembly suppliers for your more specialized needs. Just advise info below or send your diagram.
Type connector:
Wire Specs: AWG
UL Style:
Other end:
Assembly connector
Completer strip/Tin plate:
Semi Strip/Tin plate:
OEM orders are welcomed!
