| Application: | Laser Cutting |
|---|---|
| Certification: | CE,ISO,SGS |
| Brand Name: | SCT |
| Graphic Format Supported: | AI,BMP,DST,DWG,DXF,DXP,LAS,PLT |
| Applicable Material: | Acrylic,Crytal,Glass,Leather,MDF,Paper,plastic,Plexiglax,Plywood,Rubber,Stone,Wood |
| Laser Type: | CO2 |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Model Number: | SCT-1290 |
| Place of Origin: | China (Mainland) |
| Control Software: | RUIDA |
| Cooling Mode: | Water Cooling |
| CNC or Not: | Yes |
| Cutting Speed: | 600mm/s |
| Cutting Area: | 1200x900mm |
| Cutting Thickness: | 0.1-12mm |
| Condition: | New |
| laser tube: | 80W |
| working table: | Aluminun alloy |
| cooling system: | Water chiller |
| software: | ruida |
| red pointer: | included |
| Air pump: | included |
| up-down working table: | optional |
| Power: | 220V, 50Hz |
| Reposition Accuracy: | 0.01mm |
Quick Details
Specifications
Laser engraving/ Cutting
Machine SCT-1290
Features
1. Two table sizes Including 1200X800mm, 1200X900mm are available for option.
2. this laser machine is equipped with a 80W laser tube.
3. It adopts the newly developed digital control software.
4. CO2 glass inner cavity sealing type laser and continuous circular water Cooling system are utilized.
5. the imported liner guide rail and high speed stepping motor, as well as Integral steel frame structure are used to ensure the high precision and great Stability of this laser flat cutting machine.
6. the machine is ideal for cutting large area materials and pieces.
Technical parameters:
5) Cutting speed: 18,000mm
6) Cutting thickness: 0.1-12mm
7) Reposition Accuracy: 0.01mm
8) Support image form: AI, Bmp, Plt, Dxf
9) Minimum characters size: English: 1.5mm
10) Power: 220V, 50Hz
11) Total power:<800W
12)Certification: CE,

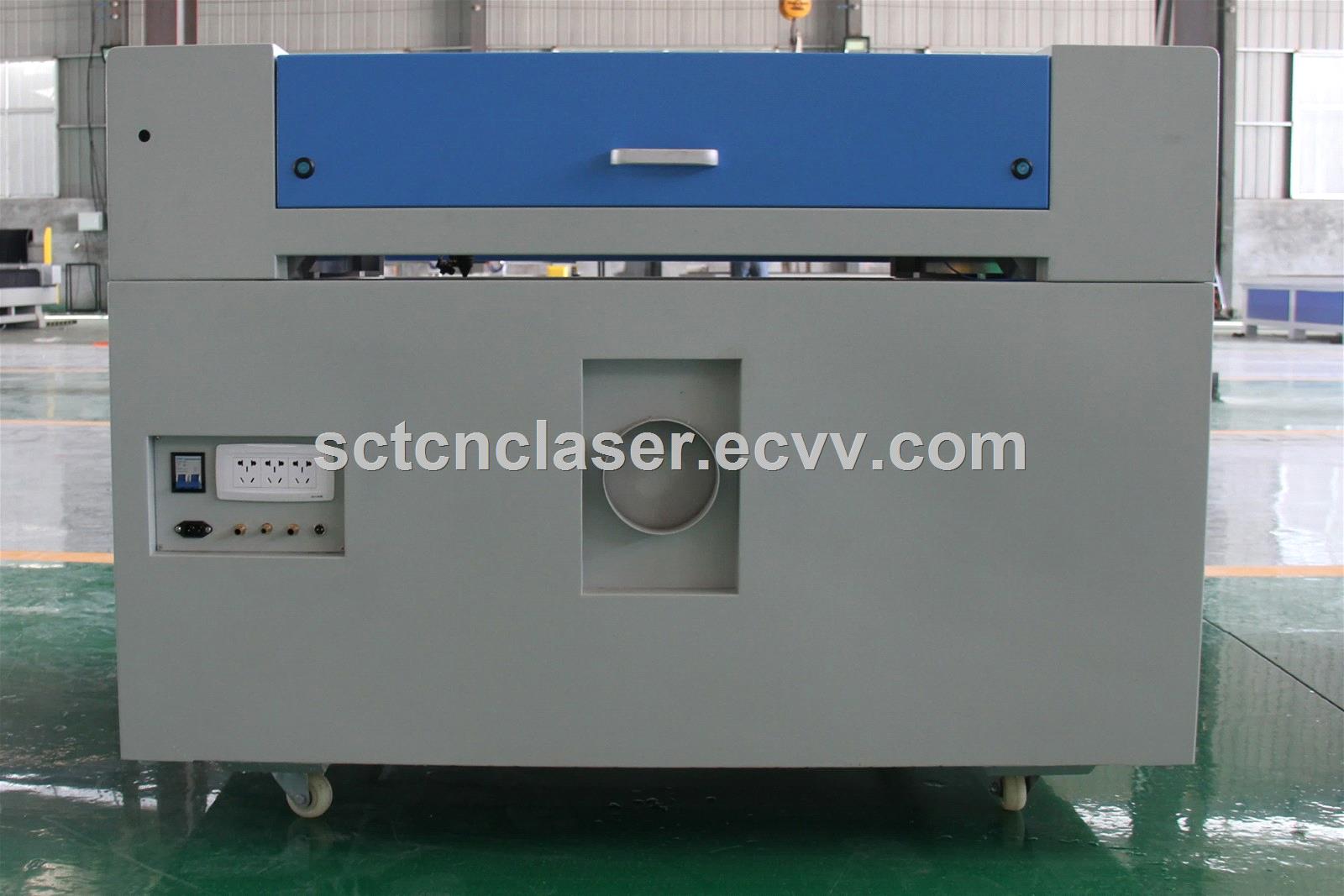

Machine's pictures:
Samples pictures:
Features
1. Two table sizes Including 1200X800mm, 1200X900mm are available for option.
2. this laser machine is equipped with a 80W laser tube.
3. It adopts the newly developed digital control software.
4. CO2 glass inner cavity sealing type laser and continuous circular water Cooling system are utilized.
5. the imported liner guide rail and high speed stepping motor, as well as Integral steel frame structure are used to ensure the high precision and great Stability of this laser flat cutting machine.
6. the machine is ideal for cutting large area materials and pieces.
Technical parameters:
1) Size of packing: 1850X1450X1350mm
2) Engraving area: 1200 x900mm
3) Laser power: 80W
5) Cutting speed: 18,000mm
6) Cutting thickness: 0.1-12mm
7) Reposition Accuracy: 0.01mm
8) Support image form: AI, Bmp, Plt, Dxf
9) Minimum characters size: English: 1.5mm
10) Power: 220V, 50Hz
11) Total power:<800W
12)Certification: CE,
Machine's pictures:
Samples pictures:
