| Use: | Truck Trailer |
|---|---|
| Brand Name: | LIANGXIANG |
| Max Payload: | 60T |
| Size: | 13500x2500x1600mm,optional |
| Material: | Steel |
| Use: | TRANSPORT CONTAINER |
| Model Number: | LX17704 |
| Place of Origin: | China (Mainland) |
| OEM No.: | Optional |
| Certification: | |
| Type: | Semi-Trailer |
| Axle Brand: | 13TON Axle FUWA Brand |
| King pin: | 2"(50mm)or3.5"(90mm) |
| Landing Gear: | Standard 28Ton |
| Tire: | 12.00R20 (11.00R20 optional) |
Quick Details
Specifications

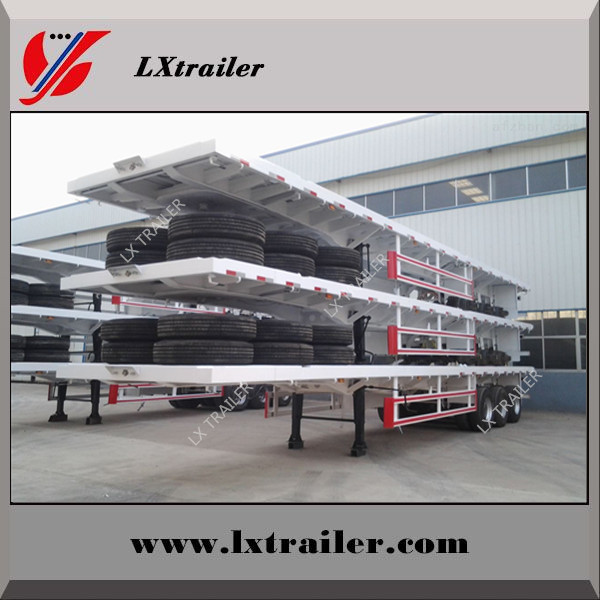

Good Condition 40 Feet Container Trailer Price transport container trailer
Overall Dimension(mm) |
12500x2500x1600 |
Loading Capacity(kg) |
50000 |
Chassis |
Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 20mm, width140mm; Middle flange 14mm; Bottom flange 20mm, width 140mm. |
Axle |
FUWA or BPW, 3 units |
Suspension |
Chinese mechanical 3-axle suspension |
Kingpin |
JOST brand, 2" or 3.5" |
Landing Gear |
JOST brand two-speed, manual operating, heavy duty landing gear |
Tire |
12.00R20(Option: 12.00-20, 11.00-20, 11.00R20, 12R22.5) |
Brake System |
WABCO RE6 relay valve; T30/30 spring brake chamber; 40L air tanks; with ABS |
Accessories |
One standard tool box, one spare tire carrier |
