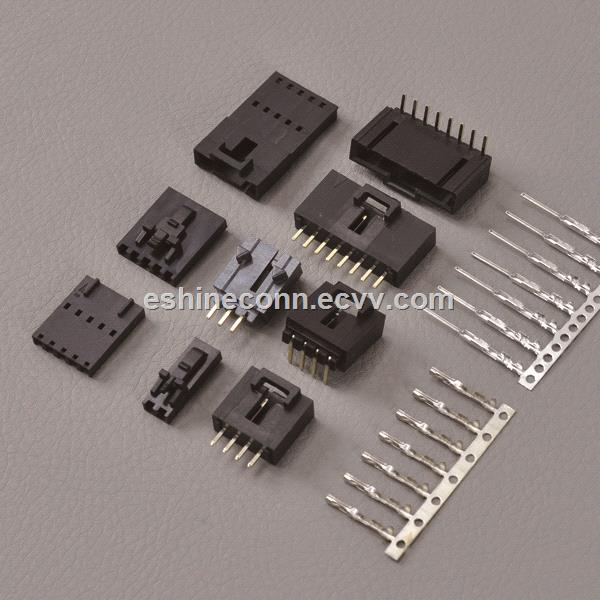

Alternate Tyco AMPMODU Wire to Board Connectors Socket, Terminal, Header for Printed Circuit Board, 0.1 inch pitch



Name	Molex SL connectors	Application	Wire to wire, Wire–to-Board
Connector	Molex SL wire-to-board	Circuits/poles/pins	2~12
Pitch	2.54mm	Certificate	ROHS, UL,HF

Positive-lock mating interface

Ensures secure retention with Receptacles in high-vibration environments

Low-profile, stackable housing, vertical and right-angle headers

Provides design flexibility with or without panel mounting

Tape-and-reel packaging available with optional pick-and-place vacuum caps

Allows for use of more highly Automated termination processes.
Protects SMT headers during shipping/handling
Enables the use of an automated vacuum-pick and -place machine for high-speed Processing and accurate placement on PCB





Crimp Housing	Alternative Molex SL crimp Housing,AMP104257-(1~9)
Crimp terminal	Tin plate:0016020069, gold Plate:0016020074
Mates with parts	, , ,, , ,,
Pitch Centerline	2.54mm
Circuits/poles/pins	2~12
Number of Rows	Single
Current rating	3A AC,DC
Voltage rating	250V,AC,DC
Wire range	AWG22~26



Usage range:

Commercial: Sound Systems

Consumer: Computer peripherals, Modems, printers, scanner

Automotive: Interior lighting, Sound systems, steering, Air bag sensors

Data/communications: Disk drives

Industrial: Robotics

Medical: measuring equipment, Surgical systems, front panel displays, dental equipment and Networking field etc.



Air bag sensors

Interior lighting

Sound systems

Steering

Sound systems

Computer Peripherals

Copiers

HVAC equipment

Modems

Printers

Scanner

Disk drives

Robotics

Analytical laboratory equipment

Front panel displays on dental equipment

Measuring equipment

Patient Monitors

Surgical systems

1U rack box

Panel displays on mainframes



If you can't find the part number Here, please contact us or send your drawing or part number.





Eshine can also refer you to a Number of excellent harness assembly suppliers for your more specialized needs. Just advise info below or send your diagram.

Type connector:

Wire Specs:   AWG

UL Style:

Other end:

Assembly connector

Completer strip/Tin plate:

Semi Strip/Tin plate:



OEM orders are welcomed!
