Features:

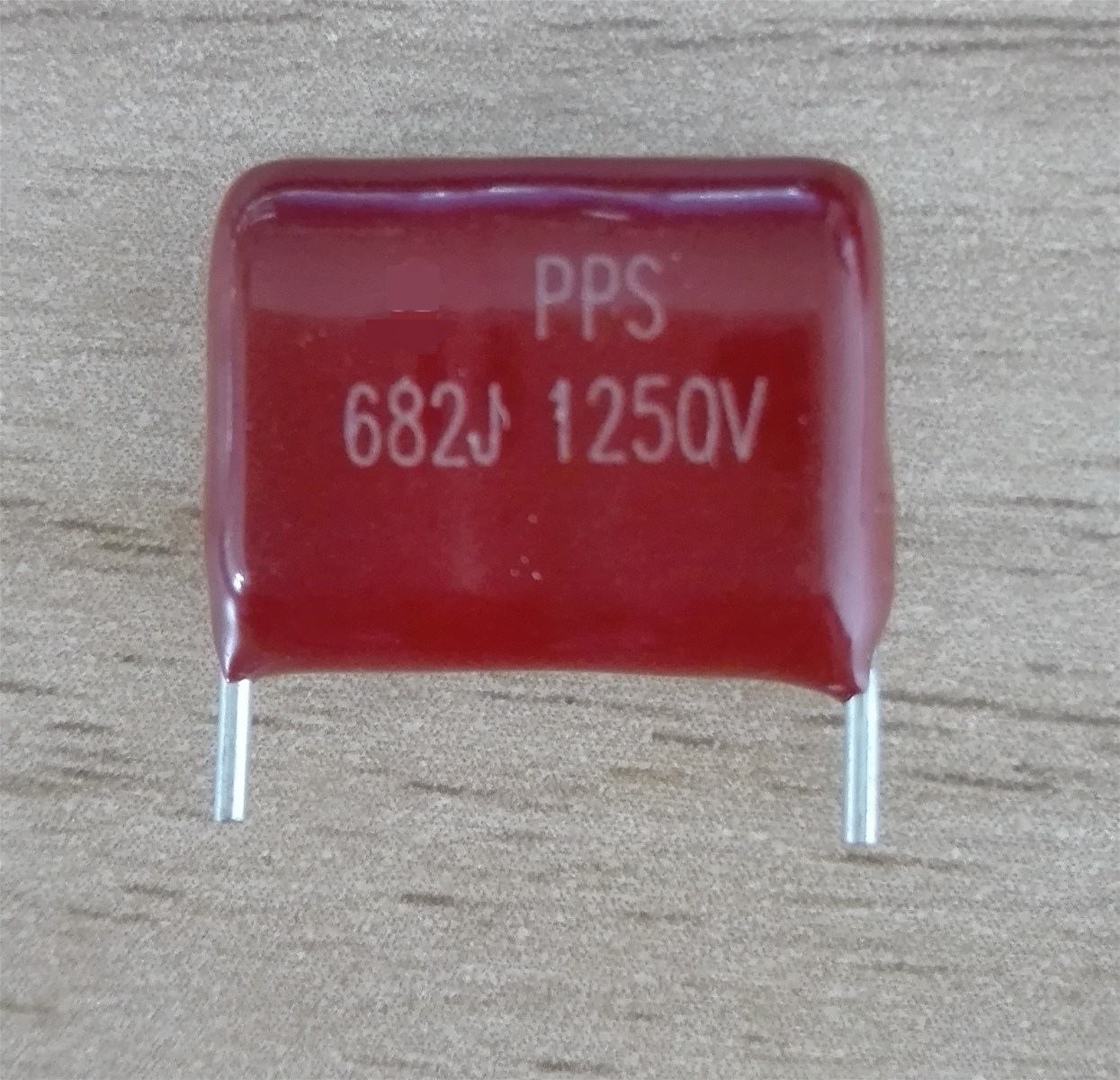

Metallized polypropylene film, series construction;
Low loss at high frequency
Small temperature rise
Flame retardent epoxy powder coating
Typical Application:
Applied in high frequency, high voltage, DC, AC and pulse circuits. S correction circuits in TV sets and display devices



Reference Standard	GB/T 10190(IEC60384-16)
Climatic category	40/105/56
Rated temperature	85℃
Operating temperature range	-40℃-105℃                                                                               85-105℃:derating Factor 1.25% per℃for UR(D.C)                    75-105℃:derating factor 1.35% per℃for UR(A.C)
Rated voltage	630VDC,800VDC, 1000VDC,1200VDC,1600VDC,2000VDC,2500VDC
Capacitance range	0.0047-0.1uf(DC)
Capacitance tolerance	±5%(J),±10%(K)
Voltage proof	1.6*UR, 2S
Dissapation factor	≤0.1%(1KHZ at 20-25℃)
Insulation resistance(20℃,100V,1min)	≥50000MΩ, Cr≤0.33uf;
	≥15000MΩ,Cr≤0.33uf(20-25℃,100VDC,1min)
