| Rated Voltage: | 50-100v |
|---|---|
| Capacitance: | 0.001-1.0uf |
| Application: | Automotive |

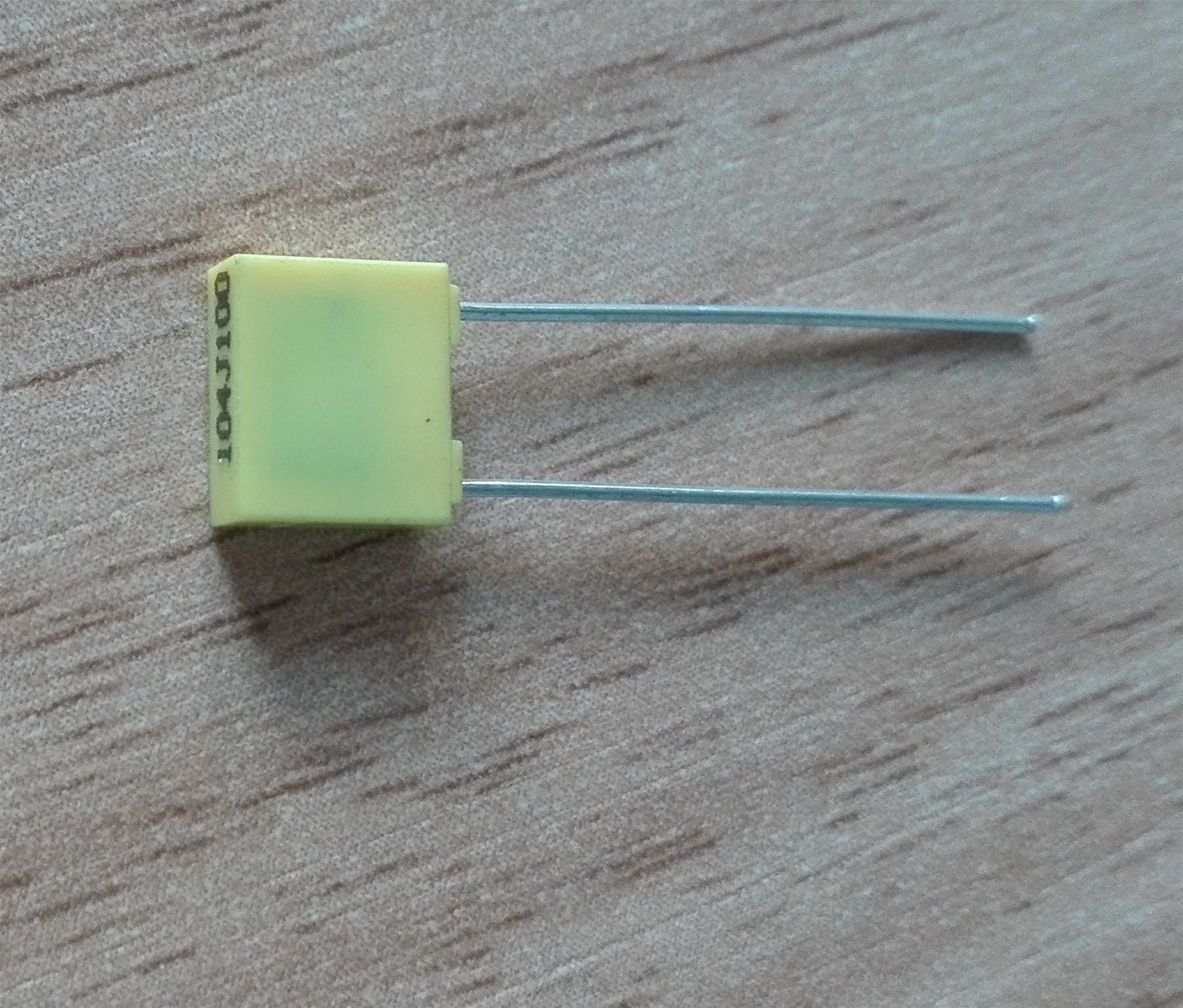

| Type: | Polyester Film Capacitor |
| Brand Name: | gjs |
| Operating Temperature: | -40-105 |
| Package Type: | Through Hole |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
| Features: | ||||
| Metallized polyester film,non-inductive wound construction; | ||||
| Wide capacitance range,small size and light weight | ||||
| Excellent self-healing property | ||||
| Plastic case,flame retardant epoxy resin sealing (UL94V-0) | ||||
| Typical Application: | ||||
Usually used for blocking, coupling and decoupling, by-pass,filter circuit. Suitable for pulse, timing, logic and oscillator circuits | ||||
| Reference Standard | GB/T 7332(IEC60384-2) | ||||
| Climatic category | 40/105/21 | ||||
| Rated temperature | 85 | ||||
| Operating temperature range | -40-10585-105:derating factor 1.5% perfor R.V(D.C) | ||||
| Rated voltage | 50VDC, 63VDC, 100VDC | ||||
| Capacitance range | 0.001-1uf | ||||
| Capacitance tolerance | 5%(J),10%(K) | ||||
| Voltage proof | 1.4*R.V(DC),2S(between terminals) | ||||
| Dissapation factor | 1%(1KHZ at 20-25) | ||||
| Insulation resistance | 10000M,Cr0.33uf | ||||
| 3000Muf,Cr0.33uf | |||||
