| Brand Name: | WAHT |
|---|---|
| Temperature of Media: | Low Temperature |
| Material: | Casting |
| Pressure: | Low Pressure |
| Standard or Nonstandard: | Standard |
| Place of Origin: | China (Mainland) |
| Media: | Water |
| Power: | Hydraulic |
| Structure: | Gate |
Quick Details
Specifications
| Design and Manufacture | Face to Face | Flange End | |||||||||
| DIN3352 | DIN3202 F4 | DIN3252 | |||||||||

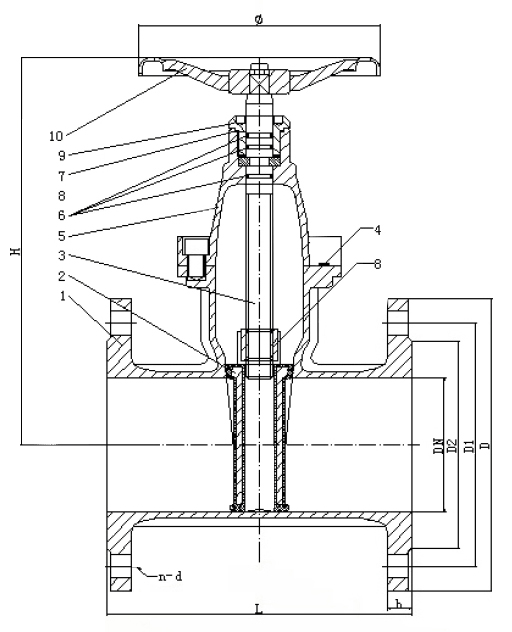

| Main parts and materials | |||||||||||
| No. | Parts Name | Material | |||||||||
| 1 | Valve Body | Ductile Iron | |||||||||
| 2 | Disc | Ductile Iron+EPDM | |||||||||
| 3 | Stem | Stainless Steel | |||||||||
| 4 | Bonnet Gasekt | EPDM . | |||||||||
| 5 | Bonnet | Ductile Iron | |||||||||
| 6 | Sealing Ring | Silica Gal | |||||||||
| 7 | O Ring | Silica Gal | |||||||||
| 8 | Stem Nut | Brass | |||||||||
| 9 | Holding Ring | Brass | |||||||||
| 10 | Handwheel | Ductile Iron | |||||||||
| Outline and connecting measurement | |||||||||||
| Type | DN(mm) | L | D | D1 | D2 | b-f | Z× Фd | ||||
| PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | ||||
| Z45X-10/16 | 50 | 150 | 165 | 125 | 99 | 19-3 | 4-Φ19 | ||||
| 65 | 170 | 185 | 145 | 118 | 19-3 | 4-Φ19 | |||||
| 80 | 180 | 200 | 160 | 132 | 19-3 | 4-Φ19 | 8-Φ19 | ||||
| 100 | 190 | 220 | 180 | 156 | 19-3 | 8-Φ19 | |||||
| 125 | 200 | 250 | 210 | 184 | 19-3 | 8-Φ19 | |||||
| 150 | 210 | 285 | 240 | 211 | 19-3 | 8-Φ23 | |||||
| 200 | 230 | 340 | 295 | 266 | 20-3 | 8-Φ23 | 12-Φ23 | ||||
| 250 | 250 | 405 | 350 | 355 | 319 | 22-3 | 12-Φ23 | 12-Φ28 | |||
| 300 | 270 | 460 | 400 | 410 | 370 | 24.5-4 | 12-Φ23 | 12-Φ28 | |||
| 350 | 290 | 505 | 520 | 460 | 470 | 430 | 438 | 27-4 | 16-Φ23 | 16-Φ28 | |
| 400 | 310 | 565 | 580 | 515 | 525 | 482 | 490 | 29-4 | 16-Φ27 | 16-Φ30 | |
| 450 | 330 | 615 | 640 | 565 | 585 | 532 | 550 | 30-4 | 20-Φ26 | 20-Φ30 | |
| 500 | 350 | 670 | 715 | 620 | 650 | 585 | 610 | 33-4 | 20-Φ27 | 20-Φ33 | |
| 600 | 390 | 780 | 840 | 725 | 770 | 685 | 725 | 37-5 | 20-Φ30 | 20-Φ36 | |
