| Insulation Material: | PVC |
|---|---|
| Conductor Material: | Copper |
| Application: | Electronics |
| Type: | Insulated |
| Brand Name: | Relico Wire&Cable |
| Model Number: | UL1007 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

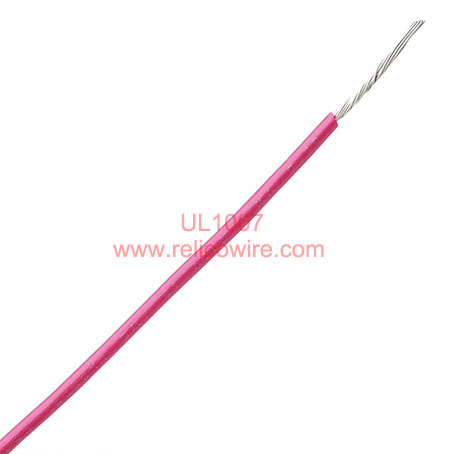

UL1007 PVC Insulated Single Conductor Electrical Wire (300V)
Conductor |
Insulation |
Electric Resistance |
Package | |||
AWG |
Conductor Construction |
Conductor Diameter |
Thickness |
Wire Diameter |
(Ω/KM) |
M/Roll |
30 |
7*0.10 |
0.31 |
0.38 |
1.07 |
319.26 |
610 |
28 |
7*0.127 |
0.39 |
0.38 |
1.15 |
197.94 |
610 |
26 |
7*0.16 |
0.49 |
0.38 |
1.25 |
124.71 |
610 |
25 |
7*0.18 |
0.55 |
0.38 |
1.31 |
98.54 |
610 |
24 |
11*0.16 |
0.61 |
0.38 |
1.37 |
79.36 |
610 |
23 |
11*0.18 |
0.69 |
0.38 |
1.45 |
62.70 |
610 |
22 |
17*0.16 |
0.76 |
0.38 |
1.52 |
51.35 |
610 |
21 |
21*0.16 |
0.85 |
0.38 |
1.61 |
41.75 |
610 |
20 |
21*0.18 |
0.95 |
0.38 |
1.71 |
32.85 |
610 |
19 |
21*0.20 |
1.06 |
0.38 |
1.82 |
26.60 |
610 |
18 |
41*0.16 |
1.18 |
0.38 |
1.94 |
21.29 |
305 |
17 |
33*0.20 |
1.33 |
0.38 |
2.09 |
16.93 |
305 |
16 |
26*0.254 |
1.50 |
0.38 |
2.26 |
13.32 |
305 |
