| Basic Model |
I7L1400 |
I7L1000 |
| Dimensions |
Length |
2300mm(7.5ft) |
2300mm(7.5ft) |
| Width |
1360mm(4.5ft) |
1360mm(4.5ft) |
| Height |
2550mm(8.4ft) |
2550mm(8.4ft) |
| Loading
Container Height |
2480mm(8.1ft) |
2480mm(8.1ft) |
| Full extending
Height |
7000mm(22.9ft) |
7000mm(22.9ft) |
| Gross
Weight |
840kg(1785.7 lb) |
810kg(1785.7 lb) |
| Engine |
Model |
Z482-E4B-ACP-1 |
Z482-E4B-ACP-1 |
| Speed(rpm) |
1800 |
1800 |
| Rated
Power(KW) |
4.6 |
4.6 |
| Number of
Cylinders |
2 |
2 |
| Engine
Characters |
4 cycles,
Water-cooled diesel |
4 cycles,
Water-cooled diesel |
| Combustion
System |
E-TVS |
E-TVS |
| Engine
Aspiration |
Naturally aspirated |
Naturally aspirated |
| Emission
Level (60Hz) |
EPA Tier 4 |
EPA Tier 4 |
| Alternator |
Model |
Meccalte LT3N 75/4 |
Meccalte LT3N 75/4 |
| Rated
Power(KVA) |
4.5 |
4.5 |
| Frequency (HZ) |
60 |
60 |
| Rating voltage ( 50Hz) |
240/120V |
240/120V |
| Alternator insulation |
Class H |
Class H |
| Alternator protection grade |
IP23 |
IP23 |

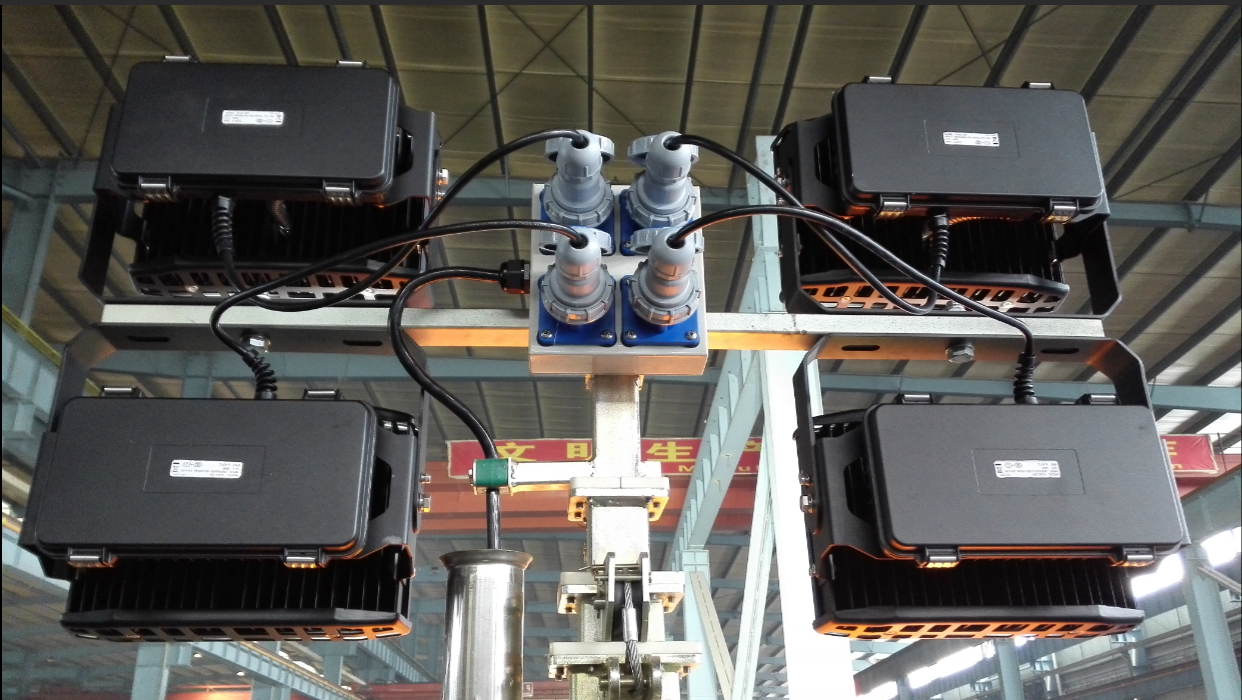

| Mast & Lights |
Type of Lights |
LED Light |
LED Light |
| Light's
Fixture |
Rectagle |
Rectagle |
| Luminous flux
(LM) |
154000(4*38500) |
110000(4*27500) |
| Number &
Power of lights |
4×350W |
4×250W |
| Number of mast
Sections |
5 |
5 |
| Mast extension |
Electrical(Vertical,
3500 lb winch) |
Electrical(Vertical,
3500 lb winch) |
| Mast rotation |
359° Manual rotation
with self locking |
359° Manual rotation
with self locking |
| Light tilt |
Manually |
Manually |
| Trailer |
Trailer suspension & axle with
Brakes |
Leaf springs axle
without brake |
Leaf springs axle
without brake |
| Tow bar |
A style frame with a
Supporting jack |
A style frame with a
Supporting jack |
| Stabilizing
Legs & number |
4 pcs drawable bar
with manual jacks |
4 pcs drawable bar
with manual jacks |
| Wheel's rim
Size & tires |
14" Sunraysia
Rim with regular tires |
14" Sunraysia
Rim with regular tires |
| Tow adapter |
2" ball coupler
or 3" pintle ring |
2" ball coupler
or 3" pintle ring |
| Tail lights |
Complex tail lights |
Complex tail lights |
| Max towing
Speed |
100km/h ( 62 mph) |
100km/h ( 62 mph) |
| Additional Features |
Fuel tank Type |
Rotational moulding
Plastic |
Rotational moulding
Plastic |
| Fuel tank
Capacity |
76 liters (20 US
Gallons) |
76 liters (20 US
Gallons) |
| Operating
Hours with full fuel |
140 hours |
160 hours |
| Generator
Starting type or controler |
Key starting |
Key starting |
| Power outlet
Sockets |
1 unit of Euro standard 16A/220V single phase power outlet socket |
| Max. against
Wind when fully extended |
20 m/s (40 mph) |
20 m/s (45mph) |
| Acoustic
Pressure |
68dB(A) at 7 meters
away |
68dB(A) at 7 meters
away |
| Max. # of units loading in 40' high container (Some components
Would be detached) |
9 |
9 |
