| Application: | Laser Cutting |
|---|---|
| Certification: | CE,FDA |
| Brand Name: | UPGOAL |
| Graphic Format Supported: | AI,BMP,DST,DWG,DXF,DXP,LAS,PLT |
| Applicable Material: | Acrylic,Crytal,Glass,Leather,MDF,Metal,Paper,plastic,Plexiglax,Plywood,Stone,Wood |
| Laser Type: | CO2 |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Model Number: | UG-9060L |
| Place of Origin: | China (Mainland) |
| Control Software: | RDWorks V8 |
| Cooling Mode: | Water Cooling |
| CNC or Not: | Yes |
| Cutting Speed: | 0-10000mm/min |
| Cutting Area: | 900*600mm |
| Cutting Thickness: | 20mm |
| Condition: | New |
| Effective working area: | 900*600mm |
| Laser tube power: | W6series, Reci, Beijing (Rated power: 130W, max. Power: 160W) |
| Working table: | Honey comb and knife strip, double working table |
| Lifting table: | Automatic up and down, 300mm |
| Driver mode: | 3 phases stepper motor and Driver, Yako brand |
| Guide rail: | Linear square guide rail ( Hiwin,Taiwan) |
| Transmission: | Belt transmission |
| Control system: | RuiDa RDC6442S |
| Wifi connection: | Yes |
| Type of cooling: | Industrial chiller CW-5000 cooling |
Quick Details
Specifications
130W 20mm Thickness Acrylic Co2 Laser Cutting Machine with Air Filter

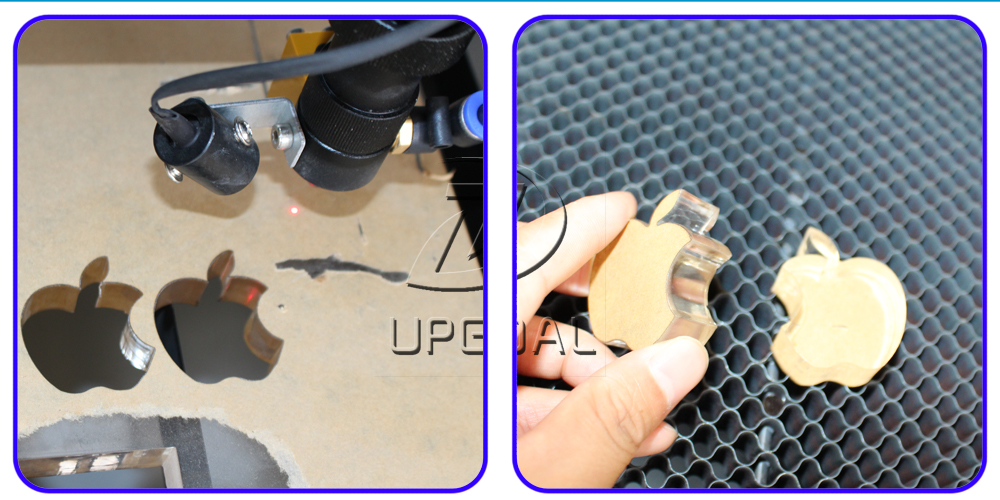

Reference Sample Photos
Application
Application industry: Marble engraving, Advertisement, Gift Package, Model.
Application Materials: Acrylic,crystal, marble, wood, paper, cloth, leather, rubber, glass, ceramic tile.
Features
Laser Head
Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.
Laser Tube
Adopted high quality Reci W2 (rated power 90W, maximum power 100W) Co2 laser tube, Long working time time and stable
Working Table
Honey Comb Table: applicable to various soft materials with good adsorption effect and low reflection ratio.
Knife Strip Table: with oxidation treatment and low reflection ratio Ensured cutting quality
Auto Lifting Table for more thickness materials
Beam Path System
Adopting Imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.
Beam Path System
Adopting Imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.
Motion System
Imported High precision, low friction force and stand wear and Hiwin linear square guide rails and blocks with 3M belt ensured stable transmission, lower noise
Operation System
Advanced USB port RuiDa 6442S control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency.
with WiFi connection function, no need to use USB cable, convenient and improving working efficiency.
with Full-process automatic laser power attenuation compensatioN, ensuring the performance consistency of engraving/cutting. the High speed motion control program with pre-buffering function enhances productivity more.
Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. with advanced Color management and defining the working turns with different colors, All or a part work can done in one time.
Rationalized placement of the electronic partS. Optimized heat dissipation effect.
Cooling System
Industrial chiller CW-5000, ensuring the laser tube long time continuous working.
Air filtration system
Air filter with 5 layers filtration, during the laser engraving cutting machine using, can filtering a mass of gas & smoke which are harmful to human health when engraving & cutting processing materials. Has the feature of low noise, flexible using, and cover small area.
Technical parameters
| Effective working area | 900*600mm |
| Laser Type | Co2 sealed-off laser tube |
| Laser tube power | W6series, Reci, Beijing (Rated power: 130W, max. Power: 160W) |
| Working table | Honey comb and knife strip, double working table |
| Lifting table | Automatic up and down, 300mm |
| Driver mode | 3 phases stepper motor and Driver, Yako brand |
| Guide rail | Linear square guide rail ( Hiwin,Taiwan) |
| Transmission | Belt transmission |
| Control panel | English |
| Laser output control | 1-100% software setting |
| Engraving speed | 0-60000mm/min |
| Cutting speed | 0-10000mm/min |
| Control system | RuiDa RDC6442S |
| Control software | RDWorks V8 |
| WiFi connection | Yes |
| Design software when delivery | CorelDraw |
| Control panel | DSP offline |
| Resolution accuracy | < 0.01mm |
| Location precision | < 0.01mm |
| Highest scanning accuracy | 2500DPI |
| Type of cooling | Industrial chiller CW-5000 cooling |
| Water protection system | Yes |
| Focus | Auto focus |
| Blow-off system | Air pump for the laser head Air blower for the machine |
| Air filtration system | Air filter |
| Working temperature | 0-45 °C |
| Operating humidity | 5-95% (without condensed water) |
| Supporting picture format | PLT,DST,DXF,BMP, DWG,AI,LAS,etc |
| Voltage | AC 110V+10% 50/60Hz, single phase or AC 220V+10% 50/60Hz, single phase or |
| Certificate | CE/FDA |
Reference Sample Photos
