| Insulation Material: | PVC |
|---|---|
| Conductor Material: | Copper |
| Application: | Heating |
| Type: | Insulated |
| Brand Name: | Relico Wire&Cable |
| Conductor Type: | Stranded |
| Model Number: | FN |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Product Series: FN,FVN
Rated temperature: - 60° C to + 105°C
Rated voltage: 600V
Test voltage:2000V
Insulation material: PE, Nylon sheath
Conductor material: Tinned Copper
Product Standards: JB1073-85

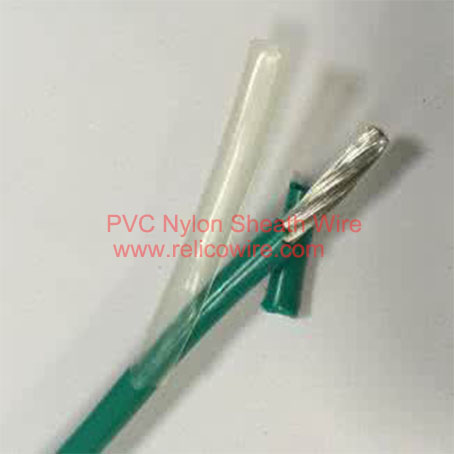

PVC Nylon Sheath Wire
Conductor size Mm2 |
Conductor Construction No./mm |
Insulation thickness mm |
Sheath thickness mm |
Wire Diametermm |
Electric resistance at 20℃ Ω/km | |
Non-shielding |
Shielding | |||||
0.3 |
16/0.15 |
0.35 |
0.12 |
1.7 |
2.2 |
71.2 |
0.5 |
28/0.15 |
0.35 |
0.12 |
2.0 |
2.5 |
40.1 |
0.75 |
42/0.15 |
0.35 |
0.12 |
2.1 |
2.6 |
26.7 |
1.0 |
32/0.20 |
0.35 |
0.14 |
2.3 |
2.7 |
20.0 |
1.5 |
48/0.20 |
0.4 |
0.14 |
2.7 |
3.2 |
13.7 |
2.5 |
49/0.25 |
0.5 |
0.14 |
3.6 |
4.1 |
8.21 |
4 |
49/0.32 |
0.6 |
0.16 |
4.4 |
4.9 |
5.09 |
6 |
84/0.30 |
0.6 |
0.16 |
5.1 |
5.6 |
3.39 |
10 |
19*7/0.32 |
0.9 |
0.20 |
6.6 |
7.1 |
1.95 |
16 |
19*7/0.39 |
1.0 |
0.20 |
8.3 |
8.9 |
1.24 |
