| Talk Range: | 3-5km |
|---|---|
| Storage Channel: | 128 |
| Frequency Range: | 136-174MHZ&400-520MHZ |
| Type: | Handheld |
| Brand Name: | baofeng |
Quick Details
Specifications

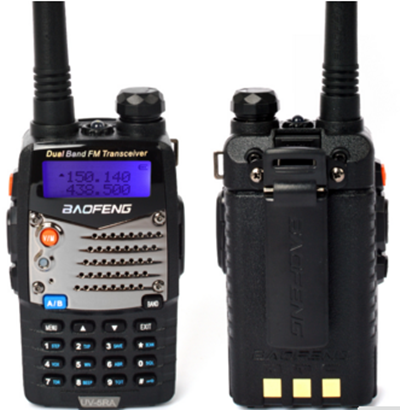

Dual Band 10km Walkie Talkie Handheld Baofeng Two Way Radio UV-5RA
Product Description
Dual Band/Dual Watch
High lllumination Flashlight
Priorty Channel Scanning
VOX/FM Radio Built-in
CTCSS/DCS Scanning
Emergency Alarm
Call Tone(1750HZ)
High/Low output power
DTMF Encoded
|
136.00-174.00 MHz |
400.00- 520.00MHz | |
Storage Channel |
128 |
Step Frequency |
2.5/5/6.25/10/12.5/20/25KHz |
Rated voltage |
DC 7.4V |
Frequency Stability |
±2.5ppm |
Work Temperature |
-20 °C to +60°C |
Battery Capacity |
H-1800m Ah (Li-ion Battery) |
Battery Life |
about 12 Hours |
Frequency Combination |
PLL frequency synthesis |
Antenna Impedance |
50 Ω |
Wok Mode |
Same Frequency simplex Operation or Different Frequency simplex Operation |
Dimension |
110x58x32 mm (Excluded Antenna) |
Transmitter
Output Power |
4W/1W |
Modulation Mode(W/N Band) |
FM (F3E) |
Maximum Frequency Deviation (W/N Band) |
≤5 KHz |
Spurious Power |
≤7.5 μW |
Adjacent channel power |
≤-65dB/≤-60dB |
Audio Distortion |
<5 % |
SNR |
≥-45dB/≥-40dB |
CTSCC/DCS Frequency Deviation(W/N Band) |
0.7±0.1KHz (W), 0.4±0.1KHz (N) |
Modulation Sensitivity |
8-12mV |
Transmitting Current |
≤1500mA |
Receiver
Sensitivity |
<0.20 μ V (12dB SINAD) |
Audio Power |
1 W |
Inter modulation Interference Resistance |
≥65dB (W), ≥55dB (N) |
Adjacent channel Sensitivity (W/N Band) |
≥65dB (W), ≥55dB (N) |
Audio Distortion |
5 % |
Receiving Current |
≤ 380m A |
