Features:

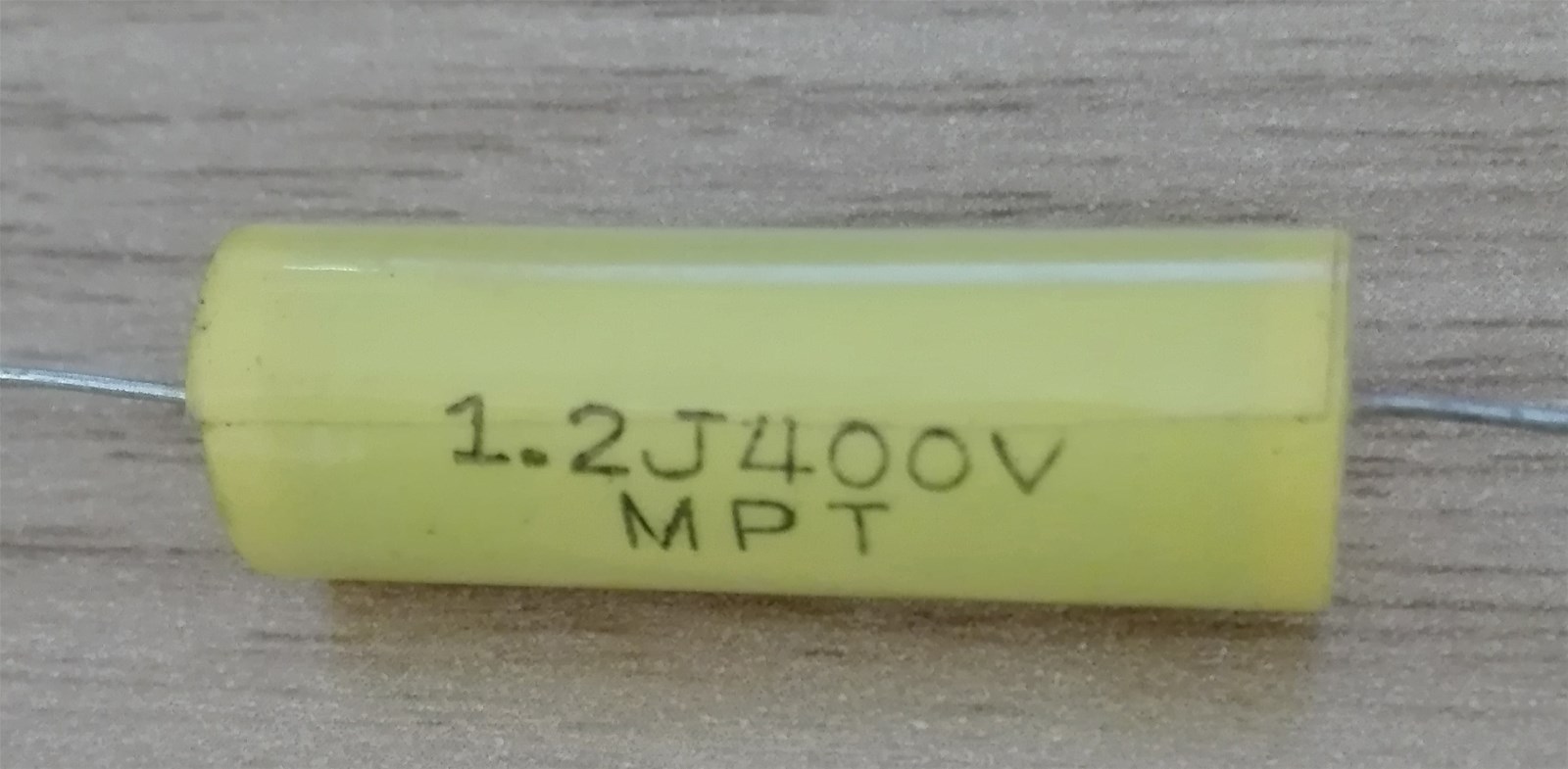

Metallized polypropylene film,non-inductive wound construction;
Axial lead, sealed with flame retardant epoxy resin
Small size, excellent self-healing property
Low noise
Typical Application:
Temperature Compensation circuits; timing, oscillator circuit; power factor correction and coupling capacitor in power supply application



Reference Standard	GB/T 10190(IEC60384-16)
Climatic category	AC: 25/85/21(DC:40/85/21)
Rated temperature	85℃
Operating temperature range	-40℃-105℃(only in DC circuit)                                                  85-105℃:derating Factor 1.5% per℃for R.V(D.C)
Rated voltage	250VDC, 400VDC,630VDC,160VAC,250VAC,300Vac, 350Vac,400VAC,450VAC
Capacitance range	0.1-4.7uf(DC); 0.5-25uF(AC)
Capacitance tolerance	±5%(J),±10%(K)
Voltage proof	1.6*R.V 2S
Dissapation factor	≤0.1%(1KHZ at 20-25℃)
Insulation resistance(20℃,100V,1min)	≥50000MΩ, Cr≤0.33uf;  ≥15000MΩ,Cr≤0.33uf(20℃,100V,1min) for DC
	≥1000MΩ·UF
