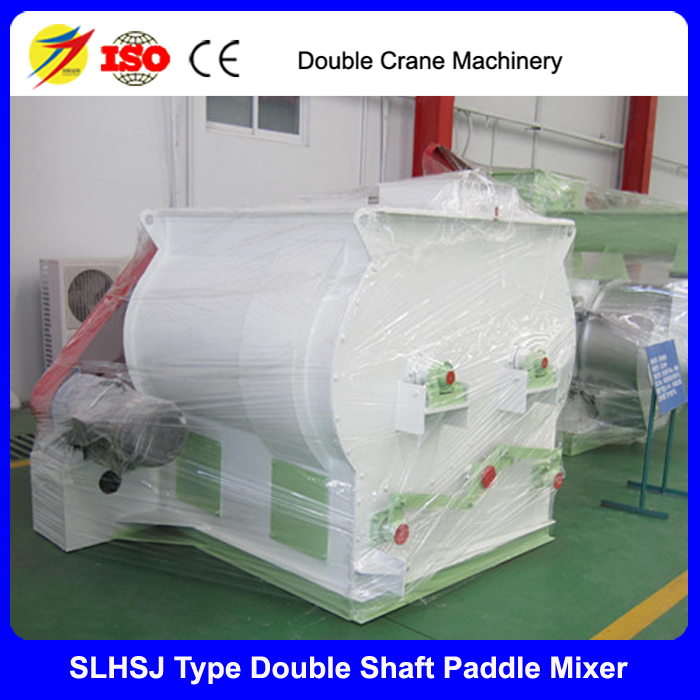

Double Shaft paddle mixer large capacity feed mixing machine sale in South Africa

Paddle Mixer Model	SLHSJ 0.5	SLHSJ 1	SLHSJ 2	SLHSJ 4	SLHSJ6
Motor Power(kw)	5.5kw	11kw	18.5kw	30kw	37kw
Mix Capacity(ton)	0.25T/Batch	0.5T/Batch	1.0T/Batch	2.0T/Batch	3.0T/Batch
Effective Volume(m3)	0.5	1	2	4	6
Dimension(m)	1.9*1.8*1.4	1.8*2.4*1.5	2.3*2.6*1.7	3.2*2.9*2.1	3.8*3.4*2.5
Weight(ton)	1.3t	2.6t	4.5t	5.4t	6.5t
Steel Thickness (mm)	Carbon Steel or Stainless Steel,Thickness 5-20mm
Mixing Time(minutes)	40-180 Second/Batch, 5-10batch/h
Mixing Evenness(cv%)	CV 3%
Structure	"W" shape double shaft horizontal pneumatic type paddle mixer, Electric motor drive chain transmission,main shaft speed 25rpm Big pneumatic door discharging feed at paddle mixer's bottom,no residue.

the feature of shandong shuanghe double shaft paddle mixer


(1) the mixing period is short and the mixing uniformity is high. the mixing time of the normal materials is less than 5%, which reduces the mixing time and improves the production efficiency of the feed factory

(2) mixing does not produce segregation: the machine in 1 minute after mixing evenly, continue to mix the material does not occur grading phenomenon, and not because of the specific gravity, particle size and other physical properties of large segregation

(2) Specially designed discharging mechanism makes the machine have large door opening angle with quicker discharging speed and less residue. the machine has compact structure, good sealing performance and no leakage.

(3) the shape of the machine body is W type. Inside are paddle type double rotors. Top parts is equipped with water spraying device.It is suitable to the mixing of the materials with high and low density.Improving the atomization effect of liquid to avoid the block of materials.

5. Customized carbon steel or stainless steel body, strong resistance to corrosion, can also add liquid material;

(4) It is widely used for mixing of powder,granule, slice, blocking materials,irregular and adhesive materials in the industry of feed,cereal, food, chemicals,medicine and pesticides etc.
