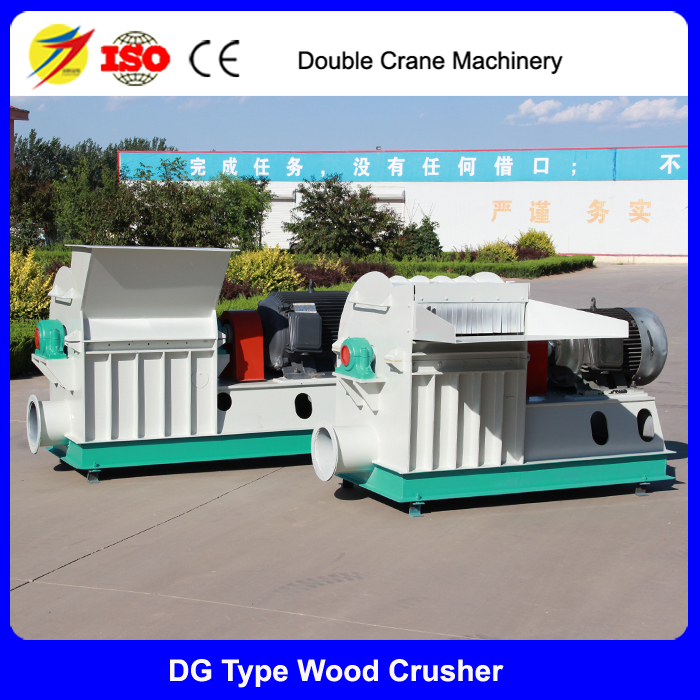

China supplier wood pellet making machine,Automatic wood hammer mill for sale

Multi functional mill wood crusher Is the styling products of our factory, it is the ideal equipment for crushing all kinds of straw, grass, corn, soybeans, and PVC foam board. Reasonable in structure, sturdy and durable, safe and reliable, convenient in operation, and of small vibration, and high efficiency, this series of machine is widely applied in feed factories, farms, organic fertilizer plants, Chinese herbal medicine, chemical industry, etc.

Main model of malaysia wood tree branch crusher machine for sale

Item No.	Power(kw)	Capacity (T/h)	Screen  Size	Hammer Mill Application
DG -65*27	22	0.6-0.8	Screen size Φ2-Φ12mm, thicKness 3mm, Made by alloy steel	Hammer mill for wood sawdust, Crush wood chips, Furniture waste,  Branches, bark, straw,corn cob, Organic fertilizer,etc,Crushed sawdust used for making wood pellet
DG -65*55	37	1-3
DG -65*75	55	2-3.5
DG -65*85	90	3-5
DG-65*100	110	3.5-6

MAin stRucture:

this machine includes the following main parts, as shown in Figure 1.

(1) Base: connecting and supporting the parts of the mill thus make the machine complete.Crushed material shall be absorbed by the wind suction from the side of the base.

(2) the rotor: it is composed of the main shaft, hammer frame plate, pin shaft, hammer piece, bearing and other parts, which is the mill main moving parts of the hammer mill. The speed of rotor is higher,after assembly,it is experienced with dynamic balance test,with  the axis and the case of the hammer uninstalled.

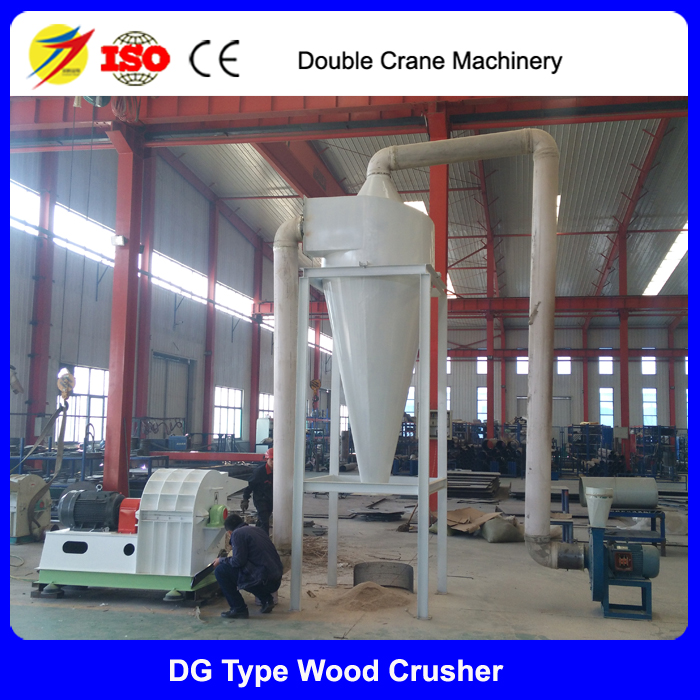

(3) the 65 type machine has an independent air blower, it's suction duct is connected with the main engine.

(4) the upper shell: the bar shape board on the shell is connected with the base. Rotor is installed in the crushing chamber where the material is crushed.

WoRking ProcEdures:

through feeding inlet on the shell, the material to be crushed enters into the crushing chamber, then it is crushed gradually under the crushing of the rapidly rotating hammer and the friction of the sieve plate,then from the discharge port on the base machine,the material would be released through the sieve hole under the function of the centrifugal force and air flow.
