| Talk Range: | 3-5km |
|---|---|
| Storage Channel: | 16 |
| Frequency Range: | 400-470mhz |
| Type: | Handheld |
| Brand Name: | WLN |
| Dimensions: | 110 x 50 x 32mm |
| Model Number: | KD-C1 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Feature:
50 CTCSS/105 CDCSS
VOX Function
Voice Prompt
PC Programming
Emergency Alarm
Intelligent Charging
Battery Save
Low Voltage Alert
Time-out Timer
Specification:
General Specifications |
|
Frequency Range |
UHF 400-470MHz |
Channel Capacity |
16 |
Channel Spacing |
25KHz |
Operated Voltage |
3.7 V |

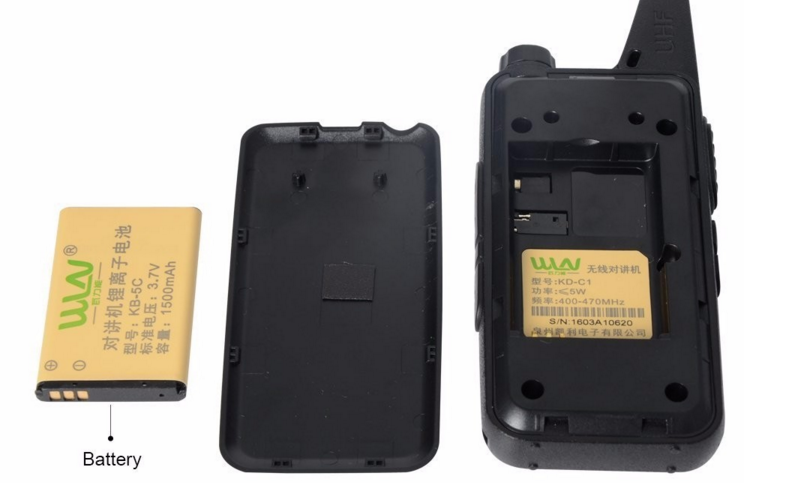

Battery |
1500MAh Li-ion |
Battery Life(5-5-90 duty cycle) about 8 hours |
|
Frequency Stability |
±2.5ppm |
Operated Temperature |
-30°c-+60°c |
Antenna Impedance |
50Ω |
Dimensions (L×W×H) (with battery,without antenna) |
110×50×32 mm |
Weight (with battery/antenna) |
198g |
Communication Range |
about 6km |
Transmitter |
|
RF Power Output |
<5W |
Spurious Emission |
≤65dB |
FM Noise |
≤-45dB(W) ≤-40dB (N) |
Audio Distortion |
≤5% |
Transmitting Current |
≤1.3A |
Receiver |
|
Sensitivity (12dB SINAD) |
≤0.20 UV |
Selectivity |
55dB/50dB |
Intermodulation |
≥65dB |
Adjacent Channel Selectivity ≥60dB |
|
Spurious Response |
≥60dB |
FM Noise |
45dB/40dB |
Audio Power Output |
1000mW |
Audio Distortion |
≤5% |
Standby Current |
≈15mA (with battery save on) |
