| Type: | Moving Head Lights |
|---|---|
| Brand Name: | CYSTAGELIGHT |
| Certification: | CE,RoHS |
| Working Lifetime(Hour): | 3000 |
| Lamp Power(W): | 350 |
| Input Voltage(V): | AC110-240v/50-60Hz |
| Model Number: | CY-7R |
| Place of Origin: | China (Mainland) |
| Base Type: | MR8 |
| Emitting Color: | Changeable |
| IP Rating: | IP33 |
| Working Temperature(℃): | |
| Color Temperature(CCT): | |
| CRI (Ra>): | 90 |
| Lamp Luminous Efficiency(lm/w): | 56 |
| Lamp Luminous Flux(lm): | 11200 |
| Light Source: | Halogen Bulbs |
| Beam angle: | 0-2 Degree |
| Keyword: | Beam 230 7r |
| Gobo: | 17 gobos |
| Lamp: | 7R |
| Focus: | electric focus |
| Cooling system: | Convective cooling fan |
| Dimmer: | 0-100% |
| Warranty: | 2 Years |
| Channel: | 16/20 |
Quick Details
Specifications

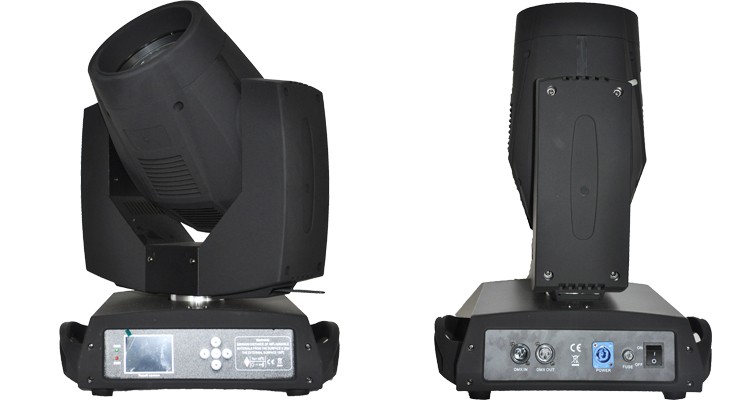

Product Features:Small Mini 7r Beam 230w Sharpy Moving Head Disco Stage Light has very strong beam. It combines beam and spot together perferctly. and this light can be customized double prism and double gobo wheel.
Product Parameters:
Product Parameters:
- Power Supply:AC100-240V 50-60Hz
- Power Consumption:300Watts

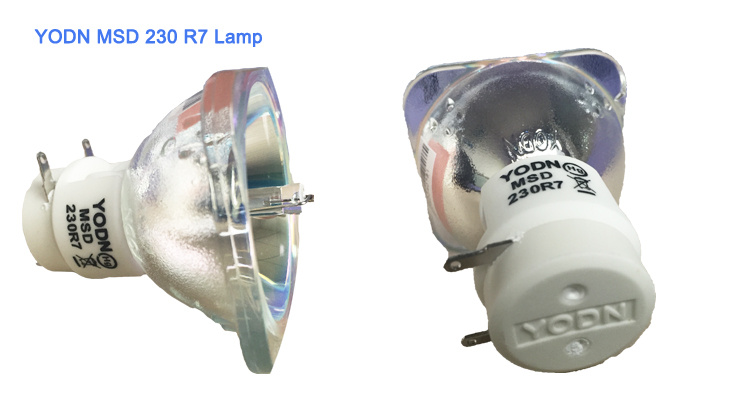

- Lamp type:O'sram Sirius Hir 7R or YODN MSD 230
- Lamp Life Time:2000 h life time
- Color Temperature:8,000K±300K

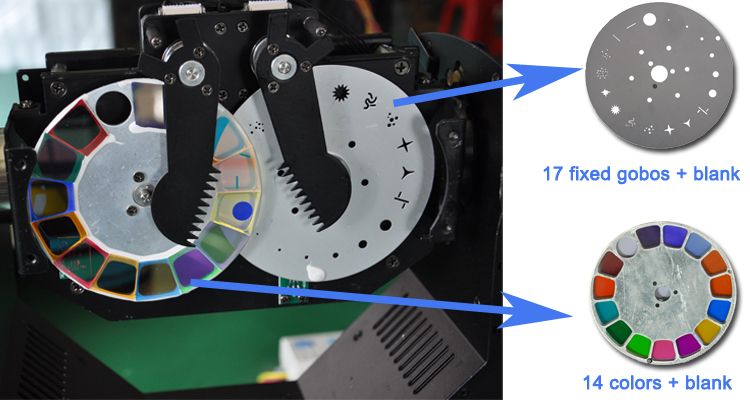

- Gobo:Interchangeable Gobo wheel with 17 fixed gobos
- Color:Interchangeable color wheel with 14 fixed Colors
- Prism:8 facet rotating prism
- DMX control:Standard USITT DMX-512
- Working Mode:DMX512, master-slave and sound activated controllable or auto operation
- Moving head range:540° in Pan and 270° in Tilt
- DMX channels:16/20CHs
- Dimmer:0-100%
- Forst Lens:0-100% wash effect
- Strobe:0-13Hz
- DMX Connectors:3-pin/5-pin male/female input and outputs
- Cooling system:Convective cooling fan
- Other Functions:Lamp on / off can be controlled by controller
- Dimmer&Strobe:1 - 10 flashes/second,continuous dimmer 0 - 100%
