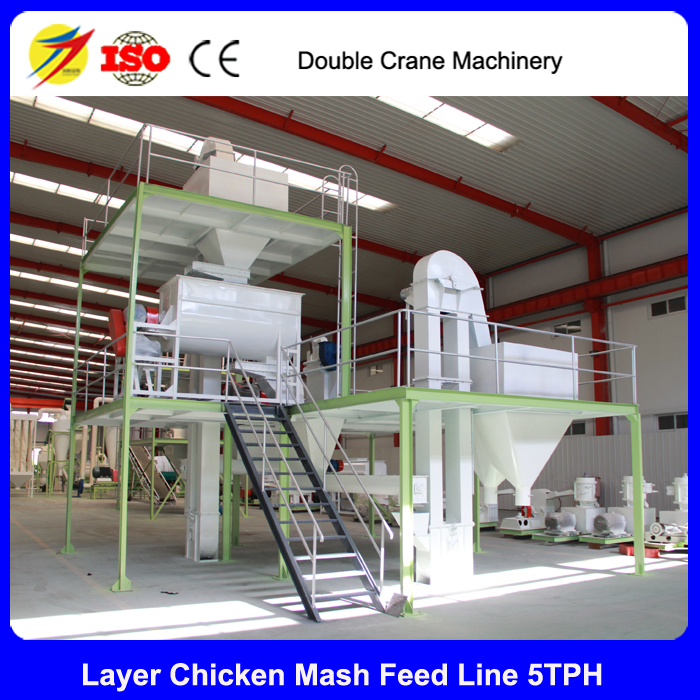

China poultry powder feed production line 5t/h for chicken cattle pig

the powder feed production line is very suitable to produce premix/powder/mash feed for egg chicken,pig,etc.It can process all kinds of grain feed,such as corn,soybean,sorghum,legumee,and crushed bone,fish,etc.
It has the advantage of low invest high return,crush thoroughly,mix evenly,it easy to adjust feed formulation and feed material mix proportion,to meet customer various demand,this production line already successful working in Kenya,Tanzania,

Ghana,Niger,win high reputation.

Premix feed production capacity (up to 5t/h),have dust cleaning system make sure workshop clean,Hammer mill screener sieve size can be 2,4,6,8,10,12mm,to meet different demand for the animal feed.this automatic powder feed plant Installed by steel frame structure,strong and durable, so equipments have long service time,promise it can work at least 15 years.



the main equipment introduction of chicken mash feed production line

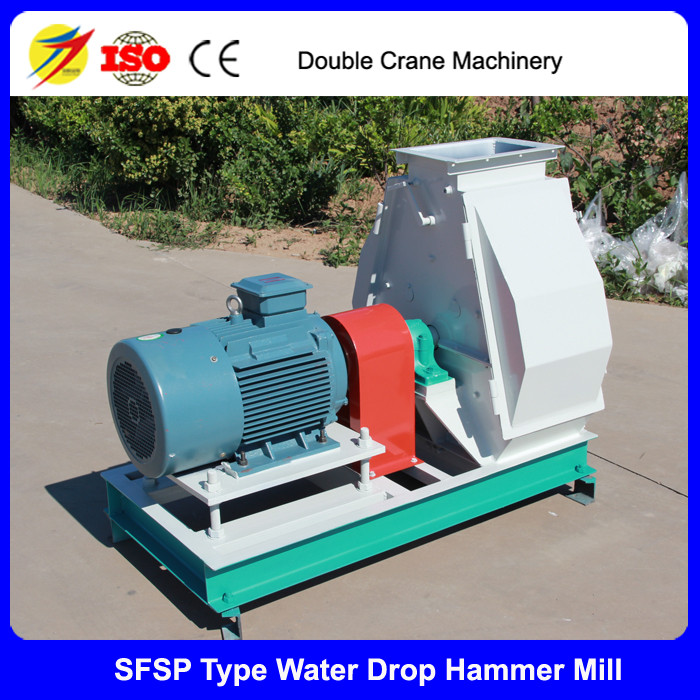

<1>water drop hammer mill

1.Large capacity wide water-drop type crushing chamber design, stable performance, easy for installation, operation and maintenance.

2.Specially abrasion resistant hammer structure can destroy the circulation layer of the materials and realize secondary crushing which can greatly improve the crushing efficiency.

3.Coupling direct drive is adopted, generating high transmission efficiency and accurate drive ratio.

4.Built-in grinding rotors and efficient grinding without dead corner.

5.Portable operation door with convenience, strength-saving and high security.

6.Many kinds of mesh specification can be chosen, Quick starting type dooropening machinery and frame-type screen   pressing mechanism are adopted,which can make the screen fixed solidly and fast to change the new screen, it is easy to operate and convenient to maintain.

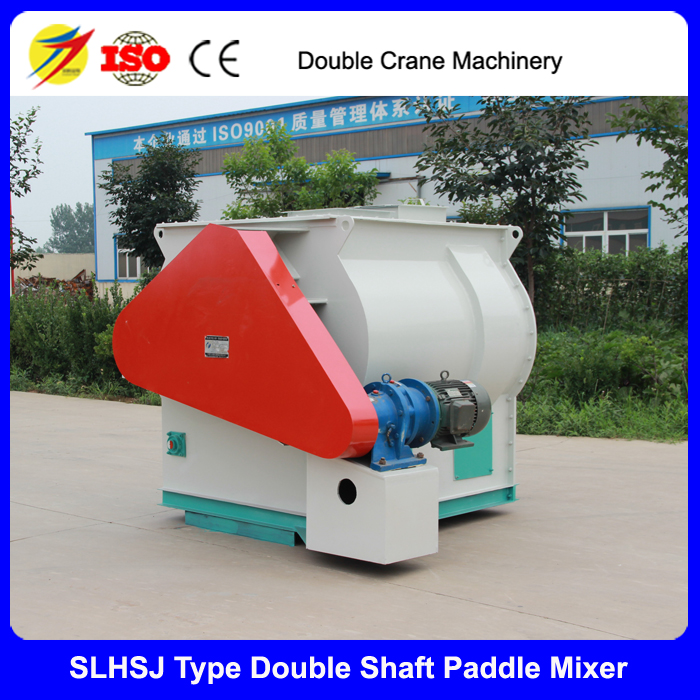

<2> Double shaft paddle mixer machine

(1) the mixing period is short and the mixing uniformity is high. the mixing time of the normal materials is less than 5%, which reduces the mixing time and improves the production efficiency of the feed factory
(2) mixing does not produce segregation: the machine in 1 minute after mixing evenly, continue to mix the material does not occur grading phenomenon, and not because of the specific gravity, particle size and other physical properties of large segregation
(3) Specially designed discharging mechanism makes the machine have large door opening angle with quicker discharging speed and less residue. the machine has compact structure, good sealing performance and no leakage.
(4) the shape of the machine body is W type. Inside are paddle type double rotors. Top parts is equipped with water spraying device.It is suitable to the mixing of the materials with high and low density.Improving the atomization effect of liquid to avoid the block of materials.
(5) It is widely used for mixing of powder,granule, slice, blocking materials,irregular and adhesive materials in the industry of feed,cereal, food, chemicals,medicine and pesticides etc.



<3> Packing machine
Packing machine mainly used for packing powder and granular materials with the advantages of high efficiency,high precision,small floor area. Convenient installation and debugging,easy maintenance.

When the machine works,it only needs manual bagging,automatic weighing and the loading feed is finished. It is simple and quick to hold the bags pneumatically.

Unique feeding mechanism adopts gravity type feeder, controlling the size of the scrape door by double speed air cylinder to make it have quick packing speed and accurate measurement, suitable to all kinds of material. It has less transmission parts and is convenient to install and maintain.

after packing is finished, the bags will automatically break away bag holder and bag-hanging part without any operation.
