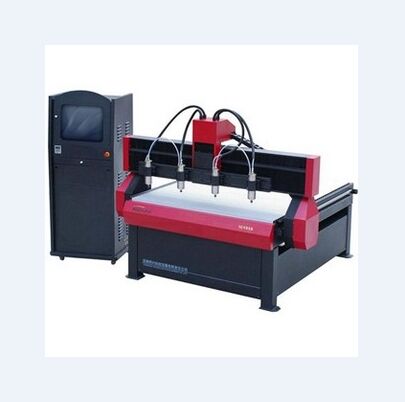

Free operation: can use single spindle, also can use several spindles to process the same file simultaneously, highly improving processing efficiency

Good ability of continuous working: adopting advanced high precision square linear rail, industrial machine frame design, stable and durable
Super-high configuration: adopting advanced high precision and high speed mute lead screw for all three axes; 750W high power and high torque Panasonic servo system for X, Y and Z axis, the original professional woodworking  NCSTUDIO controlling system standard.


Anti-dust system: all-around anti-dust system, to protect the machine against dusty environment, and prolong the transmission parts lifetime.

Strong electric system: configured with independent electric controlling cabinet, circuit optimization design, easy to maintain, Ensure safety and stability of the system

Multi-compatibility: support G-code and HPGL, compatible with international CAD/CAM software as TYPE3/ArtCAM/Castmate/Pro etC

Model	TC1313	TC1318	TC1325	TC1613	TC2030
Working Size	1300×1300×100mm	1300×1800×100mm	1300×2500×100mm	1600×1300×100mm	2000×3000×100mm
Spindle Motor	800W(4PS)			800W(6PS)
Motion Speed	6000~12000mm/min
Spindle Rotation	6000~24000rpm/min
Cutting Tool	Ф3.175, Ф4, Ф6, (optional)
Dictate Format	HPGL, G-code
Screw	two-nut rolling ball screw from Germany
Resolution	0.01mm

FPGA controlling system (optional)
Dust collecting System (optional)
Germany vacuum pump (optional)
Automatic oil lubricating system (optional)
More power spindle motor can be mounted according to your requirement
Can produce any size for customers' special requirement
Note: any changes of technical parameters without notice
