Dust collector is a kind of equipment that uses bag type filtration components made of fibers to capture solid particulates in gas. Dust collector mainly adopts four kinds of cleaning methods, that is, mechanical shaking, reverse-air cleaning, pulse-jet cleaning and compound cleaning.

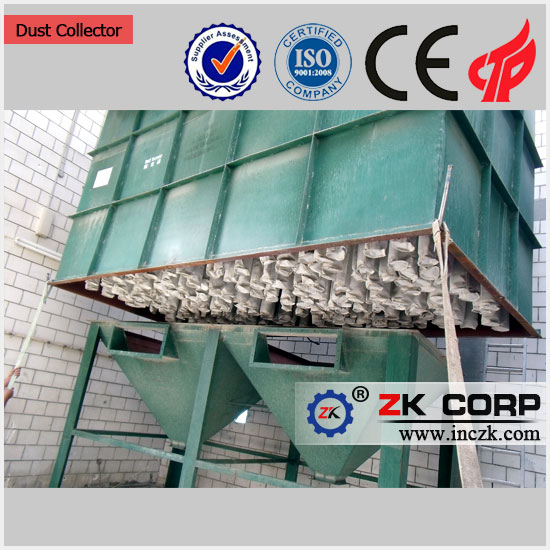

Dust collector is made up of support, hopper, middle box, upper box, filtering bags, frame, pulse-jet cleaning devices and PLC control procedures. In -the -box is the sub-room structure, while working the gas spread out by the dust collecting duct in all ash bucket. Coarse particles directly fall into the ash bucket bottom for wind speed reducing and the ash bucket spoiler role in the collision, fine dust rose with the bag at all between the fine dust was blocked leaving the outer surface of the bag, cleaning gas clearance role with negative pressure ventilation through the bag into the mains from the body into the atmosphere, reaching the purpose of purification.

 3. Parameters of Dust Collector:

Model	Air processing volume	Filtration velocity	Filtration area	Equipment resistance	Bag size Diameter	Bag quantity	Temperature	Cleaning method	Weight (t)
	(m3/h)	(m/min)	(m2)	(PA)	(mm)	(Number)	(oC)
ZM100	6000-7000	1-1.2	100	1200	130	100	<230oC	on-line cleaning	3.6
ZM120	7200-8640	1-1.2	120	1200	130	100	<230oC	on-line cleaning	4.3
ZM150	9000-10800	1-1.2	150	1200	130	100	<230oC	on-line cleaning	5.7
ZM200	12000-14400	1-1.2	200	1200	130	200	<230oC	on-line cleaning	7.3
ZM250	15000-18000	1-1.2	250	1200	130	200	<230oC	on-line cleaning	8.8
ZM300	18000-36000	1-1.5	300	1200	130	200	<230oC	on-line cleaning	11.2
ZM350	21000-42000	1-1.5	350	1200	130	200	<230oC	on-line cleaning	13.3
ZM400	24000-48000	1-1.5	400	1200	130	200	<230oC	on-line cleaning	15.5
ZM450	27000-54000	1-1.5	450	1200	130	200	<230oC	on-line cleaning	18.9
