| Usage: | Abrasion Tester |
|---|---|
| Power: | Hydraulic |
| Brand Name: | chenda |
| Warranty: | one year warranty |
| weight: | 300kg |
| Model Number: | MMW-1 |
| Place of Origin: | China (Mainland) |
| Model: | Computer Controlled Vertical Universal Friction And Wear Tester |
| Axial test force working range: | 1-1000N |
Quick Details
Specifications

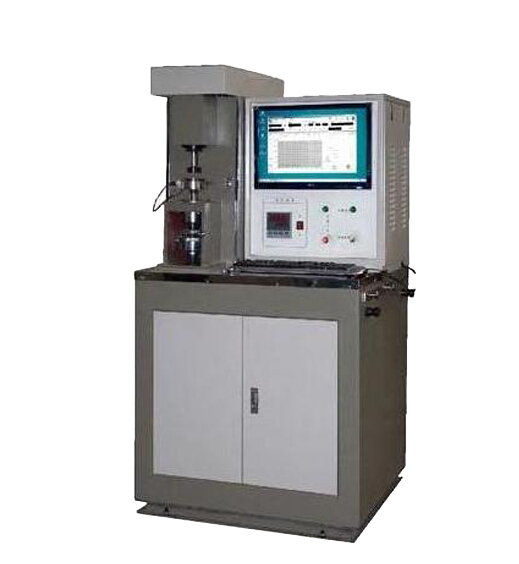

Computer controlled vertical universal friction and wear tester MMW-1
MMW-1 is a Multi-specimen friction and wear testing machine. It is designed for simulating, evaluating and testing almost all kinds of oil (high-class serial hydraulic oil, lubricant, combustion oil and gear oil) and material (metal, plastic, coating, rubber, ceramic etc.)
It is widely used in tribology field, petrol chemical industry, mechanical, energy resource, metallurgy, space flight, engineering areas, college and institute etc.
Standard
this machine meets SH/T 0189-1992 Lubricant Anti-wear performance Evaluation Method (Four-ball tester method) and conforms to ASTM D4172-94 and ASTM D 5183-95.
Testing condition:
Item |
Method A |
Method B |
Test temperature |
75±2℃ |
75±2℃ |
Speed of spindle |
1200±60 r/min |
1200±60 r/min |
Testing time |
60±1min |
60±1min |
Axial testing force |
147N (15kgf) |
392N (40kgf) |
Axial testing force zero point inductance |
±1.96N(±0.2kgf) |
±1.96N(±0.2kgf) |
Standard steel-ball specimen |
Φ 12.7mm |
Φ 12.7mm |
Technical specification:Warranty
1.Test force |
|
1.1 Axial test force working range |
1～1000N |
1.2 Error of indicating value lower than 200N |
Not bigger than ±2N |
Error of indicating value upper than 200N |
Not bigger than 1% |
1.3 Discriminability of test force |
Not bigger than 1.5N |
1.4 Relative error of long time auto hold indicating value |
Not bigger than ±1% FS |
1.5 Return zero error of digital display device of test force Indicating value |
Not bigger than ±0.2% FS |
2. Friction Moment |
|
2.1 Measuring maximum friction moment |
2.5 N. M |
2.2 Relative error of friction moment indicating value |
Not bigger than ±2% |
2.3 Friction force weighing transducer |
50N |
2.4 Friction force arm distance |
50mm |
2.5 Discriminability of friction moment indicating value |
Not bigger than 2.5 N. Mm |
2.6 Return zero error of digital display device of friction |
Not bigger than ±2% FS |
3. Range of spindle stepless speed variation |
|
3.1 Stepless speed variation |
1～2000r/min |
3.2 Special deceleration system |
0.05～20r/min |
3.3 for over 100r/min, error of spindle speed |
Not bigger than ±5r/min |
for below 100r/min, error of spindle speed |
Not bigger than ±1 r/min |
4. Testing media |
Oil, water, muddy water, abrasive material |
5.Heating system |
|
5.1 Heater working range |
Room temperature～260℃ |
5.2 Disc type heater |
Φ65, 220V, 250W |
5.3 Jacketing heater |
Φ70x34, 220V, 300W |
5.4 Jacketing heater |
Φ65, 220V, 250W |
5.5 Platinum thermo resistance |
1 group each (long&short) |
5.6 Temperature measuring control accuracy |
±2℃ |
6.Conicity of spindle of testing machine |
1:7 |
7. Max. Distance between spindle and lower disc |
≥75mm |
8. Spindle control mode |
|
8.1 Manual control |
|
8.2 Time control |
|
8.3 Revolution control |
|
8.4 Friction moment control |
|
9. Time display & control range |
0s～9999min |
10. Revolution display & control range |
0～9999999 |
11. Output maximum moment of main motor |
4.8N. M |
12. Overall dimension (L * W * H ) |
600x682x1560mm |
13. Net weight |
about 450 kg |
