| Moving Type: | Wheel Loader |
|---|---|
| Type: | Backhoe Loader |
| Brand Name: | UNIONTO |
| Condition: | New |
| Year: | 2017 |
| Make: | Shandong Kaiqiang Machinery Co., Ltd. |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | 1 year |
| Certification: | ISO |
| Rated Load: | 5000kg |
| Dimension(Long * Breadth * High): | 7920*3050*3400mm |
| Place of Origin: | China (Mainland) |
| Model Number: | 857 |
| maximum tractive force: | 152KN |
Quick Details
Specifications

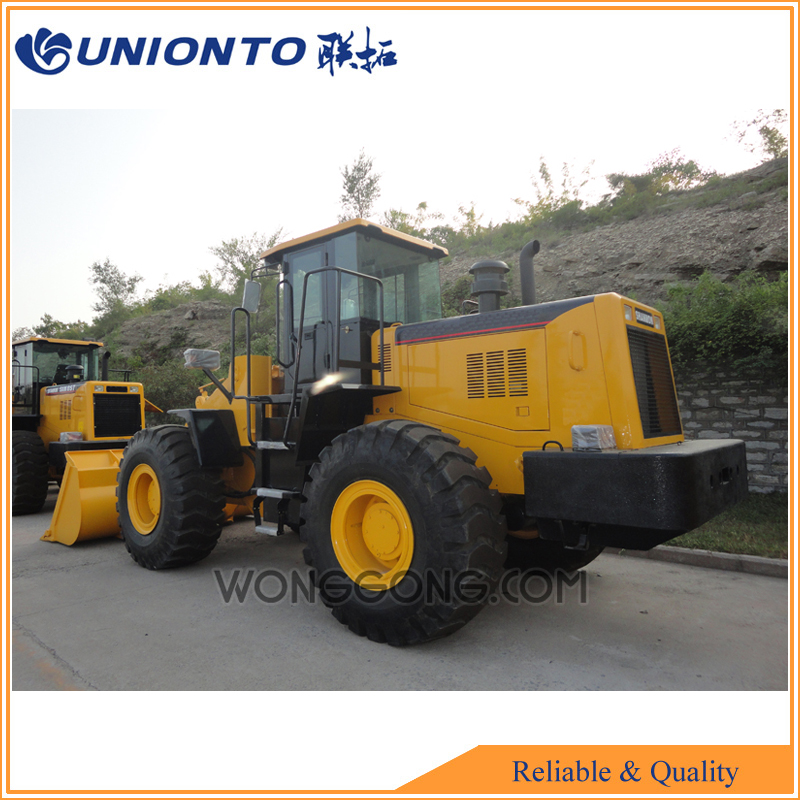

the Main Performance Parameter of Wheel Loader UNIONTO-857
Performance |
1 |
Rated load |
5000kg |
2 |
Overall weight |
17100kg | |
3 |
Rated bucket capacity |
3m3 | |
4 |
Maximum tractive force |
152KN | |
5 |
Maximum breakout force |
170KN | |
6 |
Maximum grade ability |
30 | |
7 |
Maximum dump height |
3150mm |
8 |
Maximum dump reach |
1250mm | |
|
9 |
Overall dimension (LWH) |
792030503400mm |
|
10 |
Minimum turning radius |
6640mm |
Engine |
11 |
Model |
Weichai Steyr WD10G220 |
|
12 |
Type |
in line water cooling dry cylinder injection |
|
13 |
Nos. of cylinder-bore/stroke |
6126130mm |
|
14 |
Rated power |
162kw--2400r/min |
|
15 |
Maximum torque |
860N.M |
|
16 |
Min fuel-consume ratio |
215g/kwh |
Transmission system |
17 |
Torque converter |
Single-stage,Two-phase,Four-element (dual-turbine) |
|
18 |
Gearbox type |
Power shift, planetary structure |
|
19 |
Gear shift |
2 Forward, 1 Reverse |
|
20 |
Maximum speed |
38km/h |
Drive axles |
21 |
Main reducTion type |
Spiral bEvel gear Single Reduction |
|
22 |
Hub reduction type |
Single-stage pLanetary reduction |
|
23 |
Wheel base (mm) |
3200mm |
|
24 |
Wheel tread |
2250mm |
|
25 |
Minimum ground clearance |
450mm |
Hydraulic system |
26 |
System working pressure |
18MPa |
|
27 |
Boom lifting time |
5.950.2s |
|
28 |
Total time |
10.950.5s |
|
29 |
Fuel tank capacity |
300L |
|
30 |
Function of leveling automatically |
Yes |
Brake system |
31 |
Service brake |
Air over oil caliper disc brake on 4 wheels |
