| Moving Type: | Wheel Loader |
|---|---|
| Type: | Backhoe Loader |
| Brand Name: | UNIONTO |
| Condition: | New |
| Year: | 2017 |
| Make: | Shandong Kaiqiang Machinery Co., Ltd. |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | 1 year |
| Certification: | ISO |
| Rated Load: | 1800KG |
| Dimension(Long * Breadth * High): | 5325*1825*2700mm |
| Place of Origin: | China (Mainland) |
| Model Number: | 918 |
| Maximum tractive force: | 45KN |
Quick Details
Specifications

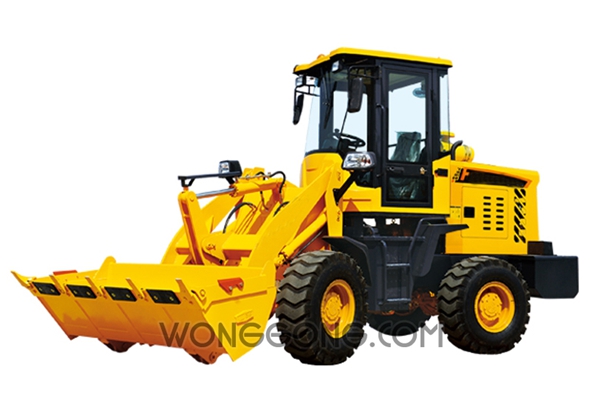

the Main Performance Parameter of Wheel Loader UNIONTO-918
Performance |
1 |
Rated loading |
1800kg |
2 |
Overall weight |
3700kg | |
3 |
Rated bucket capacity |
0.8m3 | |
4 |
Maximum tractive force |
45KN | |
5 |
Maximum breakout force |
44KN | |
6 |
Maximum grade ability |
25o | |
7 |
Maximum dump height |
2900mm | |
8 |
Maximum dump reach |
1000mm |
9 |
Overall dimension (LWH) |
532518252700mm | |
|
10 |
Minimum turning radius |
3750mm |
Engine |
11 |
Model |
YN25GB |
|
12 |
Type |
Direct injection, diesel engine |
|
13 |
No. of cylinder-bore/stroke |
4 |
|
14 |
Rated power |
37KW |
|
15 |
Maximum torque |
192Nm |
Transmission system |
16 |
Torque converter |
265 |
|
17 |
Gearbox type |
Countershaft, cOntinuously vAriable, |
|
18 |
Gear shift |
2 forward shift, 2 reverse shift |
|
19 |
Maximum speed |
18Km/h |
Drive axles |
20 |
Main reduction |
Isuzu |
|
21 |
Wheel base (mm) |
1840mm |
|
22 |
Wheel tread |
1370mm |
Hydraulic system |
23 |
System working pressure |
160MPa |
|
24 |
Boom lifting time |
4.5 |
|
25 |
Total time |
9.0 |
Brake system |
26 |
Service brake |
Oil brake |
|
27 |
Parking brake |
Soft shaft brake |
Tyre |
28 |
Type specification |
20.5--16 |
