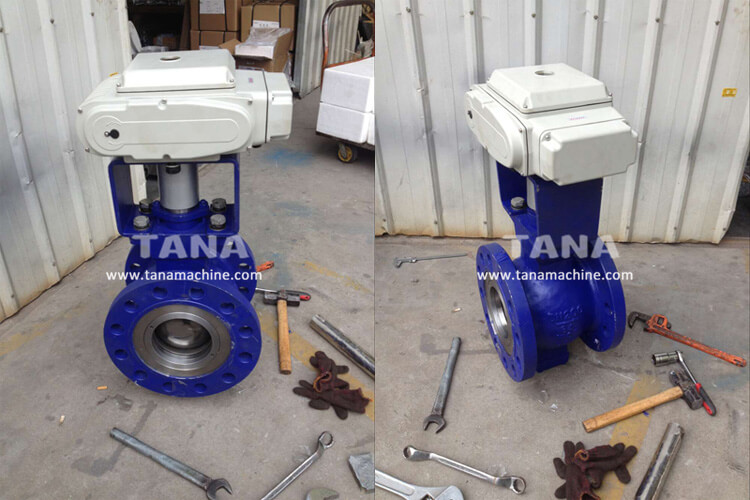

V port ball valve
1.Brief Introduction:

  V port Segment ball valve is a quarter-turn control valve. V type valve core is designed with a special V shape notch. Segment ball valve is one type of ball valves, its closure is a half ball with V type port which has sharp edges. during operation the valve, friction action will be occurred between its closures that producing a strong shearing force to the medium, and a fan-shaped area will be formed between V type port of the ball and the port of seat ring, so the section are of flow port can be changed, and the medium can be precisely regulated. It is a kind of regulating valve with angel rotation, having same sealing performance as common ball valves, so it simultaneously has both functions of regulating and on-off. Incorporating with pneumatic or electric actuators, it can be widely used in the automatic control systems in different industries.



2.Techincal parameters:

1.the V port disc assures smooth and accurate throttling actions on a wide range of applications,such as paper pulp with the pneumatic actuator and positioner,the valve can provides automatic control for flow,temperature,pressure

2.Blow-out Proof Stem

3.ISO Integral Mounting Flange

4.Anti-Static Construction

5.Fugitive Emission Control Device

 V port Ball Valve technical parameter

Sizes:  DN 25~250mm   NPS 1" -10"   wafer type

             DN 25~500mm  NPS 1" -20" flanged type

Pressure Rating:

PN 10/16/25/40/63

ANSI 150/300/600

Actuator :

Handle/Worm Gear

Pneumatic/Electric

Body Material: A216WCB,A352LCB,LCC,A351CF8,CF8M,CF3,CF3M,A890 4A,A890 5A,A890 6A,

                          HastelloyA,Hastelloy B,Hastelloy C,20 Alloy

Disc&Ball: A182 F304+Hcr/SFNI/Tungsten Carbide(WC)/Chromium Carbide

Seat Material: Soft seal: 304/316+Devlon

Metal seal:304/316+STL

Standard flange connection:ASME B16.5 (class 150);EN1092-1:2001

Seal level:Metal Seat: Class IV per IEC 60534-4 /ANSI/ FCI 70-2

Soft Seat:Class VI per IEC 60534-4 / ANSI / FCI 70-2/FCI 70-2

Temperature:-29C+500C

Application:Oil,Chemical,Petrochemical,Metallurgical,Light industry,Refinery,Power station,Food,Pharmaceutical,Paper making,Mining etc.

Main tag:150lb,300lb,600lb,800lb v port ball valve, v pattern ball valve.

Structure for different metal seat and soft seat.
