| Brand Name: | MiyeaEYE |
|---|---|
| Lens: | 3.6mm HD lens |
| Camera image sensor: | 1/4 inch H42 sensor |
| Camera Pixels: | 1MP |
| HDD: | 2XSATA Ports(Max.6TB/Per) |
| Model Number: | K4-A1001 |
| Place of Origin: | China (Mainland) |
| Resolution: | 720P |
| Power Supply: | DC 12V |
| Video Output: | 1VGA,1HDMI |
| Hard Drive Size: | 3.5''(Does not include) |
| IR-CUT: | Auto Switch |
| Plug Specifications: | EU / US / AU / UK |
Quick Details
Specifications

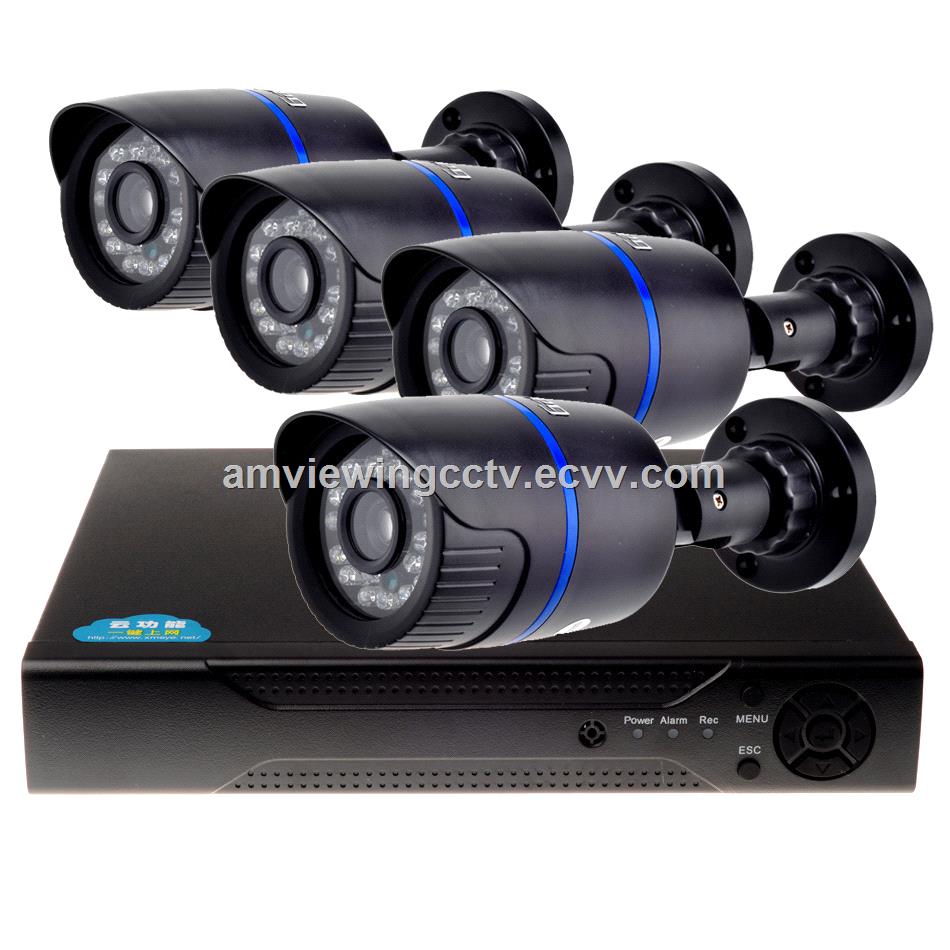

720P 4ch ahd dvr cctv system
Qualitative video without latencies
No signal latencies, indicative for IP-systems.
Specifications:
|

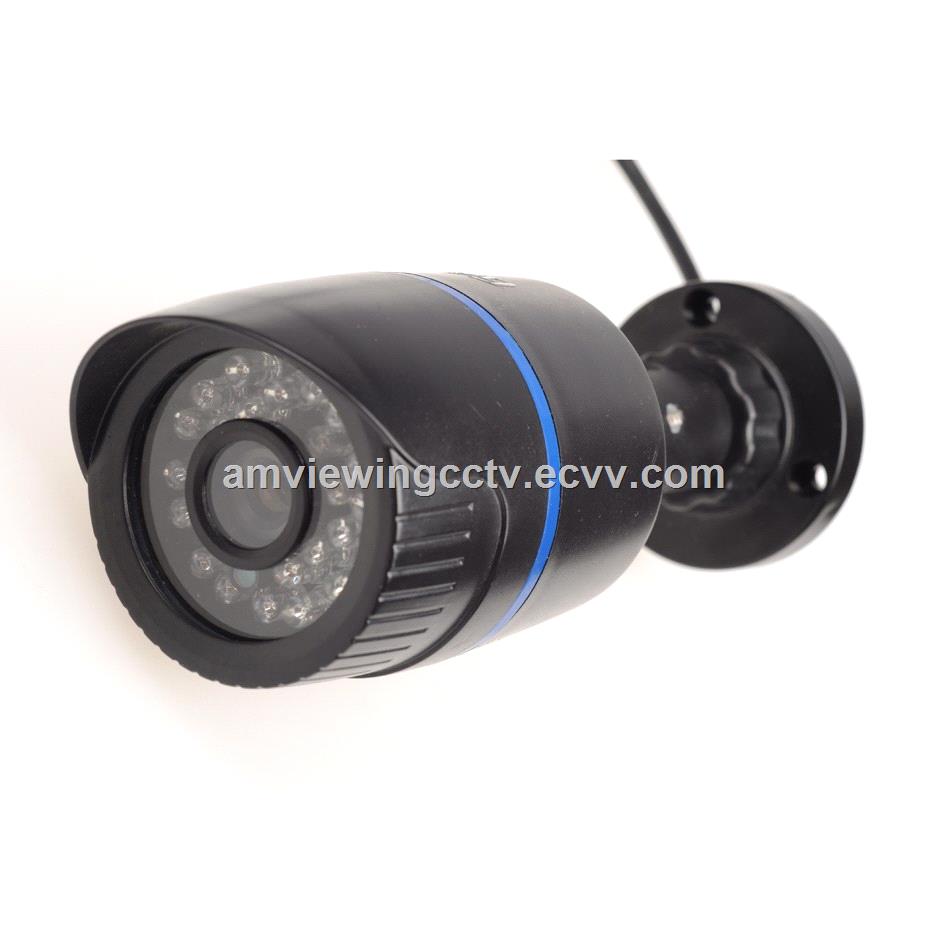

Model |
K4-A1001 (1.0MP) |
K4-A1301 (1.3MP) |
|
Sensor |
1/4 inch H42 sensor |
1/2.8 inch SC1035 sensor |
|
Minimum Illumination |
Color:0. 1Lux,(F1.2,AGC ON),0Lux with IR |
Color:0.01Lux,(F1.2,AGC ON),0Lux with IR |
|
Black & White:0.01Lux,(F1.2,AGC ON),0Lux with IR |
Blank & White:0.001Lux,(F1.2,AGC ON),0Lux with IR |
|
|
Photosensitive Resistance |
1 photosensitive resistance interface, support the photosensitive resistor input signal and image, IR-CUT, infrared lamp linkage |
|
|
Shutter |
1/50(1/60) seconds to 1/10,000 seconds |
|
|
Day and Night Function |
Support IR-CUT |
|
|
Infrared light |
24pcs IR Leds |
|
|
Lens |
3.6mm |
|
|
Synchronous Mode |
inter-sync |
|
|
Noise-signal Ratio |
>58dB |
|
|
Temperature and Humidity |
- 10'C ~ 60'C, humidity is less than 90% (no condensation) |
|
|
Power |
DC12V±10% |
|
|
Consumption |
<5W |
|
|
Dimension |
17.8*6cm |
|
|
Housing material |
ABS Plastic |
|

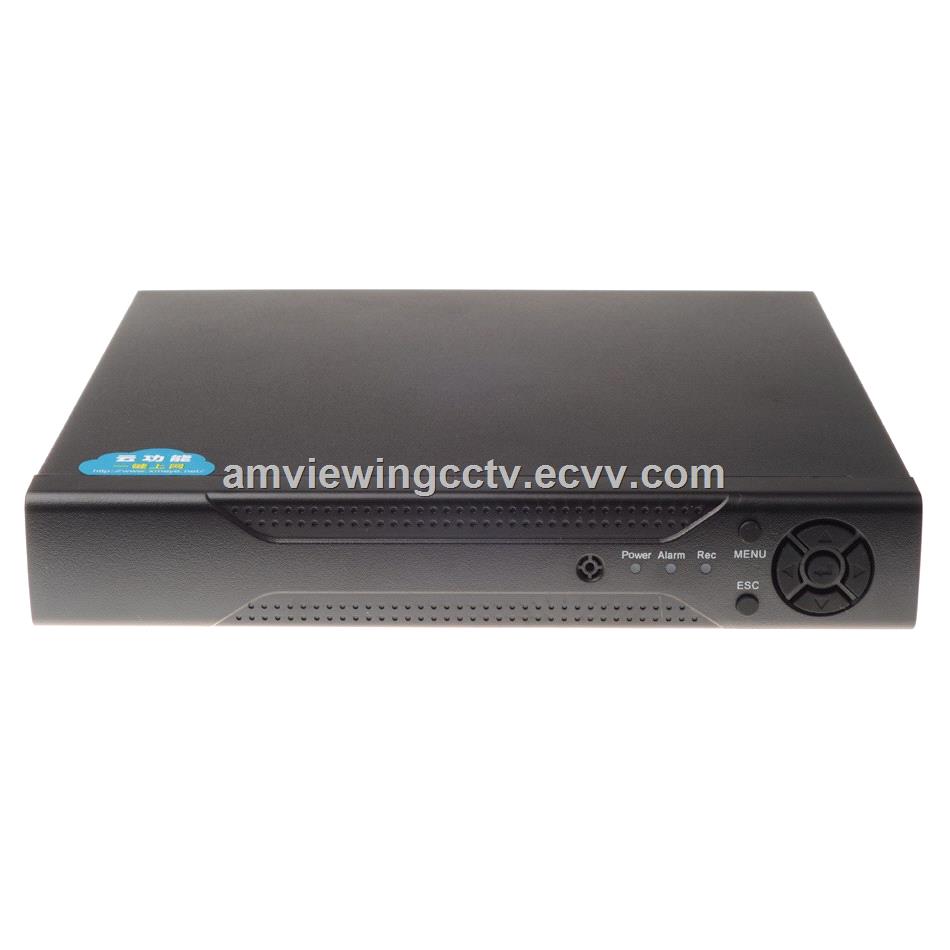

AHD DVR Feature:

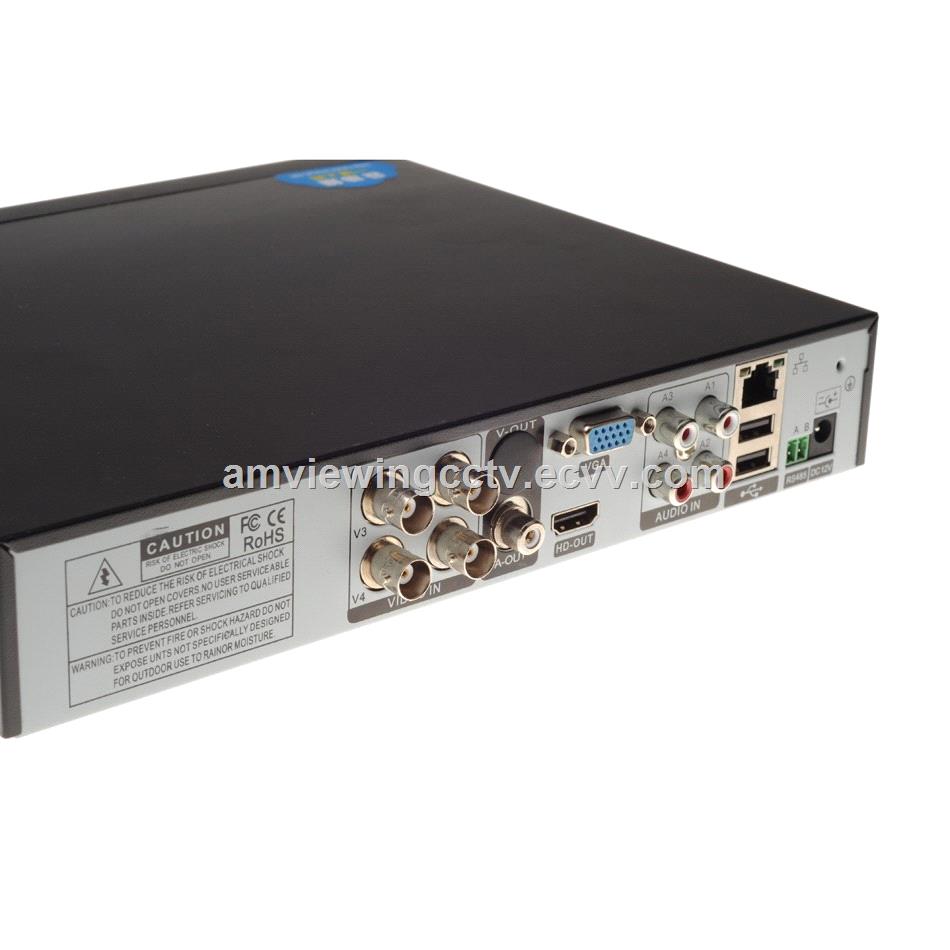

1,Support VGA, HDMI full HD output simultaneously;
2,Support ONVIF; access third party;
3,Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;
4,Support web, CMS, center platform management software MYEYE, provide SDK development;
5,Support various mobile monitoring (for iPhone, Android);
6,Remote Access, With DNS (ARSP),easy to monitor remotely
7,Support UTC, control signal& video stream transmit through one single coaxial
8,Support AHD/TVI/CVI/CVBS/IP five signals;
