| Moving Type: | Wheel Loader |
|---|---|
| Type: | Wheel Loader |
| Brand Name: | UNIONTO |
| Condition: | New |
| Year: | 2017 |
| Make: | Shandong Kaiqiang |
| Place of Origin: | China (Mainland) |
| Model Number: | 866 |
Quick Details
Specifications

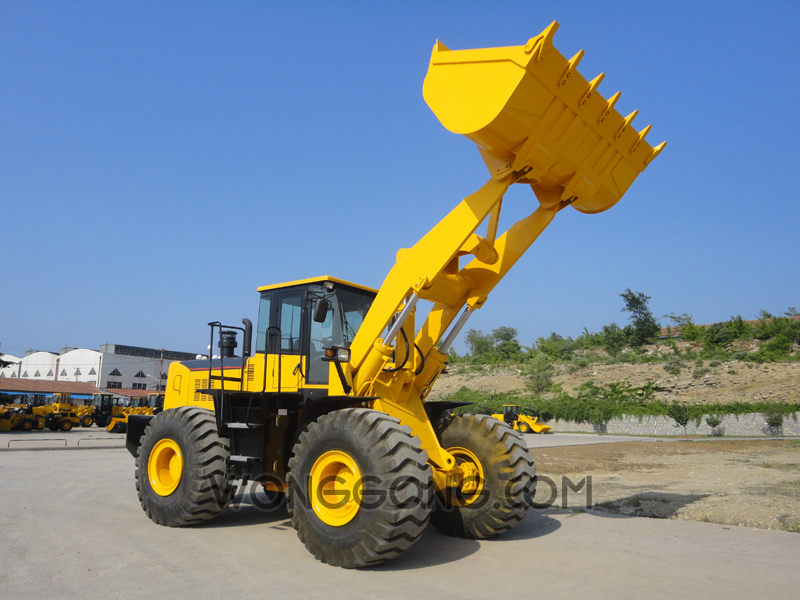

UNIONTO-866 Loader (OEM Available)
Main Features
1) Hydraulic pilot control, light and flexible, micro-excellent results.
2) Double pump confluence of work systems, coaxial flow amplifying steering, significant energy saving effect.
3) Advanced Bucket automatic leveling function, manipulation more convenient, reducing the labor intensity of the driver.
4) High-power turbocharged Steyr engine and strengthening the lengthened chassis and hydraulic system perfectly fit, more reliable, more fuel-efficient.
5) A single dump tank, "Z" type transfer bucket institutions, huge digging force to achieve.
6) Suitable for heavy-duty jobs drive axle, gear modulus big, big job for the amount of bad condition design, durability.
7) Enhanced large space panoramic cab, manufactured by the German professional and technical spring damping of high-quality sofa seat, safe and comfortable operation.
Main performance parameters of UNIONTO-866 Loader
Performance |
1 |
Rated load |
6000kg |
2 |
Overall weight |
18200kg | |
3 |
Rated bucket capacity |
3.8m3 | |
4 |
Maximum tractive force |
158KN | |
5 |
Maximum breakout force |
204KN | |
6 |
Maximum grade ability |
30℃ | |
7 |
Maximum dump height |
3448mm | |
8 |
Maximum dump reach |
1249mm | |
9 |
Overall dimension (L×W×H) |
7965×3050×3470mm | |
10 |
Minimum turning radius |
7020mm | |
Engine |
11 |
Model |
DHD10G0245 |
12 |
Type |
Lnline water cooling dry cylinder injection | |
13 |
No. of cylinder-bore/stroke |
6－126×130mm | |
14 |
Rated power |
175kw--2200r/min | |
15 |
Maximum torque |
950N.M | |
16 |
Min fuel-consume ratio |
≤208g/kw.H | |
Transmission system |
17 |
Torque converter |
Single-stage, two-phase, four-element (dual-turbine) |
18 |
Gearbox mode |
Power shift, planetary structure | |
19 |
Gear shift |
Four forward and four reverse gears | |
20 |
Maximum speed |
38km/h | |
Drive axles |
21 |
Main reducing spiral
|
Bevel gear grade 1reduction |
22 |
Decelerating mode |
Planetary reduction,grade 1 | |
23 |
Wheel base (mm) |
3200mm | |
24 |
Wheel tread |
2250mm | |
25 |
Minimum ground clearance |
450mm | |
Hydraulic system |
26 |
System working pressure |
17MPa |
27 |
Boom lifting time |
6.05±0.25s | |
28 |
Total time |
10.80±0.5s | |
29 |
Fuel tank capacity |
300L | |
30 |
Function of leveling automatically |
yes | |
Brake system |
31 |
Service brake |
Air over hydraulic disc brake on 4 wheels |
32 |
Parking brake |
Manual parking brake | |
Tyre |
33 |
Type specification |
26.5-25 |
34 |
Front tyre pressure |
0.4Mpa | |
35 |
Rear tyre pressure |
0.35Mpa |
