| Brand Name: | ROEWISH |
|---|---|
| Temperature of Media: | Normal Temperature |
| Material: | Stainless Steel |
| Pressure: | Medium Pressure |
| Standard or Nonstandard: | Standard |
| Model Number: | Q(6/9(11F-16P |
| Place of Origin: | China (Mainland) |
| Port Size: | DN15 - DN100 |
| Media: | Water |
| Power: | Pneumatic |
| Structure: | Ball |
| PN: | 16 bar |
Quick Details
Specifications
Specifications

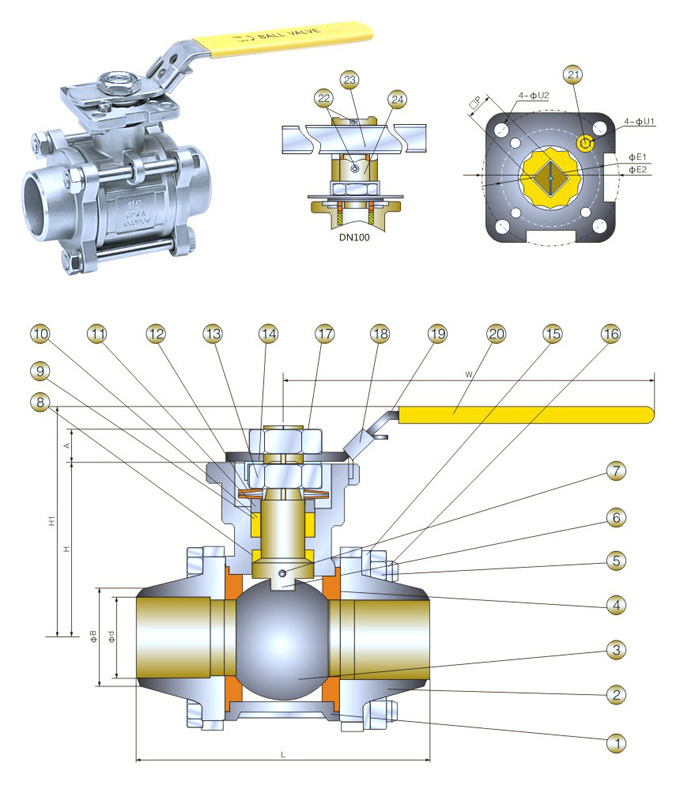

3PC Threaded ball valve
1). Size: 1/4",3/8",1/2",3/4",1",1-1/4",1-1/2",2",2-1/2",3",4"
2). Valve Body Material: 201/304/316/WCB/CF8/CF8M
3). Seat Material: PTFE,RPTFE (15% Glass Fiber),RPTFE(25% Carbon Fiber),PPL etc.
4). Availably Connection: NPT,BSP,BSPT,DIN259/2999,SW/BW.Clamp,Flange
5). Design Standard: ASME B16.34, DIN, GB
6). Handle: Lever Handle,Locking Device Handle upon Request
7). Operation: Manual, Pneumatic, Electric.
Brand: |
ROEWISH, OEM Accepted |
Applicable Media: |
Q11F-(16-64)C: Water, Oil, Gas |
Q11F-(16-64)P: Nitric Acid | |
Q11F-(16-64)R: Acetic Acid | |
Normal Pressure: |
1000psi |
Strength Testing Pressure: |
PT 2.4,3.8,6.0,9.6Mpa |
Seat Testing Pressure(Low Pressure): |
0.6Mpa |
Applicable Temp: |
-20C - 425C |
Certification: |
ISO9001-2008/CE |
Sample Testing: |
One Sample for free( under $10), Freight Collect |
Packing: |
Plastic Bag, Carton & Plywood Cases/According to customers' requirement. |
Payment: |
T/T, Western Union |
Port: |
NINGBO/SHANGHAI |
Delivery Time: |
Within 7 days for stock items after Payment, or 2 - 4 weeks |
Term of Delivery: |
FOB, CRF, CIF, EXW |
