| Brand Name: | ROEWISH |
|---|---|
| Temperature of Media: | Normal Temperature |
| Material: | Plastic |
| Pressure: | Low Pressure |
| Standard or Nonstandard: | Standard |
| Model Number: | Q(6/9)11F-10S |
| Place of Origin: | China (Mainland) |
| Port Size: | DN15 - DN100 |
| Media: | Water |
| Power: | Manual |
| Structure: | Ball |
| PN: | 10 bar |
Quick Details
Specifications
Specifications

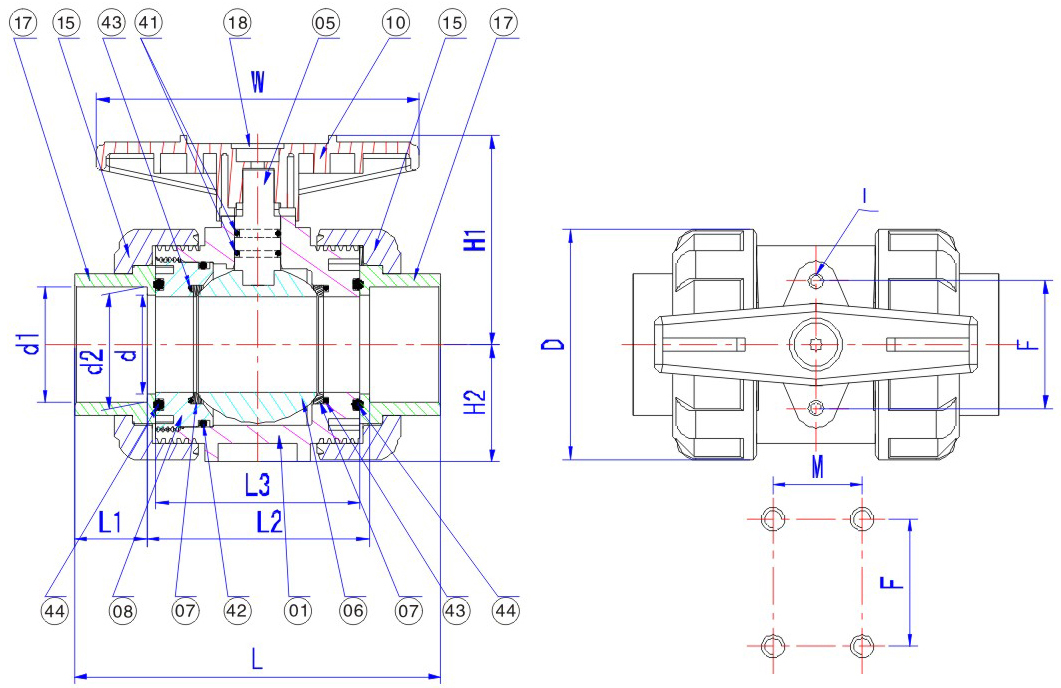

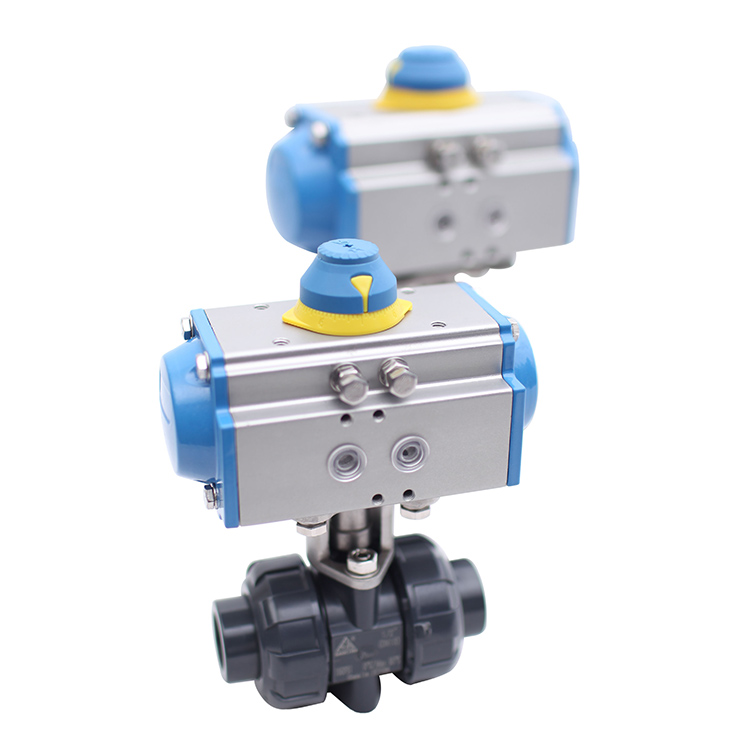

Manual Pneumatic Motorized Actuated Double Union PVC Ball Valve
1). Size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
2). Valve Body Material: PVC
3). Seat Material: PTFE
4). Availably Connection: True Union
5). Design Standard: DIN, GB
6). Handle: Lever Handle,Locking Device Handle upon Request
7). Operation: Manual, Pneumatic, Electric.
Brand: |
ROEWISH, OEM Accepted |
Applicable Media: |
Water, Oil, Gas |
Normal Pressure: |
10 bar |
Strength Testing Pressure: |
PT 2.4,3.8,6.0,9.6Mpa |
Seat Testing Pressure(Low Pressure): |
0.6Mpa |
Applicable Temp: |
-20C - 425C |
Certification: |
ISO9001-2008/CE |
Sample Testing: |
Accept |
Packing: |
Plastic Bag, Carton & Plywood Cases/According to customers' requirement. |
Payment: |
T/T, Western Union |
Port: |
NINGBO/SHANGHAI |
Delivery Time: |
Within 7 days for stock items after Payment, or 2 - 4 weeks |
Term of Delivery: |
FOB, CRF, CIF, EXW |
