| Brand Name: | ROEWISH |
|---|---|
| Temperature of Media: | Normal Temperature |
| Material: | Casting |
| Pressure: | Low Pressure |
| Standard or Nonstandard: | Standard |
| Model Number: | D(6/9)41F-16 |
| Place of Origin: | China (Mainland) |
| Port Size: | DN50 - DN1200 |
| Media: | Water |
| Power: | Pneumatic |
| Structure: | Butterfly |
| PN: | 16 - 64 bar |
Quick Details
Specifications

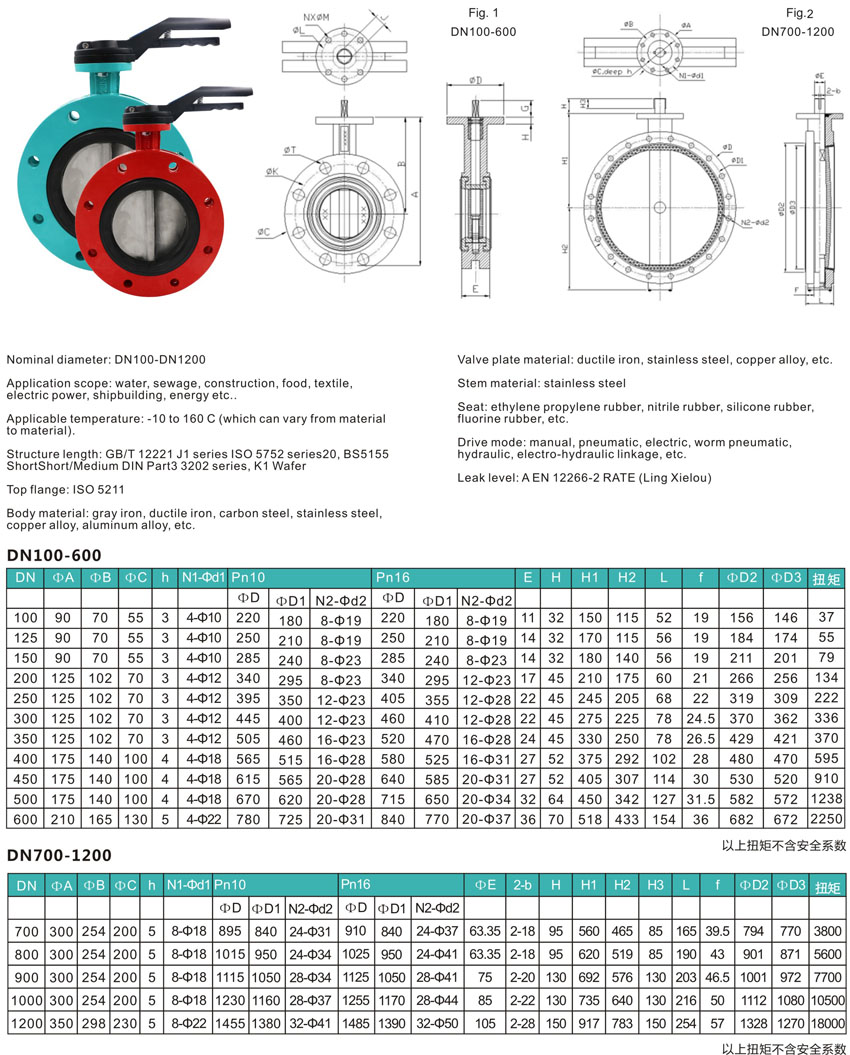

Standard of butterfly valve:
Device for regulating or cutting off medium in pipeline.
Suitable for hand lever worm gear, electric and pneumatic control.
Design and manufacturing standards in line with GB/T12238.
Pressure test conforms to GB/T13927.
Structure length is GB/T12221.
Side flange standard conforms to GB/T17241.6.
Specification ofButterfly valve:
Fluid medium: water, oil, gas and various corrosive media
Using temperature: -10 ~ 150
Applicable pressure: PN1.0 ~ 1.6MPa
Applicable size: DN50 ~ DN1200
Connection: flange
Connection standard: GBANSIDINAPIISOBS
Material ofButterfly valve:
Body: cast iron, ductile cast iron
Seat: Rubber
Disc: ductile iron / stainless steel
Note: all components can be selected according to the actual conditions of different materials.
