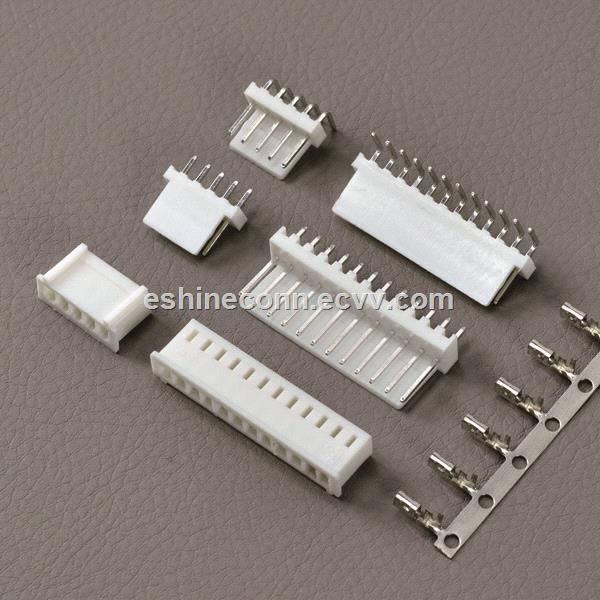

Alterante Molex 250 connector replace to Set-top box UL Rohs



Name	Molex 250connector systerm	Application	Signal,Power  Wire–to-Board
Connector	Housing, contact, pin header	Circuits/poles/pins	2~16
Pitch	2.5mm	Certificate	ROHS, UL,HF



1) Friction lock headers and receptacles ensure secure mating and prevents Accidental disengagement

2) Dual-cantileveer terminal enable reliable electrical contat and Performance with low insertion force

3) Polarizing header backwalls, polarizing ribs on receptacles and Polarizing pegs prevent accidental mis-mating during assembly

They can be replacing Molex, Digi-Key, TE AMP, TYCO JST, JAE, Hirose, Yeonho, Civilux, Samtech ect famous parts.





Crimp Housings	Equal 250 molex Crimp Housing 0022012(03~28)1;optional ramp and polarizing ribs, short type 022012(02~22)5
Crimp terminals	254 Cat Ear Crimp Terminal 4809, 22-30 AWG, Hot Tin Dip, 2.20mm Insulation Crimp, Reel
PCB Header/wafer	Digi-Key:5p: WM4203-ND,molex 0022232(02~22)1 KK 100 header assembly friction lock solid body  SD-6373-001;KK254 Solid Header, Right Angle, with Friction Lock:22-05-3(02~28)1
Pitch Centerline	2.5mm (1")
Circuits/poles/pins	2~22
Number of Rows	Single
Current rating	4.0A AC,DC
Voltage rating	250V,AC,DC
Wire range	AWG22~30



Applications:

Consumer

Fitness Equipment

Fax machines

Copier

Automotive

Car audio

Gaming Machines

Printers

Security System,

Set-top box,

Video / DVD products

Data/Communications

Copiers

Industrial

Pos machine

Vending Machines,

Medical

Lab equipment

Medical monitoring

Networking

Router/Switch

Telecommunications

Hubs

Routers

Servers

SwitchesIf you can't find the part Number here, please contact us or send your drawing or part number.





Eshine can also refer you to a Number of excellent harness assembly suppliers for your more specialized needs. Just advise info below or send your diagram.

Type connector:

Wire Specs:   AWG

UL Style:

Other end:

Assembly connector

Completer strip/Tin plate:

Semi Strip/Tin plate:



OEM orders are welcomed!
