| Brand Name: | shengfeng |
|---|---|
| Temperature of Media: | Medium Temperature |
| Material: | Casting |
| Pressure: | Medium Pressure |
| Standard or Nonstandard: | Standard |

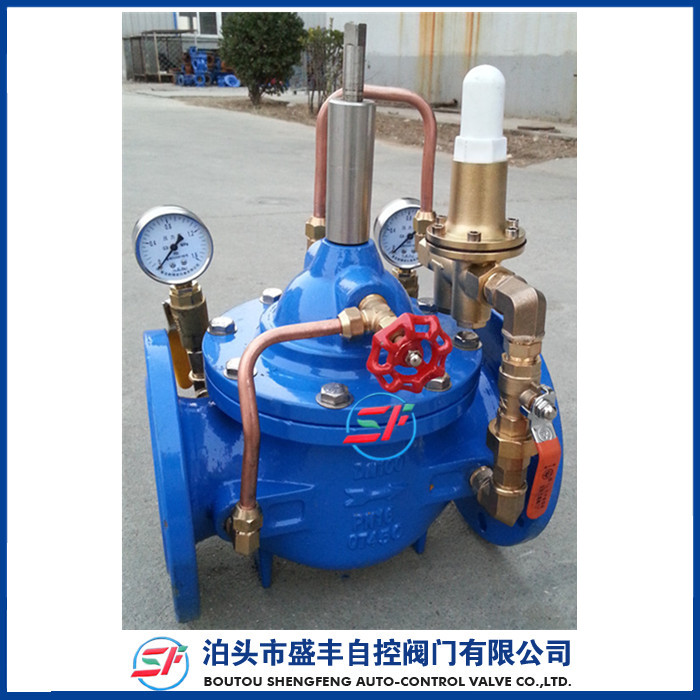

| Model Number: | 400X |
| Place of Origin: | China (Mainland) |
| Port Size: | DN50-DN600 |
| Media: | Water |
| Power: | Hydraulic |
| Structure: | Control |
| Nominal pressure: | 1.0mpa 1.6mpa 2.5mpa |
| shell test pressure: | P=1.5mpa |
| sealing test pressure: | P=1.1mpa |
| applicable medium: | water |
| applicable temperature: | 0-80 |
Quick Details
Specifications
Principle:
the pilot valve of this valve gets the pressure difference signal from the orifice to control open-close of the main valve.When the pipeline flow is bigger than the set one,the openness of the main valve will become smaller to have the flow reset to the original set one and the disc stable without moving.
Characteristic:
Easy installation and use,no complicated electric sensing mechanism with the control portion,uneasy to be failed,easily set table,automatically finishing adjustment,without need of manmade operation or other power source.
Purpose:
this valve is set on the water distribution pipeline where flow control is required to keep the preset flow unchange,limit an excessive flow within a preset valve and reduce the upstream high pressure to a downstream flow uninfluenced,even if the main valve upstream pressure varies.
