| Brand Name: | AOETECH |
|---|---|
| Medium Material: | Active Carbon |
| Filtration Grade: | Medium Filter |
| Construction: | Bag Filter |
| Condition: | New |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Quick Details
Specifications
Fused Single Mode Fiber Tilt
Filter
|
Specifications | ||||
Parameter |
Unit |
Premium |
A Grade | |
Port Configuration |
1×1 | |||
Bandwidth |
nm |
±15, ±20, ±40 | ||
Tilt Degree |
Typ |
dB |
0.5, 1, 2, 3, 4, 5 | |
Operating Power |
Max |
W |
2 | |
Operating Temperature |
°C |
-40 to +85 | ||
Storage Temperature |
°C |
-50 to +85 | ||
Package Type |
mm |
S7: Φ3×60 for bare fiber | ||

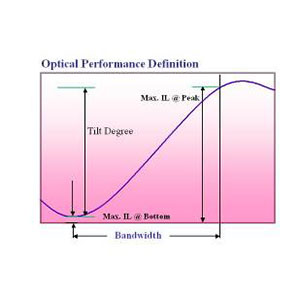

Performance Table | ||||||
Tilt Degree (dB) |
Maximum Insertion Loss (dB) | |||||
Premium |
A Grade | |||||
Max IL (dB) at Bottom |
Max IL (dB) at Peak |
Tolerance (dB) |
Max IL (dB) at Bottom |
Max IL (dB) at Peak |
Tolerance (dB) | |
0.5 |
0.1 |
0.6 |
±0.1 |
0.15 |
0.7 |
±0.2 |
1.0 |
0.2 |
1.15 |
±0.2 |
0.25 |
1.3 |
±0.3 |
2.0 |
0.3 |
2.3 |
±0.25 |
0.4 |
2.4 |
±0.5 |
3.0 |
0.5 |
3.4 |
±0.35 |
0.6 |
3.6 |
±0.6 |
4.0 |
0.6 |
4.5 |
±0.5 |
0.7 |
4.7 |
±0.7 |
5.0 |
0.7 |
5.6 |
±0.6 |
0.9 |
5.8 |
±0.8 |
Ordering Information |
S |
T |
F |
||||||||||
Wavelength 2=1590nm |
Bandwidth 1=±15nm |
Tilt Degree 05=0.5dB |
Tilt Direction P=Positive |
Grade P=Premium |
Package 6=S7 with 250μm bare fiber |
Fiber Type 1=SMF-28e |
Fiber Length 0=0.5m |
Connector 0=None | ||||
