| Pixels: | 5.6mm |
|---|---|
| Display Function: | Video |
| Tube Chip Color: | Full Color |
| Usage: | Outdoor |
| Brand Name: | TalkLED |
| Screen Dimension: | 360 * 720mm |
| Model Number: | S-PH5.6FO |
| Place of Origin: | China (Mainland) |
| LED: | SMD 2727 |
| Cabinet case: | aluminum |
| Matrix configuration: | 64 * 128 |
| Resolution: | 31604 pixels/sqm |
| Cabinet rhickness: | 60mm |
| Cabinet weight: | 7.5kg |
| Brightness: | 6500nits |
| Refresh rate: | 2880Hz |
| Max power consumption: | 133W/cabinet |
| Driving: | 1/8 scan |
Quick Details
Specifications

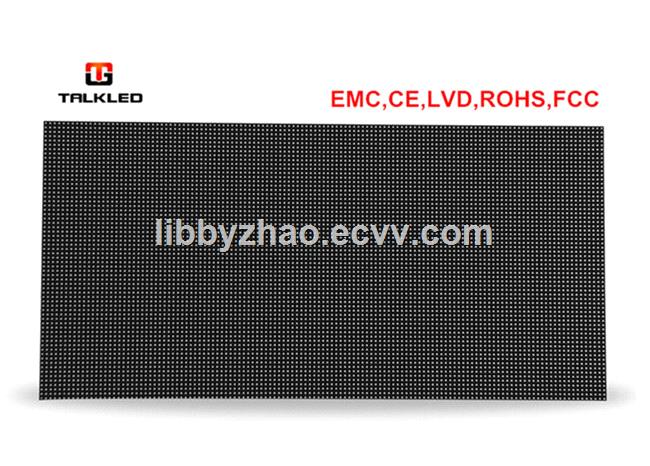

P5.6 Aluminum Cabinet 360x720mm
EMC CE Certified
High Brightness Outdoor Full Color LED Video Wall
Features:
Thin light aluminum cabinet 360x720mm.
Front service available.
High brightness LEDs, High refresh rate MBI IC driver with PWM.
4-layers thick PCB board, more durable.
IP66 waterproof, ok to work underwater.
Special perfect ventillation without fan inside cabinet.
High quality slim power supply.
Easy installation and maintenance.
Technical details:
| Parameters / Product Model | S-PH5.6FO |
| Working Environment | Outdoor |
| Pixel Pitch (mm) | 5.625mm |
| Pixel Configuration | SMD2727 |
| Pixel Matrix per panel | 64×128 |
| Panel Dimensions (HXW) (mm) | 360×720mm |
| Panel Material | Aluminum |
| Panel IP Rating (Front and Rear) | IP66/IP66 |
| Panel Weight (kgs/PC) | 7.5kg |
| Panel Thickness | 60mm |
| Panel Installation type | Fixed |
| Installation Access | Front Access / Back Access |
| Color Grayscale (Bit) | 16 |
| Gray Scale per Color (level) | 65536 |
| Refresh Rate (Hz) | 2880Hz |
| Driving Type | 1/8 scan |
| Monitoring and Detection | Power Status, Receiving card Status, Temperature, Humidity, Moisture, etc |
| Signal Transmission Distance (m) | CAT5 Cable: <100 m; Single mode Fiber: <10 km |
| Brightness (CD/㎡) | 6500 |
| Calibration | Brightness Calibration and Chromatic Calibration |
| Optimal Horizontal Viewing Angle (°) | 140 |
| Optimal Vertical Viewing Angle (°) | 120 |
| AC Input Voltage (V) | 90~240V |
| AC Input Frequency (Hz) | 50/60Hz |
| MAX power Consumption (W/Panel) | 234W |
| Average power Consumptio (W/Panel) | 70W |
| Storage Temperature (℃) | ﹣40 ℃~﹢60℃ |
| Operating Temperature (℃) | ﹣40 ℃~﹢60℃ |
| Storage Humidity (RH) | 10%~95% |
| Operating Humidity (RH) | 10%~95% |
| Lifetime Typical Value (hrs) | 100000 |
Operation method of useage:
Fixed structure installation, available front access and back access.
Same cabinet, just by using different brackets and screws.
Package:
Carton with inner foam protection.
4 cabinets per carton, 83x41x47cm, 33.5kg/carton.
Flight case package for rental projects, 5 cabinets per case, 77x43x45cm.
