| Machine Type: | Abrator |
|---|---|
| Use: | Burnishing,Container / Bottle Cleaning,Deflashing,Descaling / Stripping |
| Certification: | CE,CSA,RoHS,UL |
| Feature: | Critical Cleaning / Residue Free,Non-Toxic,Rust / Corrosion Inhibitor |
| Brand Name: | QINGGONG |
| Machine Type: | QG32 |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Dimension(L*W*H): | Customized |
| Power(W): | Customized |
| Material: | Metal / Coil |
| Industry Used: | |
| Cleaning Type: | |
| Cleaning Process: | |
| Fuel: | Electric |
| Model Number: | QG32 |
| Place of Origin: | China (Mainland) |
| Condition: | New |
| Bucket Elevator: | SEW |
| Blast chamber: | Replaceable Mn65 Steel Liner |
| Dust collector: | Executive standard:European standrads |
| Abrasive seperator: | Equipped with a vibratory sieve |
| Machine key parts: | Omron/Scheider/ABB/NSK |
| Machine installation: | Non-pit |
| Low voltage appratus: | CHINT/Delixi/Scheider |
| Color: | Clients' Requirements |
| Blast wheel: | High chromium wear-resistant casting alloy |
Quick Details
Specifications

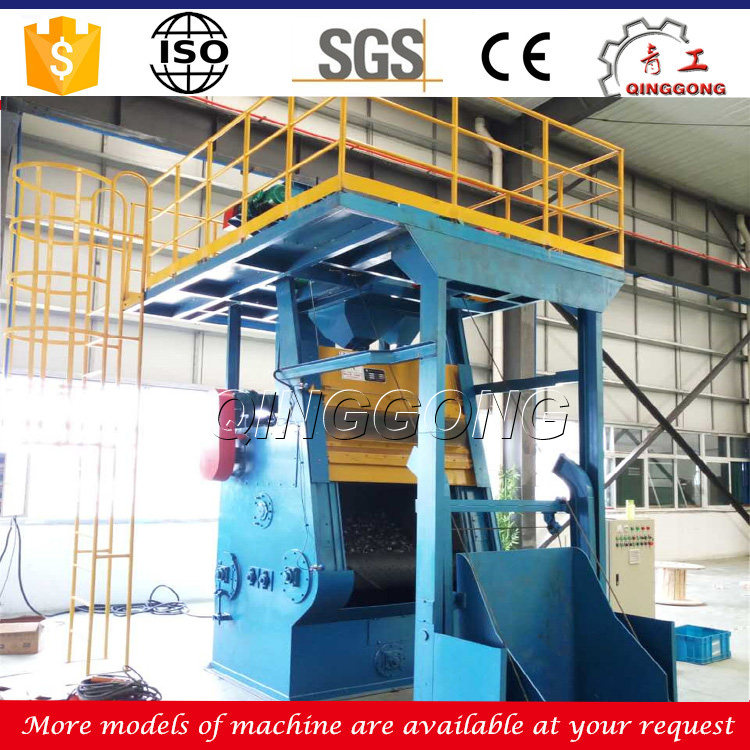

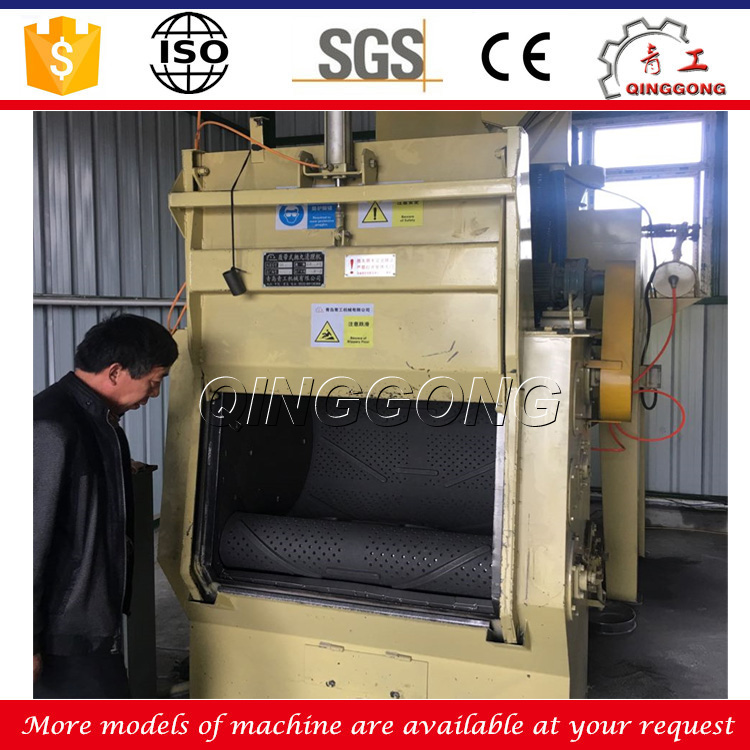

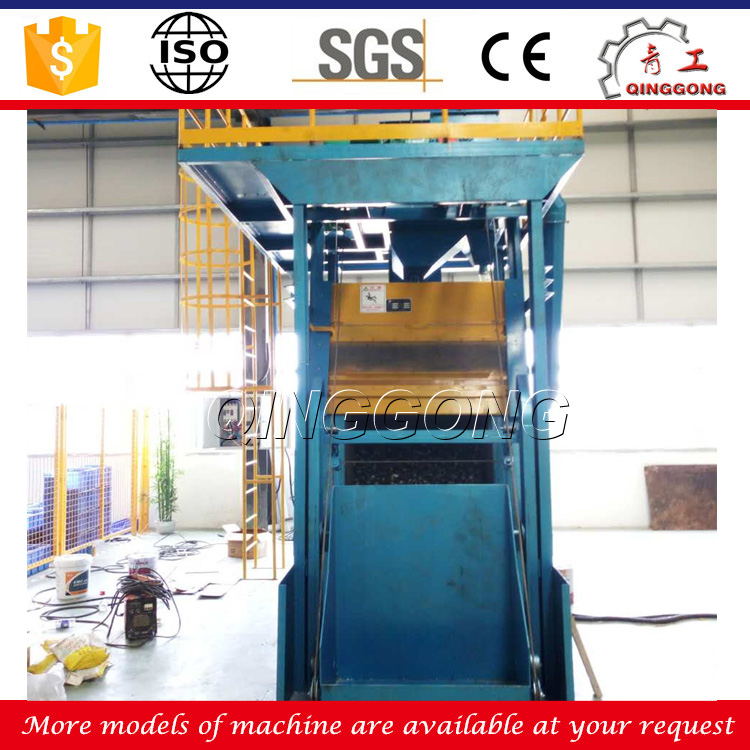

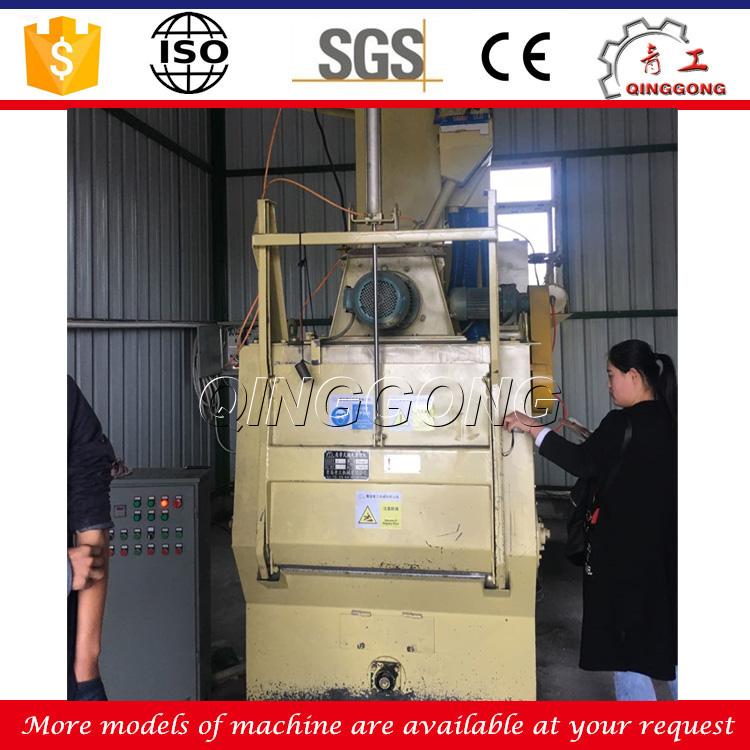

Tumble Belt Shot Blasting Machine

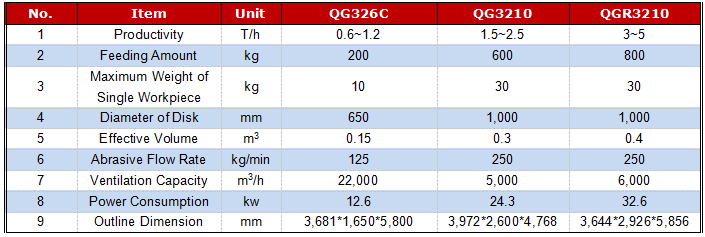

Main Technical Document
Information:

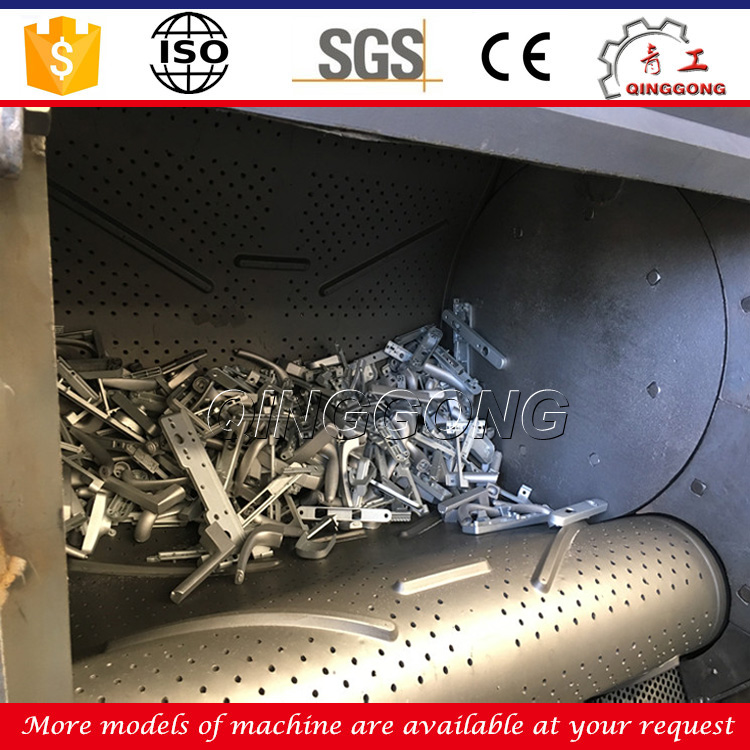

QG32 series tumble belt shot blasting machine is of low energy consumption and high efficiency. this machine adopts the endless rubber apron to form a special barrel, to make the work piece tumble continuously during peening process. Quickly rotary impeller throws steel grits to metal part surface for rust and impurities removal. It is mainly used in forging work piece and metal work. the machine can be used not only as a single machine, but also as a part of line.
Main Technical Document
Advantage:
No-pit, easy for install, move and save cost. Optional PLC control system, stable Quality and easy to get support from local.
Component key parts adopt world famous brand, such as Siemens, Omron, Schneider, Mitsubishi. the machine can be equipped with steel or rubber belt conveyor according to the requirements.
the impeller head is composed of blast wheel, the structure is simple and durable.
