| Conductor Material: | Copper |
|---|---|
| Application: | Industrial |
| Type: | Medium Voltage |
| Insulation Material: | Rubber |
| Brand Name: | BLADAR |
Quick Details
Specifications

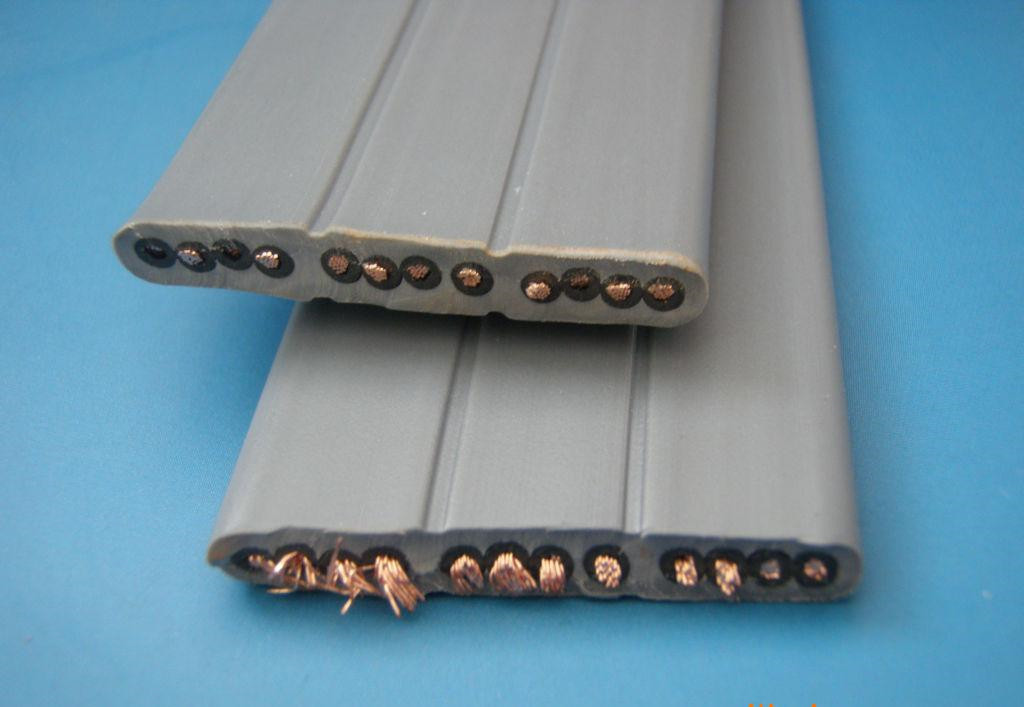

Rubber Flat Cable NGFLG?U
U0/U = 300/500V, 450/750V, 0.6/1kV
Application
Rubber flat cables mainly used as trailing for overhead crane installations, floor conveyor systems, elevator control cables, shelf control units and in material handling systems. the flat construction allows cables to be stacked for applications where space is at a minimum and require smaller bending radius over that of round cables. the rubber jacket is extensively oil, fat, acid, lye and weather resistant.
Standard
IEC 60245, GB/T 5013
Type |
Description |
YZWB |
Cu conductor EPR insulated PCP sheathed rubber flat cable |
Equivalent Type | |
NGFLG?U NGFLCG?U | |
Conductor: |
Annealed copper or Tinned copper |
Insulation: |
Ethylene Propylene Rubber (EPR) compound IE4 |
*Screen: |
Tinned copper wire braided |
Sheath: |
Polychloroprene/Neoprene Rubber (PCP) compound SE4 |
|
Rated Voltage: |
U0/U = 300/500V, 450/750V, 0.6/1kV |
|
Test Voltage: |
2000V, 2500V, 3500V |
|
Conductor Temperature: |
Max permissible temperature in continuous use +90 |
|
Min Bending Radius: |
4×? |
|
Core Identification: |
Color coded or number coded |
