| Conductor Material: | Copper |
|---|---|
| Application: | Industrial |
| Type: | Medium Voltage |
| Insulation Material: | Rubber |
| Brand Name: | BLADAR |
Quick Details
Specifications

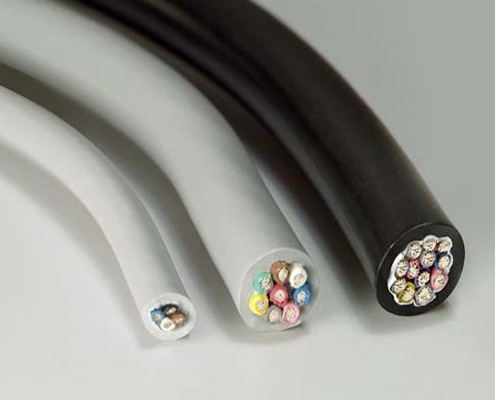

Rubber Reeling Cable NSHT?U
U0/U = 0.6/1kV
Application
Rubber Drum & Reeling Cables are designed for use whenever cable operations require frequent reeling and unreeling with simultaneous tensile and torsional stress. these trailing cables are used for high mechanical stress applications in building machinery, conveyor and transport systems, hoists and cranes. It's a robust and all weather resistant cable also found in rough mining operations, flexible handling equipment and in railway motors. these cables are suitable for outdoor installations in dry, damp or wet places, ozone and UV resistant.
Standard
VDE 0250
| NSHT?U |
| Conductor: | Tinned copper Round flexible conductor IEC 60228 Class 5 |
| Insulation: | Ethylene Propylene Rubber (EPR) compound IE4 |
| Reinforcement: | Textile tape wrapping embedded in inner filling serves as protection against torsion |
| Sheath: | Polychloroprene/Neoprene Rubber (PCP) compound SE4 |
| Rated Voltage: | U0/U = 0.6/1kV | |
| Test Voltage: | 3.5kV | |
| Conductor Temperature: Service Temperature: |
Max permissible temperature in continuous use +90 -40~+80 | |
| Min Bending Radius: Tensile Strength: |
10×? Max 20N/mm2 | |
| Core Identification: | 2 cores + earth (3G): Brown, Blue + Green/Yellow 3 cores + earth (4G): Brown, Blue, Black + Green/Yellow 4 cores + earth (5G): Brown, Blue, Black, Black + Green/Yellow |
