| Insulation Material: | Fiberglass |
|---|---|
| Conductor Material: | Copper |
| Application: | Heating |
| Type: | Insulated |
| Brand Name: | Relico Wire&Cable |
Quick Details
Specifications
Model Description

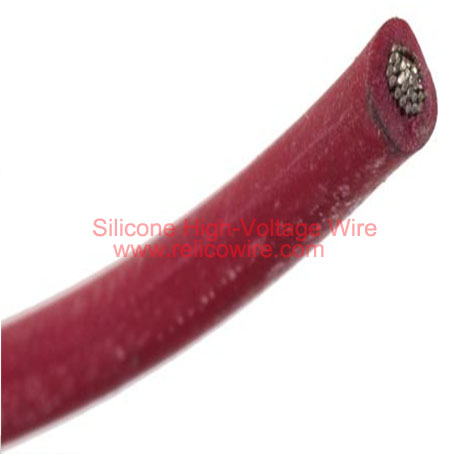

AGG:Silicone Rubber Insulated High Voltage Lead Wire&Cable
Specification and Construction Data
Part No. |
Conductor Sizemm2 |
Conductor Construction Roots/mm |
Insulation Thicknessmm |
Wire Diametermm |
Max Electric Resistance at20℃Ωkm |
AGG-5 |
0.2 |
12/0.15 |
0.9 |
2.7 |
95.0 |
0.5 |
28/0.15 |
1.0 |
3.2 |
40.1 | |
1.0 |
32/0.20 |
1.2 |
4.1 |
20.0 | |
AGG-10 |
0.2 |
12/0.15 |
1.1 |
3.1 |
95.0 |
0.5 |
28/0.15 |
1.2 |
3.6 |
40.1 | |
1.0 |
32/0.20 |
1.4 |
4.5 |
20.0 | |
AGG-15 |
0.2 |
12/0.15 |
1.4 |
3.8 |
95.0 |
0.5 |
28/0.15 |
1.5 |
4.3 |
40.1 | |
1.0 |
32/0.20 |
1.7 |
5.2 |
20.0 | |
AGG-20 |
0.2 |
12/0.15 |
1.8 |
4.6 |
95.0 |
0.5 |
28/0.15 |
1.9 |
5.2 |
40.1 | |
1.0 |
32/0.20 |
2.1 |
6.0 |
20.0 | |
AGG-25 |
0.2 |
12/0.15 |
2.3 |
5.7 |
95.0 |
0.5 |
28/0.15 |
2.4 |
6.3 |
40.1 | |
1.0 |
32/0.20 |
2.6 |
7.1 |
20.0 | |
AGG-30 |
0.2 |
12/0.15 |
2.9 |
7.1 |
95.0 |
0.5 |
28/0.15 |
3.0 |
7.6 |
40.1 | |
1.0 |
32/0.20 |
3.2 |
8.5 |
20.0 |
